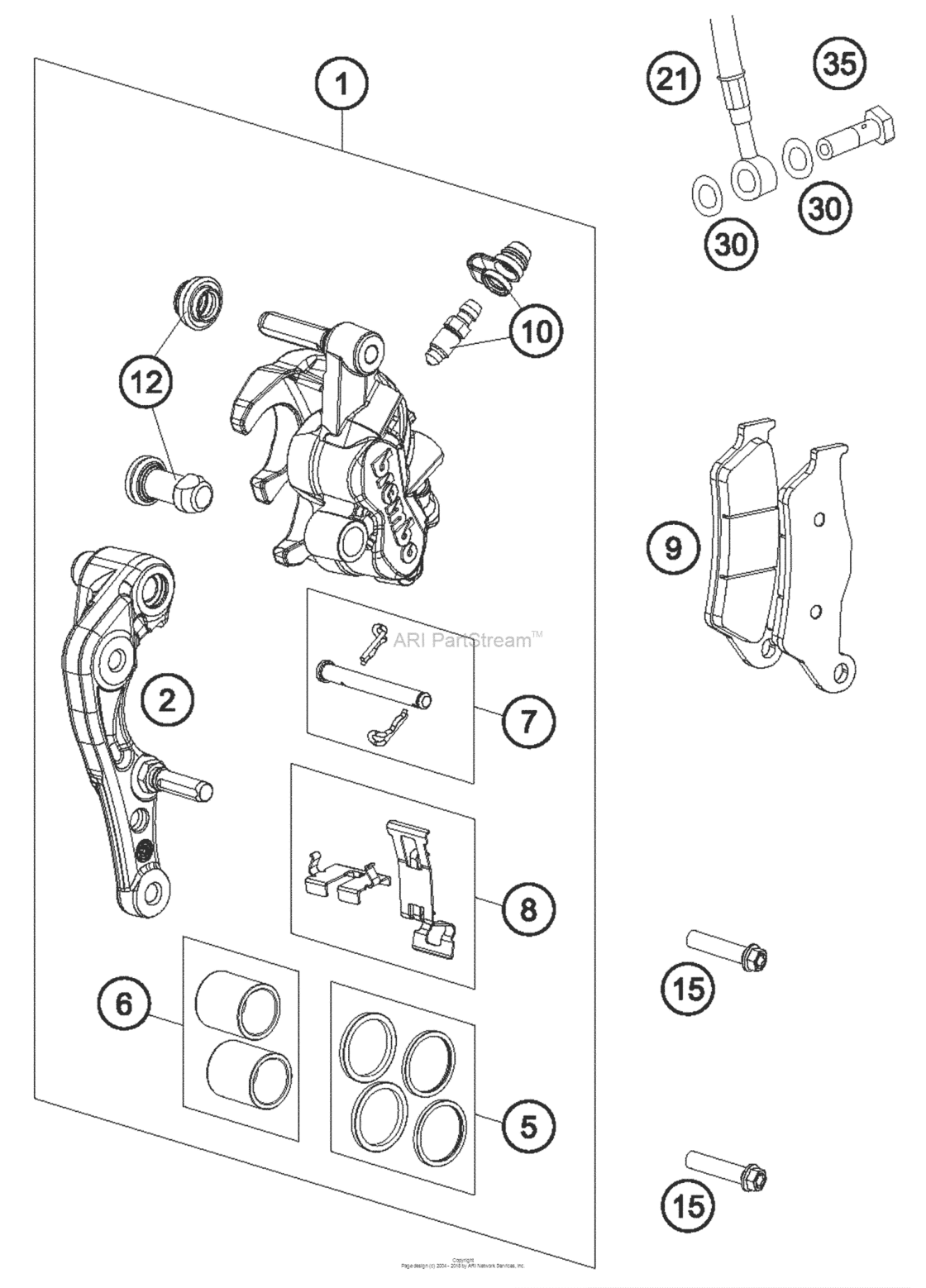

Break Caliper Front Diagram KTM 450 450 XC-W
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7701301500101 Caliper nat. without pads05 |
7701301500101 |
US $439.38 |
||
|
2
|
2
77013014000 Brake caliper support front 0909 |
77013014000 |
US $135.93 |
||
|
5
|
5
77013021000 Rep. kit seals 24mm09 |
77013021000 |
US $27.08 |
||
|
6
|
6
77013019000 Rep. kit piston 24mm09 |
77013019000 |
US $61.91 |
||
|
7
|
7
77013017000 Bolt cpl. 0909 |
77013017000 |
US $21.28 |
||
|
8
|
8
77013018000 Retaining plate set brembo09 |
77013018000 |
US $27.74 |
||
|
9
|
9
77713030000 Brake Pads Front09 |
77713030000 |
US $99.33 |
||
|
10
|
10
61013020100 Bleeder screw with cap09 |
61013020100 |
US $9.47 |
||
|
12
|
12
54613218000 Cup Set Short09 |
54613218000 |
US $25.72 |
||
| replacement | |||||
|
12
|
12
54613218100 CUP SET SHORT09 |
54613218100 |
US $25.72 |
||
|
15
|
15
0025080356S Hh Collar Screw M8X35 Tx40TX40 |
0025080356S |
US $2.72 |
||
|
21
|
21
59013011000 Brakeho. Front 1300Mm 20002000 |
59013011000 |
US $106.18 |
||
|
30
|
30
0603100141 Copper Gasket Din7603-10X14X12000 |
0603100141 |
US $2.24 |
||
|
35
|
35
50213025000 Hollow Screw M10X1X192000 |
50213025000 |
US $5.39 |
||
