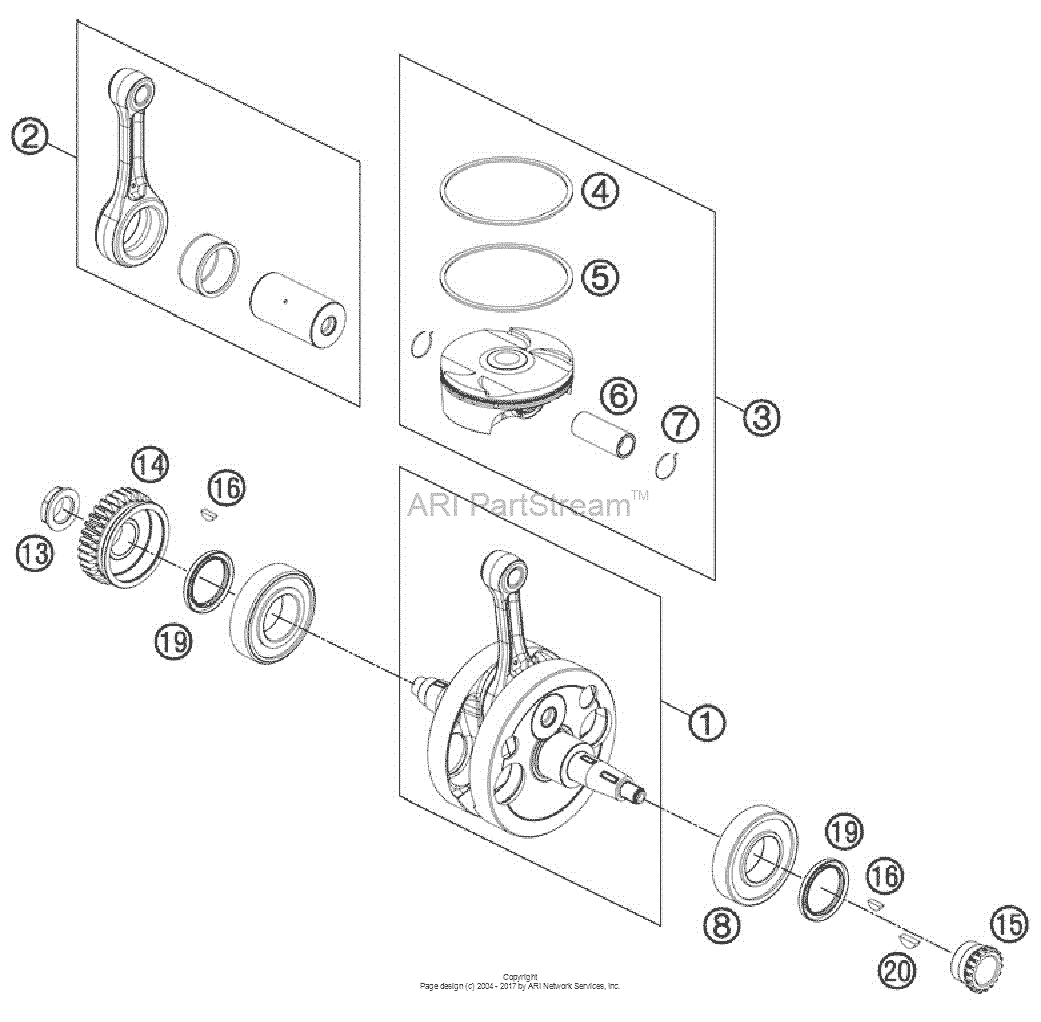

Crankshaft, Piston Diagram KTM 450 450 XC-W
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78130018000 Crankshaft Cpl2000 |
78130018000 |
US $821.46 |
||
|
2
|
2
78130015144
Conn. Rod Repair Kit 450
2012 |
78130015144 |
— | ||
|
3
|
3
78130007000I
Piston I D=95Mm
2012 |
78130007000I |
— | ||
|
3
|
3
78130007000II
Piston Ii D=95Mm
2012 |
78130007000II |
— | ||
|
4
|
4
78130030000 Compression Ring2012 |
78130030000 |
US $35.26 |
||
|
5
|
5
78130032000 Oil Scraper Ring2012 |
78130032000 |
US $35.26 |
||
|
6
|
6
78130033000 Piston Pin2012 |
78130033000 |
US $72.64 |
||
|
7
|
7
77330074000 Circlip2012 |
77330074000 |
US $13.04 |
||
|
8
|
8
0625062071 Ball bearing 6207 tm-sx07e 392012 |
0625062071 |
US $48.54 |
||
|
13
|
13
78030029200 Nut primary wheel m20x1,52012 |
78030029200 |
US $6.83 |
||
|
14
|
14
78132000032
Primary Gear
2012 |
78132000032 |
— | ||
|
15
|
15
78036014200 Timing gear 18t.2012 |
78036014200 |
US $28.66 |
||
|
16
|
16
0888030037 Woodruff key din6888-3x3,72012 |
0888030037 |
US $0.58 |
||
|
19
|
19
0760354774 Shaft seal ring 35x47x7 viton2012 |
0760354774 |
US $11.70 |
||
|
20
|
20
0888030050 Woodruff Key Din6888-3X5X132012 |
0888030050 |
US $2.60 |
