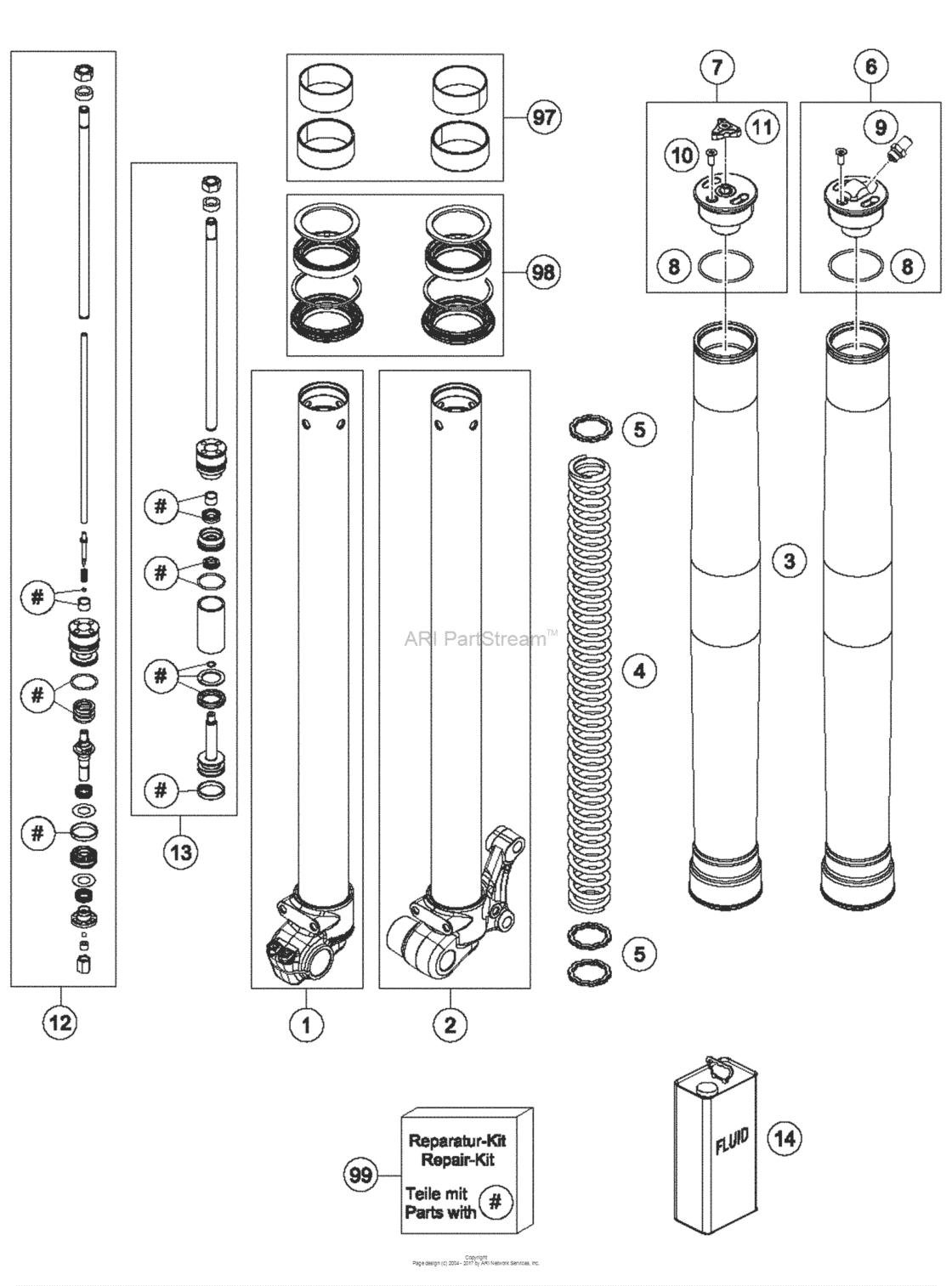

Front Fork Disassembled Diagram KTM 50 50 SX
- Year
- 2018
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35480455S3 Axle Clamp R/s Cpl. W. TubeTX40 |
35480455S3 |
US $350.05 |
||
|
2
|
2
35480456S2 Axle Clamp L/s Cpl. W. TubeTX40 |
35480456S2 |
US $350.05 |
||
|
3
|
3
35480556 Outer Tube L=425TX40 |
35480556 |
US $229.28 |
||
|
4
|
4
95010051S Spring 2.0N/mm Set D=3.1MmTX40 |
95010051S |
US $119.43 |
||
|
5
|
5
35480497 Washer 22X30X2.5TX40 |
35480497 |
US $1.28 |
||
|
6
|
6
35480548S Screw Cap M38X1,5 Air CplTX40 |
35480548S |
US $102.34 |
||
|
7
|
7
35480507S1 Screw Cap M38X1,5 Air ReboundTX40 |
35480507S1 |
US $102.34 |
||
|
8
|
8
46180581 O-Ring 35X1.5 Nbr70TX40 |
46180581 |
US $0.66 |
||
|
9
|
9
48601494S Valve M8X1 Incl. Screw CapTX40 |
48601494S |
US $52.39 |
||
|
10
|
10
600003 Counter Sunk Screw M4X10 TorxTX40 |
600003 |
US $1.28 |
||
|
11
|
11
48601118S Adjuster Reb. Red CplTX40 |
48601118S |
US $3.03 |
||
|
12
|
12
35480551S2 Piston Rod Sx 50 Cpl. RightTX40 |
35480551S2 |
US $447.42 |
||
|
13
|
13
35480551S3 Piston Rod Sx 50 Cpl. LeftTX40 |
35480551S3 |
US $447.42 |
||
|
14
|
14
48601166S1 Fork Oil Sae4 5LTX40 |
48601166S1 |
US $218.08 |
||
|
97
|
97
RP10006 Bushing Kit 35MmAs Required |
RP10006 |
US $56.58 |
||
|
98
|
98
RP10007 Gasket Kit 35Mm RedAs Required |
RP10007 |
US $107.90 |
||
|
99
|
99
RP10008 Repair Kit 50+65Sx AirAs Required, 2017 |
RP10008 |
US $52.33 |
