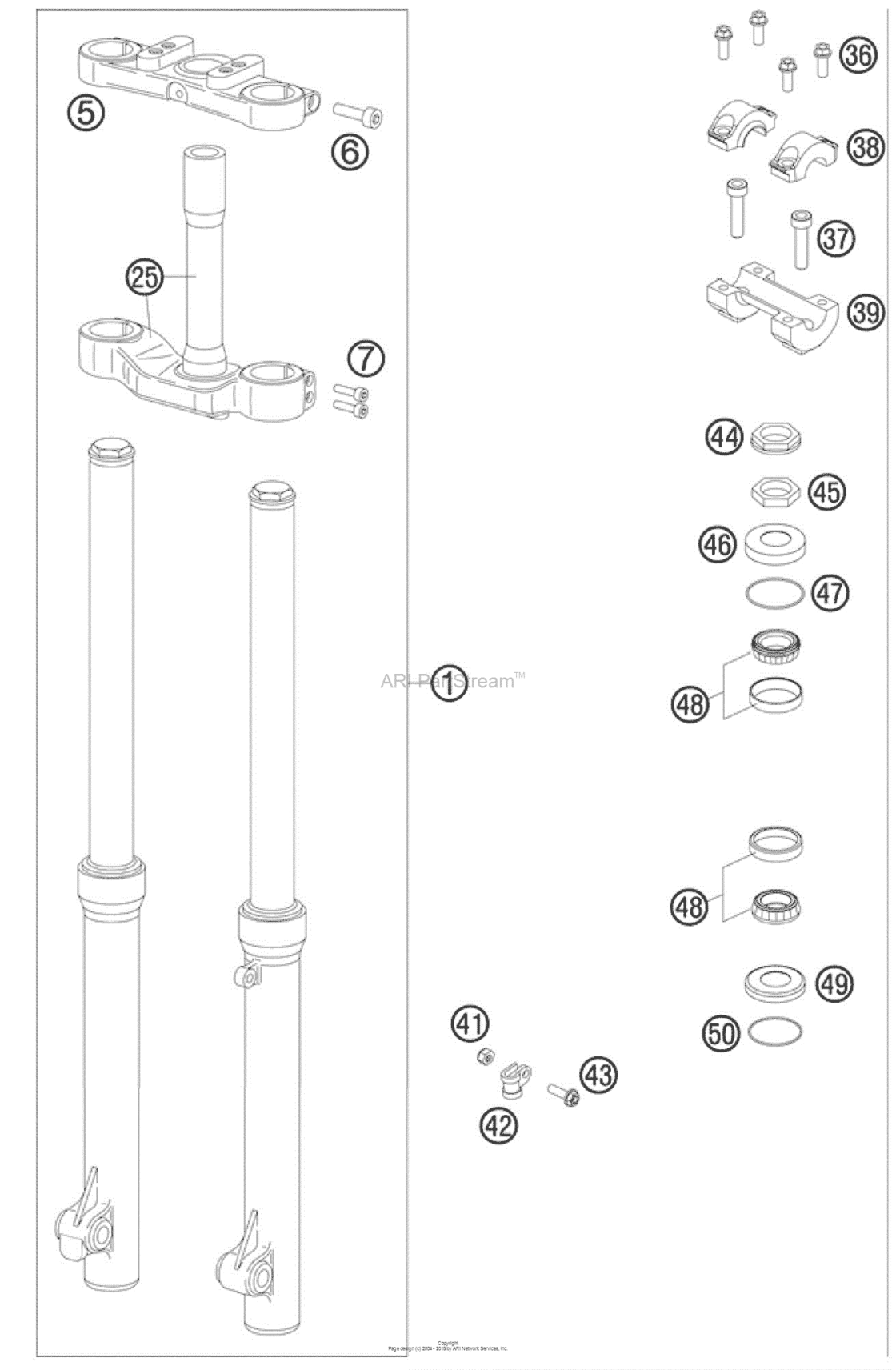

Front Fork, Triple Clamp Diagram KTM 50 50 SX
- Year
- 2011
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45101000644
Fork cpl. sx sen. marz. 2003
2003 |
45101000644 |
— | ||
|
5
|
5
7501498A Top fork plate 50 lc sen. 0303 |
7501498A |
US $152.13 |
||
|
6
|
6
0912080303 Ah Screw Din0912-M 8X3003 |
0912080303 |
US $1.50 |
||
|
7
|
7
0912060253 Ah Screw Din0912-M 6X2503 |
0912060253 |
US $1.79 |
||
|
25
|
25
77051264 Bottom trip. clamp cpl.03 |
77051264 |
US $380.99 |
||
|
36
|
36
0025080306 Hh collar screw m8x30 tx40TX40 |
0025080306 |
US $3.89 |
||
|
37
|
37
0912100250
Ah-Collar Screw M10X25 Isa45
TX40 |
0912100250 |
— | ||
| replacement | |||||
|
37
|
37
0032100256S Ah-collar screw m10x25 isa45TX40 |
0032100256S |
US $5.12 |
||
|
38
|
38
50301038000 Handlebar clamp d=22mm 20012001 |
50301038000 |
US $21.54 |
||
|
39
|
39
45101039000 Handlebar support d=22mm 20012001 |
45101039000 |
US $55.93 |
||
|
41
|
41
0985050003 Self Locking Nut Din0985-M 52001 |
0985050003 |
US $3.26 |
||
|
42
|
42
45001070000 Brake cable clamp rsgu 9/122001 |
45001070000 |
US $4.10 |
||
|
43
|
43
0025050206 Hh collar screw m5x20 tx30TX30 |
0025050206 |
US $1.33 |
||
|
44
|
44
59030029000 Hh nut m20x1,5 ws=27 rightTX30 |
59030029000 |
US $7.62 |
||
|
45
|
45
46001043000 Steering head nut m20x1,5TX30 |
46001043000 |
US $7.11 |
||
|
46
|
46
49001086000 Covering capTX30 |
49001086000 |
US $6.10 |
||
|
47
|
47
0770021300 O-ring 40,94x2,62 nbr70TX30 |
0770021300 |
US $2.31 |
||
|
48
|
48
49001081000 Tapered roller bearing 32004xTX30 |
49001081000 |
US $38.74 |
||
|
49
|
49
46001086000 Protection ring 20,1x39x5TX30 |
46001086000 |
US $8.52 |
||
|
50
|
50
0770360030 O-ring 36,00x3,00 nbrTX30 |
0770360030 |
US $1.60 |
||
