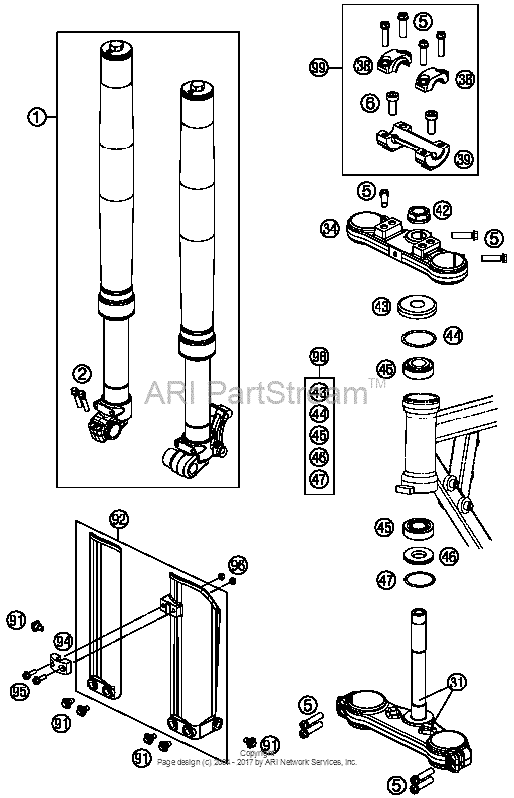

Front Fork, Triple Clamp Diagram KTM 50 50 SX
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
07181L0301 Fork Usd 50SxTX30 |
07181L0301 |
US $995.25 |
||
|
2
|
2
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
5
|
5
0025080306 Hh collar screw m8x30 tx40TX40 |
0025080306 |
US $3.89 |
||
|
6
|
6
0032100256S Ah-collar screw m10x25 isa45TX40 |
0032100256S |
US $5.12 |
||
|
31
|
31
45201032022 Bot. Triple Clamp CplTX40 |
45201032022 |
US $200.45 |
||
|
34
|
34
45201034022 Top Triple ClampTX40 |
45201034022 |
US $135.93 |
||
|
38
|
38
50301038000 Handlebar clamp d=22mm 2001TX40 |
50301038000 |
US $21.54 |
||
|
39
|
39
45201039000 Handlebar Support 50Sx D=22MmTX40 |
45201039000 |
US $63.41 |
||
|
42
|
42
59030029000 Hh nut m20x1,5 ws=27 rightTX40 |
59030029000 |
US $7.62 |
||
|
43
|
43
49001086000 Covering capTX40 |
49001086000 |
US $6.10 |
||
|
44
|
44
0770049025 O-ring 49,00x2,50 nbrTX40 |
0770049025 |
US $2.98 |
||
|
45
|
45
49001081000 Tapered roller bearing 32004xTX40 |
49001081000 |
US $38.74 |
||
|
46
|
46
46001086000 Protection ring 20,1x39x5TX40 |
46001086000 |
US $8.52 |
||
|
47
|
47
0770360030 O-ring 36,00x3,00 nbrTX40 |
0770360030 |
US $1.60 |
||
|
91
|
91
59001092050 Special Screw M6X12,5 Ws=8TX40 |
59001092050 |
US $2.35 |
||
|
92
|
92
4610109400028 Fork protector set 65 sx whiteTX40 |
4610109400028 |
US $26.86 |
||
|
94
|
94
5460108500028 Brake hose clipTX40 |
5460108500028 |
US $2.87 |
||
|
95
|
95
0025050166 Hh collar screw m5x16 tx30TX30 |
0025050166 |
US $2.60 |
||
|
96
|
96
0985050003 Self Locking Nut Din0985-M 5TX30 |
0985050003 |
US $3.26 |
||
|
98
|
98
00050000931 Stearing Head Rep. Kit MiniAs Required |
00050000931 |
US $108.83 |
||
|
99
|
99
00050000925 Handlebar Support Kit 50Sx '12'12 |
00050000925 |
US $81.33 |
