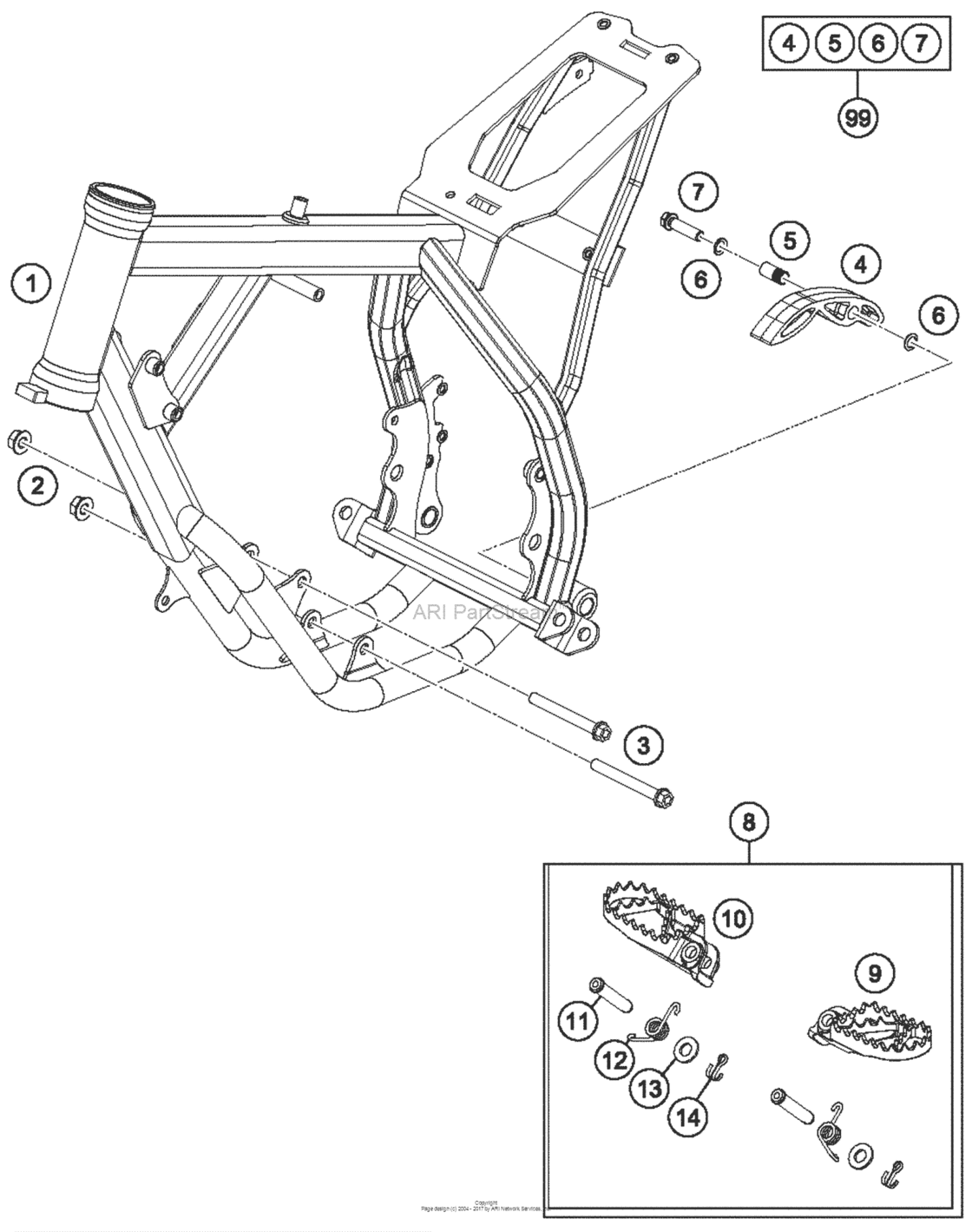

Frame Diagram KTM 50 50 SX

Year
2016
Sales region
US/EU
Engine Capacity
50
Model
50 SX

Difficulties in parts search?

Parts list
Frame

Difficulties in parts search?

Frame
Description OEM Part # Price
1
1

4530300100033

Frame 453P3

2002

4530300100033

US $1,076.22

2
2

54310086200

Self Locking Nut M8 10.9

2002

54310086200

US $1.56

3
3

0025080656

Hh collar screw m8x65 tx40

TX40

0025080656

US $3.26

4
4

51103053000

Chain sliding piece below '97

'97

51103053000

US $13.24

5
5

51103053051

Bushing 8,2x10x20

'97

51103053051

US $3.06

6
6

36003014000

Lock washer 8mm

'97

36003014000

US $0.46

7
7

0025080306

Hh collar screw m8x30 tx40

TX40

0025080306

US $3.89

8
8

47103040033

Footrest Cpl. 14

TX40

47103040033

US $113.41

9
9

47103040000

Footrest L/s

TX40

47103040000

US $44.56

10
10

47103041000

Footrest R/s

TX40

47103041000

US $43.49

11
11

54803044000

Pin For Foot Ped 51.5X9.8 Mm

TX40

54803044000

US $10.98

12
12

54603041000

Footrest Spring L/s & R/s

TX40

54603041000

US $3.52

13
13

0125100003

Washer Din0125-A10,5

TX40

0125100003

US $1.19

14
14

0094032253

Pin din0094-3,2x25 steel

TX40

0094032253

US $1.12

replacement
14
14

0094032250

Pin din0094-3,2x25 steel

TX40

0094032250

US $1.12

99
99

51103053110

Chain Sliding Kit Below Mini

TX40

51103053110

US $16.47

Frame Diagram KTM 50 50 SX US/EU 18096660-940209
