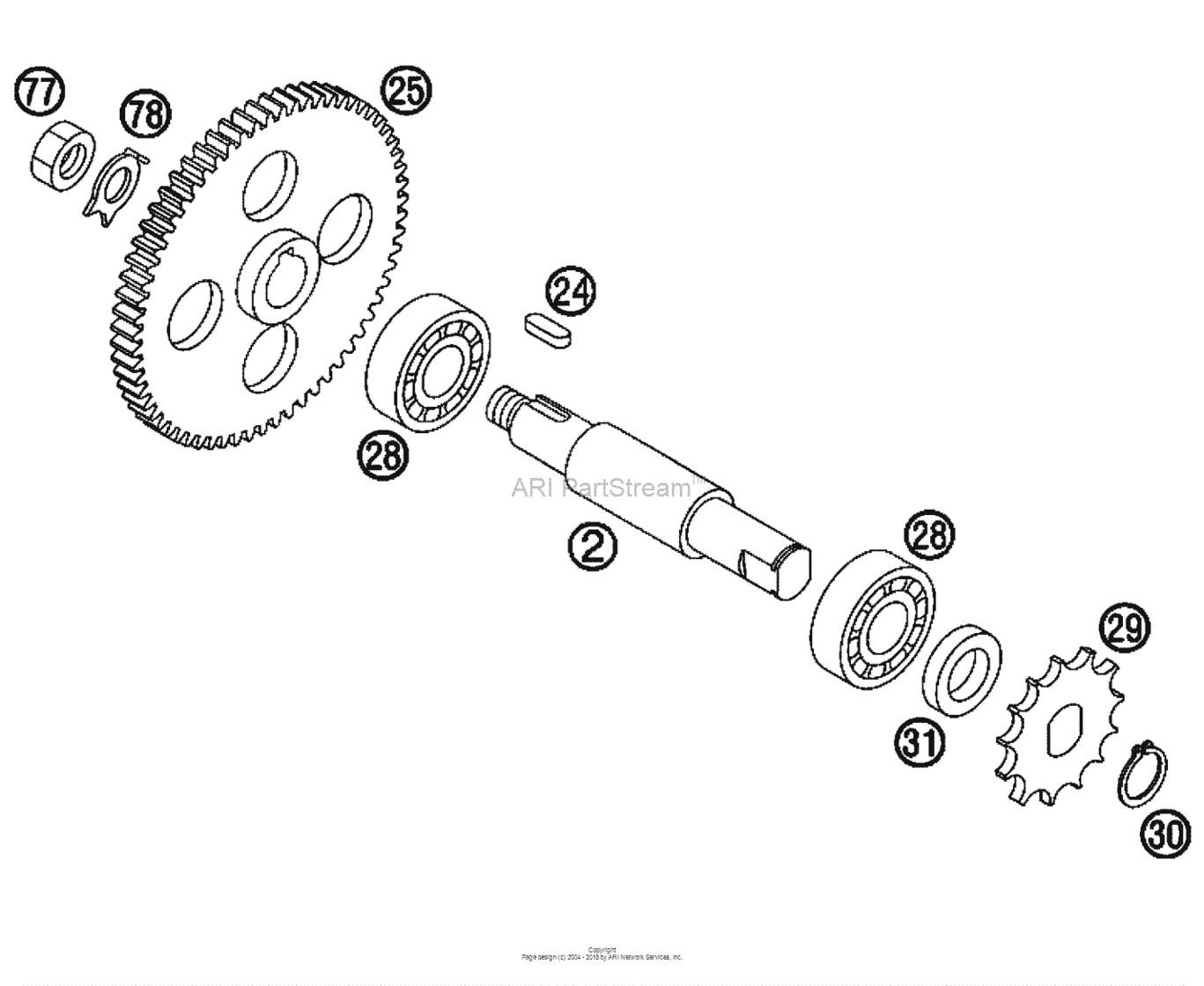

Transmision Diagram KTM 50 50 SX
- Year
- 2008
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
45133002000 Counter shaft 50ccm lc 20012001 |
45133002000 |
US $71.76 |
||
|
24
|
24
45133024000 Woodruff key 5x5x122001 |
45133024000 |
US $2.84 |
||
|
25
|
25
45132024057
Primary gear 57-t
2001 |
45132024057 |
— | ||
|
28
|
28
45133028000 Ball bearing 15x35x112001 |
45133028000 |
US $22.92 |
||
|
29
|
29
45133029009 Sprocket 9-t 50 lc 20012001;(As required) |
45133029009 |
US $21.73 |
||
|
29
|
29
45133029010 Sprocket 10-t 50 lc 20012001 |
45133029010 |
US $22.90 |
||
|
29
|
29
45133029011 Sprocket 11-t 50 lc 20012001;(As required) |
45133029011 |
US $21.73 |
||
|
29
|
29
45133029012 Sprocket 12-t 50 lc 20012001;(As required) |
45133029012 |
US $21.73 |
||
|
29
|
29
45133029013 Sprocket 13-t 50 lc 20012001;(As required) |
45133029013 |
US $21.73 |
||
|
30
|
30
0471150010 Circlip din0471-15x12001;(As required) |
0471150010 |
US $2.60 |
||
|
31
|
31
45133031000 Oil seal ring 15x24x52001;(As required) |
45133031000 |
US $4.73 |
||
|
77
|
77
46030029000 Hh nut 14x1,25x7 ws=22WS=22 |
46030029000 |
US $9.57 |
||
|
78
|
78
46030078000 Locking plate d=14mmD=14MM |
46030078000 |
US $3.15 |
