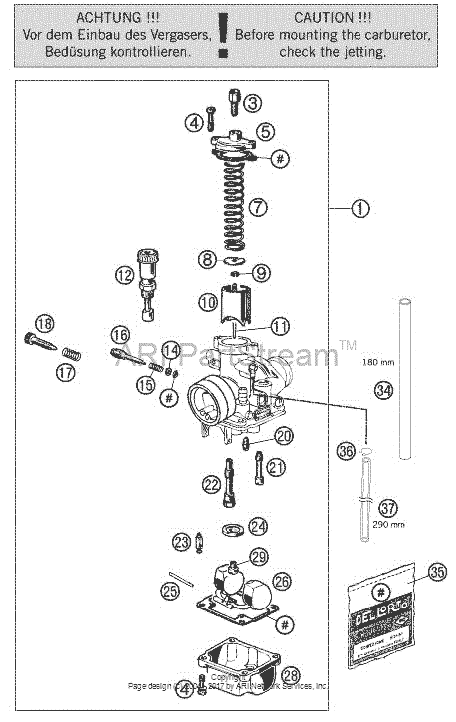

Carburetor Diagram KTM 50 50 SX
- Year
- 2016
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45131001100
Carbur. dello. phbg 19 bs 2001
2001 |
45131001100 |
— | ||
| replacement | |||||
|
1
|
1
45231001200 CARBURATOR DELLORTO PHBG 19BS2001 |
45231001200 |
US $344.45 |
||
|
3
|
3
57031525000 Adjustment screw m6x0,752001 |
57031525000 |
US $4.47 |
||
|
4
|
4
0016040163 Hh collar screw m 4x16 ws=62001 |
0016040163 |
US $0.66 |
||
| replacement | |||||
|
4
|
4
0016040133 Hh collar screw m 4x13 ws=62001 |
0016040133 |
US $0.53 |
||
|
5
|
5
45131027000 Carburetor cover dellorto 192001 |
45131027000 |
US $4.08 |
||
|
7
|
7
45131030000 Spring dellorto2001 |
45131030000 |
US $1.96 |
||
|
8
|
8
45131109000 Retaining spring dellorto2001 |
45131109000 |
US $2.14 |
||
|
9
|
9
0799025055 Tab Washer Din6799-Rs 2,52001 |
0799025055 |
US $2.24 |
||
|
10
|
10
45131035000 Thr. valve dello.19 60 20012001, As Required |
45131035000 |
US $38.47 |
||
|
10
|
10
45131035040 Thr. valve dello.40 20082008, As Required |
45131035040 |
US $30.48 |
||
|
11
|
11
45131034007 Jet Needle W72008, As Required |
45131034007 |
US $17.99 |
||
|
11
|
11
45131034009 Jet needle w9As Required |
45131034009 |
US $17.99 |
||
|
12
|
12
45131048000 Starting button dellorto 19As Required |
45131048000 |
US $43.96 |
||
|
14
|
14
57031572000 Washer 3,3 x 5,8 x 0,5As Required |
57031572000 |
US $1.63 |
||
|
15
|
15
45131015000 Spring dellortoAs Required |
45131015000 |
US $1.29 |
||
|
16
|
16
45131017000 Air adjust screw dellortoAs Required |
45131017000 |
US $5.93 |
||
|
17
|
17
45131518000 SpringAs Required |
45131518000 |
US $2.94 |
||
|
18
|
18
45131019000 Idle adjust screwAs Required |
45131019000 |
US $5.93 |
||
|
20
|
20
45131007045 Idling jet 45 dellortoAs Required |
45131007045 |
US $6.09 |
||
|
20
|
20
45131007048 Idling jet 48 dellortoAs Required |
45131007048 |
US $6.09 |
||
|
20
|
20
45131007050 Idling jet 50 dellortoAs Required |
45131007050 |
US $6.09 |
||
|
20
|
20
45131007052 Idling jet 52 dellortoAs Required |
45131007052 |
US $6.09 |
||
|
20
|
20
45131007055 Idling jet 55 dellortoAs Required |
45131007055 |
US $6.09 |
||
|
20
|
20
45131007058 Idling Jet 58 DellortoAs Required |
45131007058 |
US $6.09 |
||
|
21
|
21
45131051060 Start jet 60 dellortoAs Required |
45131051060 |
US $9.33 |
||
|
22
|
22
45131021260 Needle jet 260As Required |
45131021260 |
US $21.76 |
||
|
22
|
22
45131021262 Needle jet 262As Required |
45131021262 |
US $16.41 |
||
|
23
|
23
45131020000 Floating needle valve dellortoAs Required |
45131020000 |
US $7.31 |
||
|
24
|
24
45131074000 Cover dellortoAs Required |
45131074000 |
US $3.94 |
||
|
25
|
25
45131008000 Pin dellortoAs Required |
45131008000 |
US $1.60 |
||
|
26
|
26
45131009000 Float 4 gr.As Required |
45131009000 |
US $57.38 |
||
|
28
|
28
45131011000 Float bowl dellorto 19As Required |
45131011000 |
US $7.31 |
||
|
29
|
29
15131123080 Main jet 80 dellortoAs Required |
15131123080 |
US $5.30 |
||
|
29
|
29
15131123085 Main jet 85 dellortoAs Required |
15131123085 |
US $4.52 |
||
|
29
|
29
15131123090 Main jet 90 dellortoAs Required |
15131123090 |
US $5.30 |
||
|
29
|
29
15131123095 Main Jet 95 DellortoAs Required |
15131123095 |
US $7.09 |
||
|
34
|
34
58307016001 Fuel hose viton 6x1,5 per/mAs Required |
58307016001 |
US $36.94 |
||
|
35
|
35
45131099000 Gasket set dellorto 19As Required |
45131099000 |
US $18.45 |
||
|
36
|
36
54531696000 Clamp 6 mmAs Required |
54531696000 |
US $2.11 |
||
|
37
|
37
31007007101 Pvc-hose 4x6mmAs Required |
31007007101 |
US $2.38 |
||
