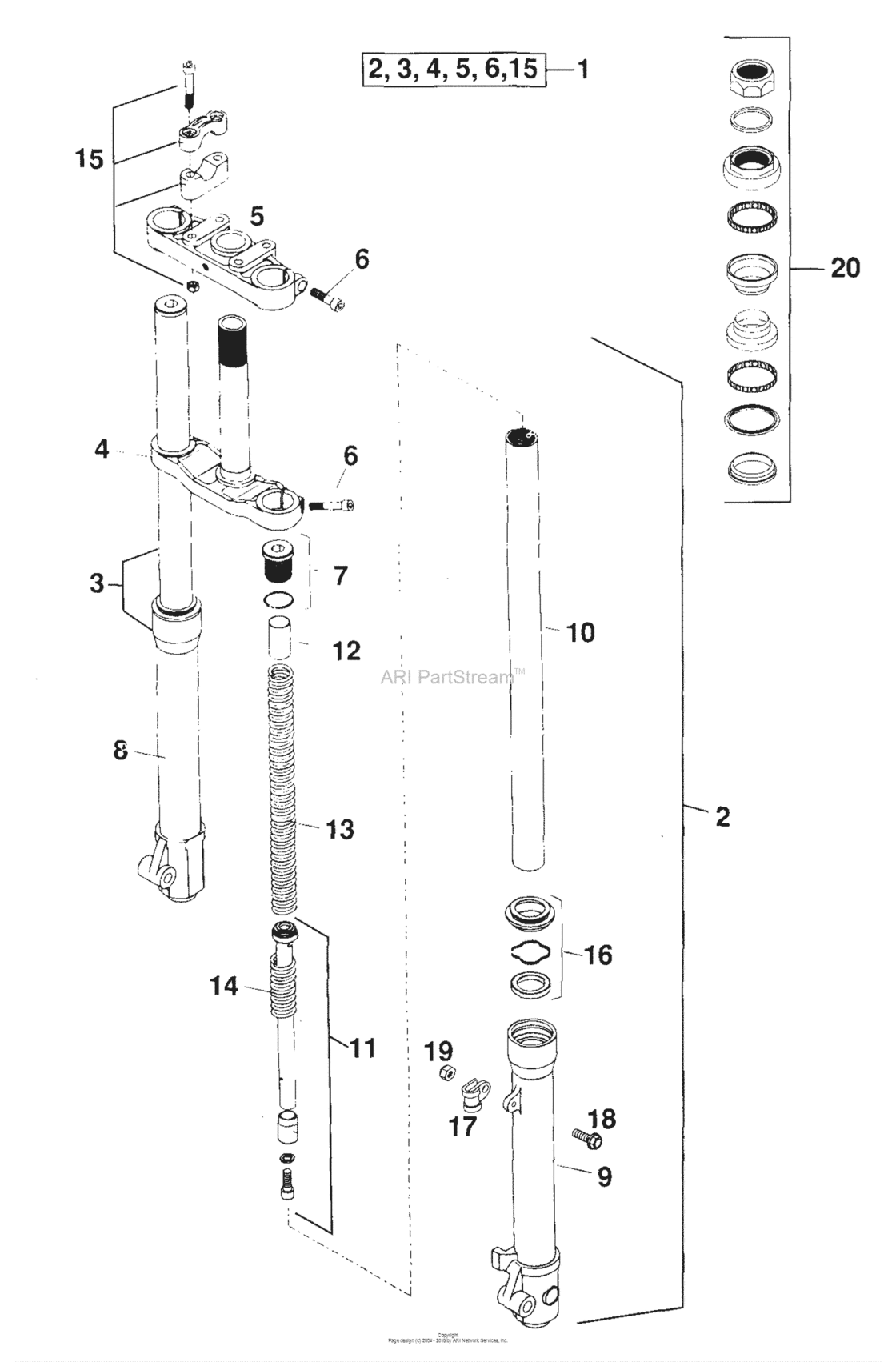

Front Fork Diagram KTM 50 50 SX Junior
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX Junior
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45001000144
Fork cpl. 32mm pro junior '97
TX30 |
45001000144 |
— | ||
|
2
|
2
45001001100 Fork leg l/s cpl.TX30 |
45001001100 |
US $374.24 |
||
|
3
|
3
45001002100
Fork leg r/s cpl.
TX30 |
45001002100 |
— | ||
|
4
|
4
45001032014
Bot.fork plate cpl.
TX30 |
45001032014 |
— | ||
|
5
|
5
45001034014
Top fork plate
TX30 |
45001034014 |
— | ||
|
6
|
6
0912080303 Ah Screw Din0912-M 8X30TX30 |
0912080303 |
US $1.50 |
||
|
7
|
7
45001008000
Screw cap cpl.
TX30 |
45001008000 |
— | ||
|
8
|
8
45001005100
Slider r/s
TX30 |
45001005100 |
— | ||
|
9
|
9
45001004100
Slider l/s
TX30 |
45001004100 |
— | ||
|
10
|
10
45001003100
Fork tube d=32 mm
TX30 |
45001003100 |
— | ||
|
11
|
11
45001010100
Repair kit cpl.
TX30 |
45001010100 |
— | ||
|
12
|
12
45001022100
Preload bush l=20 mm
TX30 |
45001022100 |
— | ||
|
13
|
13
45001021000
Spring
TX30 |
45001021000 |
— | ||
|
14
|
14
45001050000
Spring
TX30 |
45001050000 |
— | ||
|
15
|
15
45001038044
Handlebar clamp cpl.
TX30 |
45001038044 |
— | ||
|
16
|
16
45001014000
Seal kit
TX30 |
45001014000 |
— | ||
|
17
|
17
45001070000 Brake cable clamp rsgu 9/12TX30 |
45001070000 |
US $4.10 |
||
|
18
|
18
0015050163 Hh Collar Screw M 5X16 Ws=8TX30 |
0015050163 |
US $1.31 |
||
|
19
|
19
0985050003 Self Locking Nut Din0985-M 5TX30 |
0985050003 |
US $3.26 |
||
|
20
|
20
45001081000 Steering stem bearings 50 sxrTX30 |
45001081000 |
US $18.67 |
