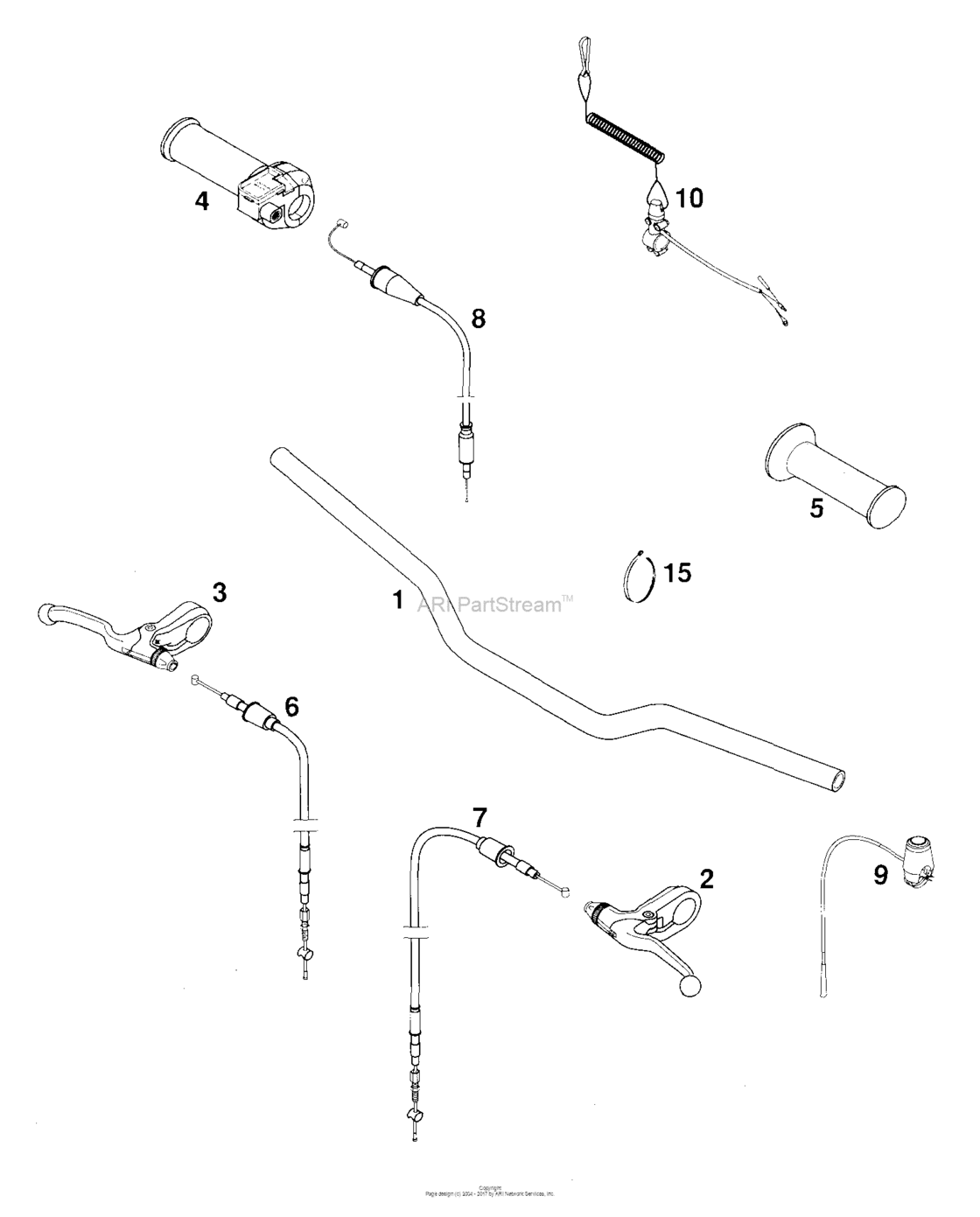

Handlebar, Controls Diagram KTM 50 50 SX Junior
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX Junior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45002001000
Handlebar 50 Ac+Lc 2005
TX30 |
45002001000 |
— | ||
| replacement | |||||
|
1
|
1
45102001000 Handlebar 50 ac+lc 2005TX30 |
45102001000 |
US $42.01 |
||
|
2
|
2
45002040044
Clutch Lever Cpl. 60/65 Sx '99
TX30 |
45002040044 |
— | ||
| replacement | |||||
|
2
|
2
46002040100 Clutch lever cpl. 60/65 sx '99TX30 |
46002040100 |
US $45.82 |
||
|
3
|
3
45013001044
Hand Brake Lever Cpl. R/s 2001
TX30 |
45013001044 |
— | ||
| replacement | |||||
|
3
|
3
45113001044 Hand brake lever cpl. r/s 2001TX30 |
45113001044 |
US $34.36 |
||
|
4
|
4
45002010000 Twist grip cpl. 50 sxrTX30 |
45002010000 |
US $55.40 |
||
|
5
|
5
45002039000
Gripp Set
TX30 |
45002039000 |
— | ||
| replacement | |||||
|
5
|
5
45002021000 Gripp setTX30 |
45002021000 |
US $23.31 |
||
|
6
|
6
45013010000 Brake cable fr. 50 sxr adv/junTX30 |
45013010000 |
US $52.38 |
||
|
6
|
6
45013010100 Brake cable fr. 50 sxr pro senTX30 |
45013010100 |
US $54.11 |
||
|
7
|
7
45013070000
Brake cable rear 50sxr adv/jun
TX30 |
45013070000 |
— | ||
|
7
|
7
45013070100 Brake cable rear 50sxr pro senTX30 |
45013070100 |
US $55.54 |
||
|
8
|
8
45002091000 Throttle cable adv./dell ortoTX30 |
45002091000 |
US $15.39 |
||
|
8
|
8
45002091300
Throt.cable pro junior/senior
TX30 |
45002091300 |
— | ||
|
9
|
9
50311089100 Short Circuit Button 02TX30 |
50311089100 |
US $36.65 |
||
| replacement | |||||
|
9
|
9
50311089200 Short Circuit Button 02TX30 |
50311089200 |
US $50.97 |
||
|
10
|
10
45011089044
S.circuit button w. rip cord
TX30 |
45011089044 |
— | ||
|
15
|
15
44011076200 Cable tie 200/3,6mm blackTX30 |
44011076200 |
US $0.39 |
||
|
15
|
15
44011076100 Cable tie 100/2,5mm blackTX30 |
44011076100 |
US $0.39 |
||
| replacement | |||||
|
15
|
15
44011076140 Cable tie 140/2,5mm blackTX30 |
44011076140 |
US $0.29 |
||
