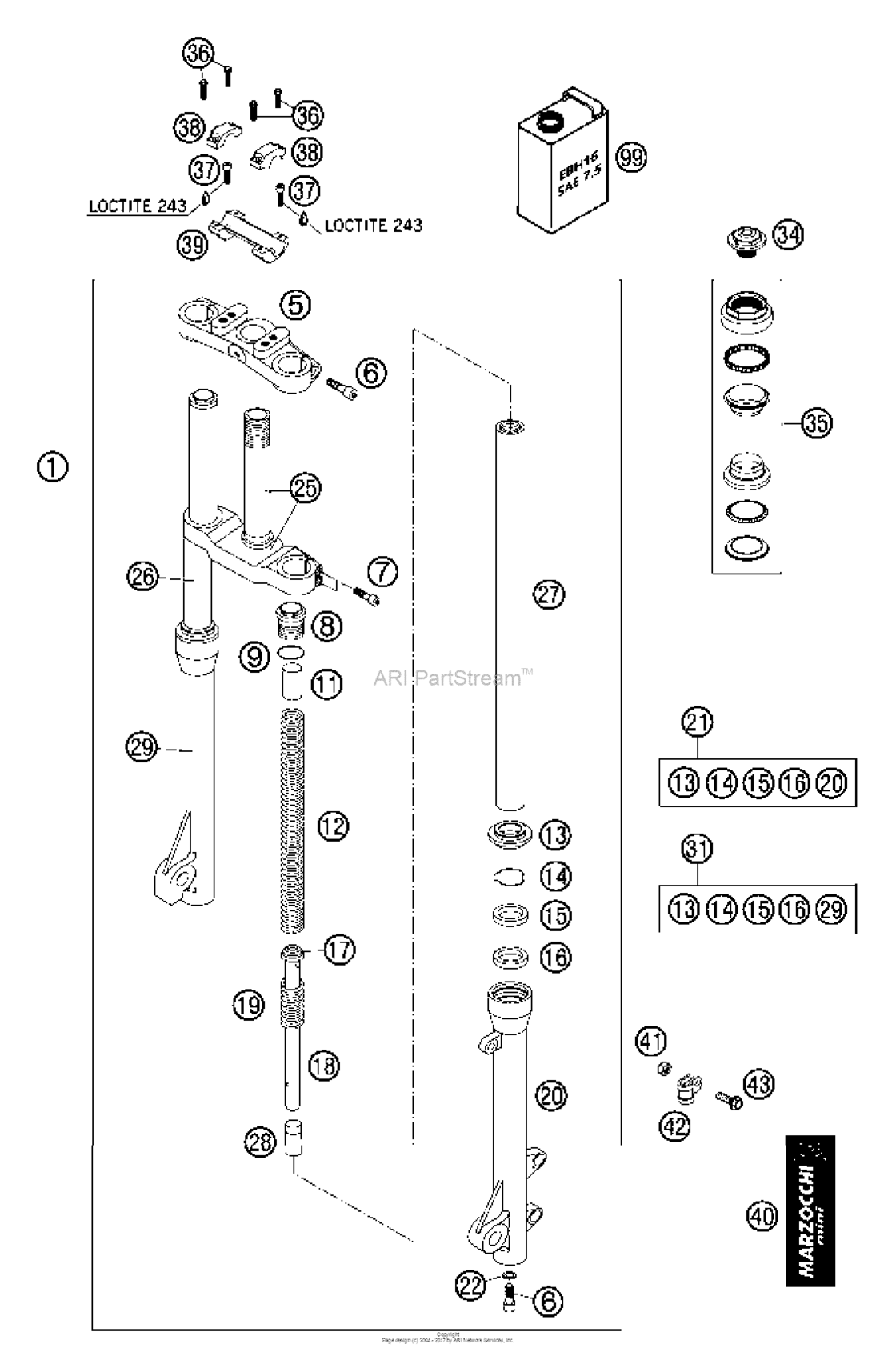

Front Fork Diagram KTM 50 50 SX Junior
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX Junior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45101000444
Fork cpl. sx jun marz. 2002
TX30 |
45101000444 |
— | ||
|
5
|
5
7501476A
Top fork plate
TX30 |
7501476A |
— | ||
|
6
|
6
0912080303 Ah Screw Din0912-M 8X30TX30 |
0912080303 |
US $1.50 |
||
|
7
|
7
0912060253 Ah Screw Din0912-M 6X25TX30 |
0912060253 |
US $1.79 |
||
|
8
|
8
7504212AC Plug capTX30 |
7504212AC |
US $42.40 |
||
|
9
|
9
7528010 O-ringTX30 |
7528010 |
US $1.09 |
||
|
11
|
11
7518031
Pre load bush l=55mm 2002
TX30 |
7518031 |
— | ||
|
12
|
12
75141169
Spring 2n/mm
TX30 |
75141169 |
— | ||
|
12
|
12
75141214 Spring 2,5n/mmTX30 |
75141214 |
US $14.59 |
||
|
13
|
13
7533297 Dust sealTX30 |
7533297 |
US $32.23 |
||
|
14
|
14
7523264 Stop ringTX30 |
7523264 |
US $5.08 |
||
|
15
|
15
7528230 Oil seal 32/42/6,5-9,5TX30 |
7528230 |
US $17.80 |
||
|
16
|
16
7522166AA
Washer d42x32,5x1,5
TX30 |
7522166AA |
— | ||
|
17
|
17
7524157 Piston ring d32TX30 |
7524157 |
US $2.98 |
||
|
18
|
18
7803936A
Piston rod rebound junior 02
TX30 |
7803936A |
— | ||
|
18
|
18
7803938A
Piston rod compression jun. 02
TX30 |
7803938A |
— | ||
|
19
|
19
75141015
Rebound spring
TX30 |
75141015 |
— | ||
|
20
|
20
75031570A
Slider l/s 50 lc 2002
TX30 |
75031570A |
— | ||
|
21
|
21
75031570AR
Slider cpl. l/s 50lc 2002
TX30 |
75031570AR |
— | ||
|
22
|
22
7522225 Washer 14x8x1,5TX30 |
7522225 |
US $0.71 |
||
|
25
|
25
77051124
Bot. fork plate cpl. mini/jun
TX30 |
77051124 |
— | ||
|
26
|
26
7708247R
Fork tube r/s mini/jun. 02
TX30 |
7708247R |
— | ||
|
27
|
27
7708248R
Fork tube l/s mini/jun. 02
TX30 |
7708248R |
— | ||
|
28
|
28
7512068
Foot buffer
TX30 |
7512068 |
— | ||
|
29
|
29
75031571A Slider r/s 50 lc 2002TX30 |
75031571A |
US $224.28 |
||
|
31
|
31
75031571AR
Slider cpl. r/s 50lc 2002
TX30 |
75031571AR |
— | ||
|
34
|
34
50301036000 Steer.head screw m20x1,5 ws=27TX30 |
50301036000 |
US $12.65 |
||
|
35
|
35
45101081100 Steer.stem B. Cpl. 50 SxrTX30 |
45101081100 |
US $27.91 |
||
| replacement | |||||
|
35
|
35
45101081200
Steer.stem b. cpl. 50 sxr 2006
TX30 |
45101081200 |
— | ||
|
36
|
36
0015080303
Hh Collar Screw M8X30 Tx40
TX30 |
0015080303 |
— | ||
| replacement | |||||
|
36
|
36
0025080306 Hh collar screw m8x30 tx40TX30 |
0025080306 |
US $3.89 |
||
|
37
|
37
0912100250
Ah-Collar Screw M10X25 Isa45
TX30 |
0912100250 |
— | ||
| replacement | |||||
|
37
|
37
0032100256S Ah-collar screw m10x25 isa45TX30 |
0032100256S |
US $5.12 |
||
|
38
|
38
50301038000 Handlebar clamp d=22mm 2001TX30 |
50301038000 |
US $21.54 |
||
|
39
|
39
45101039000 Handlebar support d=22mm 2001TX30 |
45101039000 |
US $55.93 |
||
|
40
|
40
7547325
Sticker left side marzocchi
TX30 |
7547325 |
— | ||
|
40
|
40
7547331 Sticker right side marzocchiTX30 |
7547331 |
US $15.42 |
||
|
41
|
41
0985050003 Self Locking Nut Din0985-M 5TX30 |
0985050003 |
US $3.26 |
||
|
42
|
42
45001070000 Brake cable clamp rsgu 9/12TX30 |
45001070000 |
US $4.10 |
||
|
43
|
43
0015050203
Hh Collar Screw M5X20 Tx30
TX30 |
0015050203 |
— | ||
| replacement | |||||
|
43
|
43
0025050206 Hh collar screw m5x20 tx30TX30 |
0025050206 |
US $1.33 |
||
|
99
|
99
7550013
Forkoil Ebh16 Sae 7.5
TX30 |
7550013 |
— | ||
