	Description	OEM Part #	Price
1	1 45101000444 Fork cpl. sx jun marz. 2002 2002	45101000444	—
5	5 7501476A Top fork plate 2002	7501476A	—
6	6 0912080303 Ah Screw Din0912-M 8X30 2002	0912080303	US $1.50
7	7 0912060253 Ah Screw Din0912-M 6X25 2002	0912060253	US $1.79
8	8 7504212AC Plug cap 2002	7504212AC	US $42.40
9	9 7528010 O-ring 2002	7528010	US $1.09
11	11 7518031 Pre load bush l=55mm 2002 2002	7518031	—
12	12 75141169 Spring 2n/mm 2002	75141169	—
12	12 75141214 Spring 2,5n/mm 2002	75141214	US $14.59
13	13 7533297 Dust seal 2002	7533297	US $32.23
14	14 7523264 Stop ring 2002	7523264	US $5.08
15	15 7528230 Oil seal 32/42/6,5-9,5 2002	7528230	US $17.80
16	16 7522166AA Washer d42x32,5x1,5 2002	7522166AA	—
17	17 7524157 Piston ring d32 ONLY FOR REBOUND DAMPING	7524157	US $2.98
18	18 7803936A Piston rod rebound junior 02 02	7803936A	—
18	18 7803938A Piston rod compression jun. 02 02	7803938A	—
19	19 75141015 Rebound spring 02	75141015	—
20	20 75031570A Slider l/s 50 lc 2002 2002	75031570A	—
21	21 75031570AR Slider cpl. l/s 50lc 2002 2002	75031570AR	—
22	22 7522225 Washer 14x8x1,5 2002	7522225	US $0.71
25	25 77051124 Bot. fork plate cpl. mini/jun 2002	77051124	—
26	26 7708247R Fork tube r/s mini/jun. 02 02	7708247R	—
27	27 7708248R Fork tube l/s mini/jun. 02 02	7708248R	—
28	28 7512068 Foot buffer 02	7512068	—
29	29 75031571A Slider r/s 50 lc 2002 2002	75031571A	US $224.28
31	31 75031571AR Slider cpl. r/s 50lc 2002 2002	75031571AR	—
34	34 45101036000 Steer.head screw m20x1,5 sw 27 2002	45101036000	US $10.49
35	35 45101081200 Steer.stem b. cpl. 50 sxr 2006 2002	45101081200	—
36	36 0015080303 Hh Collar Screw M8X30 Tx40 2002	0015080303	—
	replacement
36	36 0025080306 Hh collar screw m8x30 tx40 2002	0025080306	US $3.89
37	37 0912100250 Ah-Collar Screw M10X25 Isa45 2002	0912100250	—
	replacement
37	37 0032100256S Ah-collar screw m10x25 isa45 2002	0032100256S	US $5.12
38	38 50301038000 Handlebar clamp d=22mm 2001 2001	50301038000	US $21.54
39	39 45101039000 Handlebar support d=22mm 2001 2001	45101039000	US $55.93
40	40 7547325 Sticker left side marzocchi 2001	7547325	—
40	40 7547331 Sticker right side marzocchi 2001	7547331	US $15.42
41	41 0985050003 Self Locking Nut Din0985-M 5 2001	0985050003	US $3.26
42	42 45001070000 Brake cable clamp rsgu 9/12 2001	45001070000	US $4.10
43	43 0015050203 Hh Collar Screw M5X20 Tx30 2001	0015050203	—
	replacement
43	43 0025050206 Hh collar screw m5x20 tx30 2001	0025050206	US $1.33
99	99 7550013 Forkoil Ebh16 Sae 7.5 2001	7550013	—

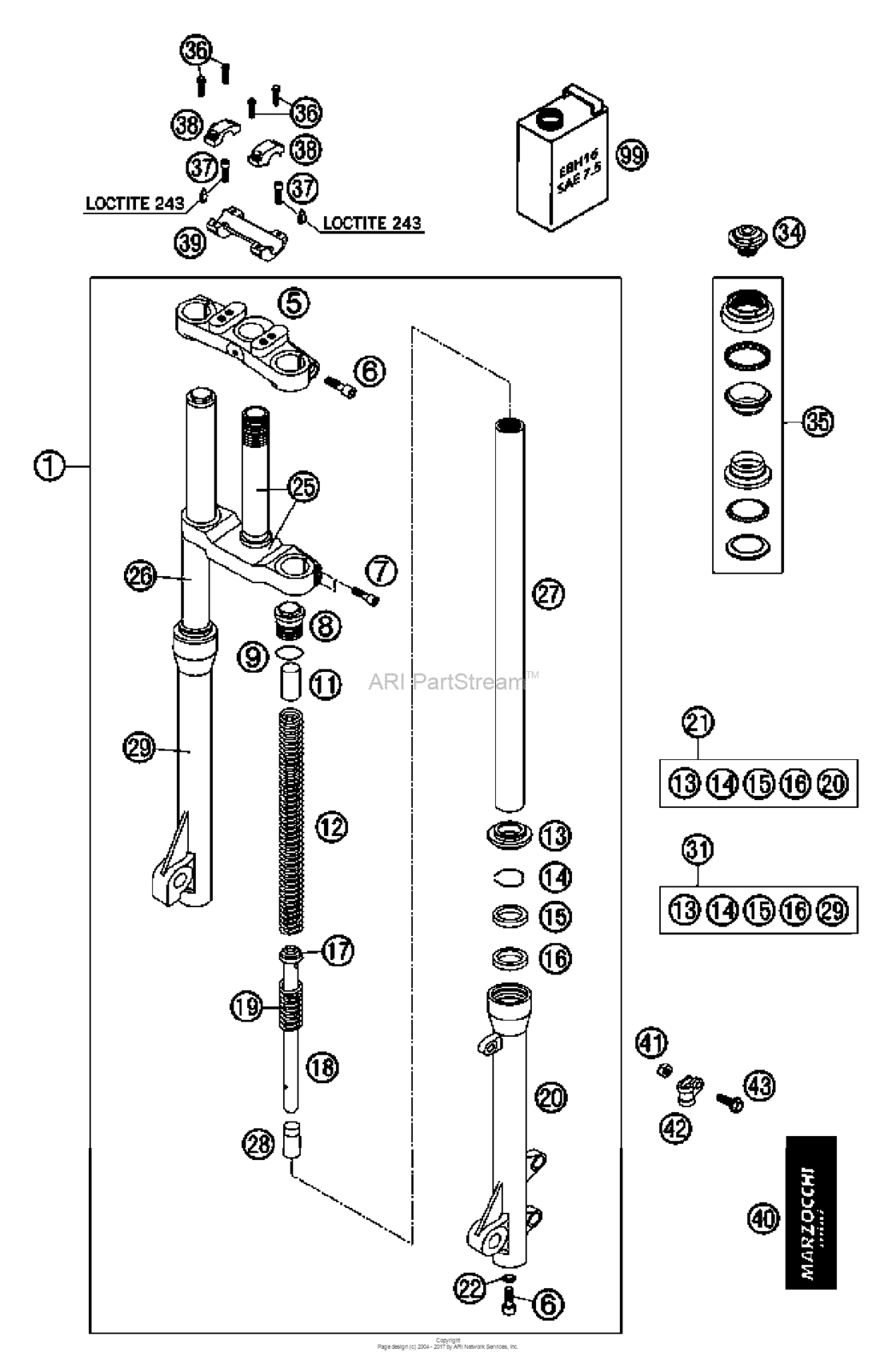

Front Fork Diagram KTM 50 50 SX Junior US/EU 18096852-940225

Front Fork Diagram KTM 50 50 SX Junior US/EU 18096852-940225
