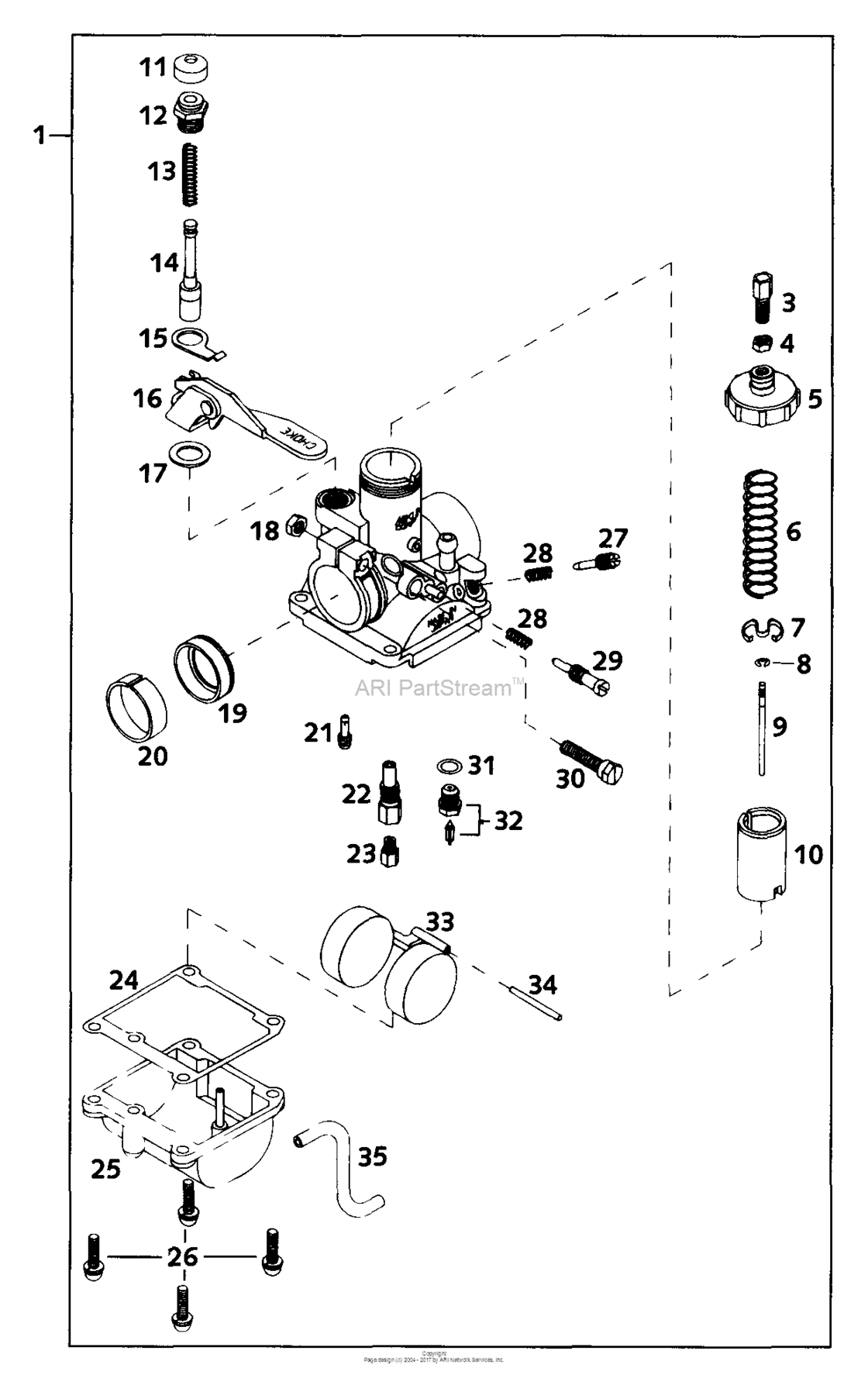

Carburetor Mikuni Vm18 Diagram KTM 50 50 SX Junior
- Year
- 2001
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX Junior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45031001044
Carburetor mikuni se vm 18-144
2005 |
45031001044 |
— | ||
|
3
|
3
45031025000 Adjusting screw m6x0,752005 |
45031025000 |
US $5.92 |
||
|
4
|
4
45031026000
Hh-nut m6x0,75
2005 |
45031026000 |
— | ||
|
5
|
5
45031027000 Cover2005 |
45031027000 |
US $8.53 |
||
|
6
|
6
45031030000 Spring2005 |
45031030000 |
US $4.51 |
||
|
7
|
7
45031009000 Retaining spring2005 |
45031009000 |
US $1.50 |
||
|
8
|
8
45031045000 Spring2005 |
45031045000 |
US $2.28 |
||
|
9
|
9
45031034000 Jet needle j8-4f182005 |
45031034000 |
US $9.47 |
||
|
10
|
10
45031035000
Throttle valve
2005 |
45031035000 |
— | ||
|
11
|
11
45031041000 Rubber2005 |
45031041000 |
US $2.50 |
||
|
12
|
12
45031047000 Fitting2005 |
45031047000 |
US $6.27 |
||
|
13
|
13
45031049000 Spring2005 |
45031049000 |
US $3.04 |
||
|
14
|
14
45031048000
Starter plunger
2005 |
45031048000 |
— | ||
|
15
|
15
45031052000 Spring plate2005 |
45031052000 |
US $2.87 |
||
|
16
|
16
45031050000 Starting lever2005 |
45031050000 |
US $28.48 |
||
|
17
|
17
45031070000 Washer2005 |
45031070000 |
US $0.92 |
||
|
18
|
18
0934050003 Hexagon Nut Din0934-M 52005 |
0934050003 |
US $2.60 |
||
|
19
|
19
45031039000 Rubber plug2005 |
45031039000 |
US $3.26 |
||
|
20
|
20
45031239000 Reduction ring2005 |
45031239000 |
US $10.93 |
||
|
21
|
21
45031007000 Idling jet2005 |
45031007000 |
US $6.58 |
||
|
22
|
22
45031021045 Needle jet 452005 |
45031021045 |
US $36.99 |
||
|
23
|
23
45031023060 Main jet 60 mikuni2005 |
45031023060 |
US $5.56 |
||
|
23
|
23
45031023065 Main jet 65 mikuni2005 |
45031023065 |
US $5.49 |
||
|
23
|
23
45031023070 Main jet 70 mikuni2005 |
45031023070 |
US $5.39 |
||
|
24
|
24
45031010000 Gasket float chamber vm182005 |
45031010000 |
US $5.64 |
||
|
25
|
25
45031011000 Float bowl2005 |
45031011000 |
US $34.78 |
||
|
26
|
26
45031014000 Lentil head screw m4x14 (set)2005 |
45031014000 |
US $6.70 |
||
|
27
|
27
45031017000 Air reg. screw2005 |
45031017000 |
US $5.58 |
||
|
28
|
28
45031015000
Spring
2005 |
45031015000 |
— | ||
| replacement | |||||
|
28
|
28
55431017010 Compression Spring Adjuster2005 |
55431017010 |
US $4.28 |
||
|
29
|
29
45031019000
Idle adj. screw vm16/18
2005 |
45031019000 |
— | ||
|
30
|
30
45031046000 Screw m5x272005 |
45031046000 |
US $2.02 |
||
|
31
|
31
45031018000
Seal ring
2005 |
45031018000 |
— | ||
|
32
|
32
45031020000
Needle valve
2005 |
45031020000 |
— | ||
|
33
|
33
45031006000 Float2005 |
45031006000 |
US $21.76 |
||
|
34
|
34
45031008000
Pin 2,5x27
2005 |
45031008000 |
— | ||
|
35
|
35
52031137001 Pvc-hose 3x5mm2005 |
52031137001 |
US $6 |
||
