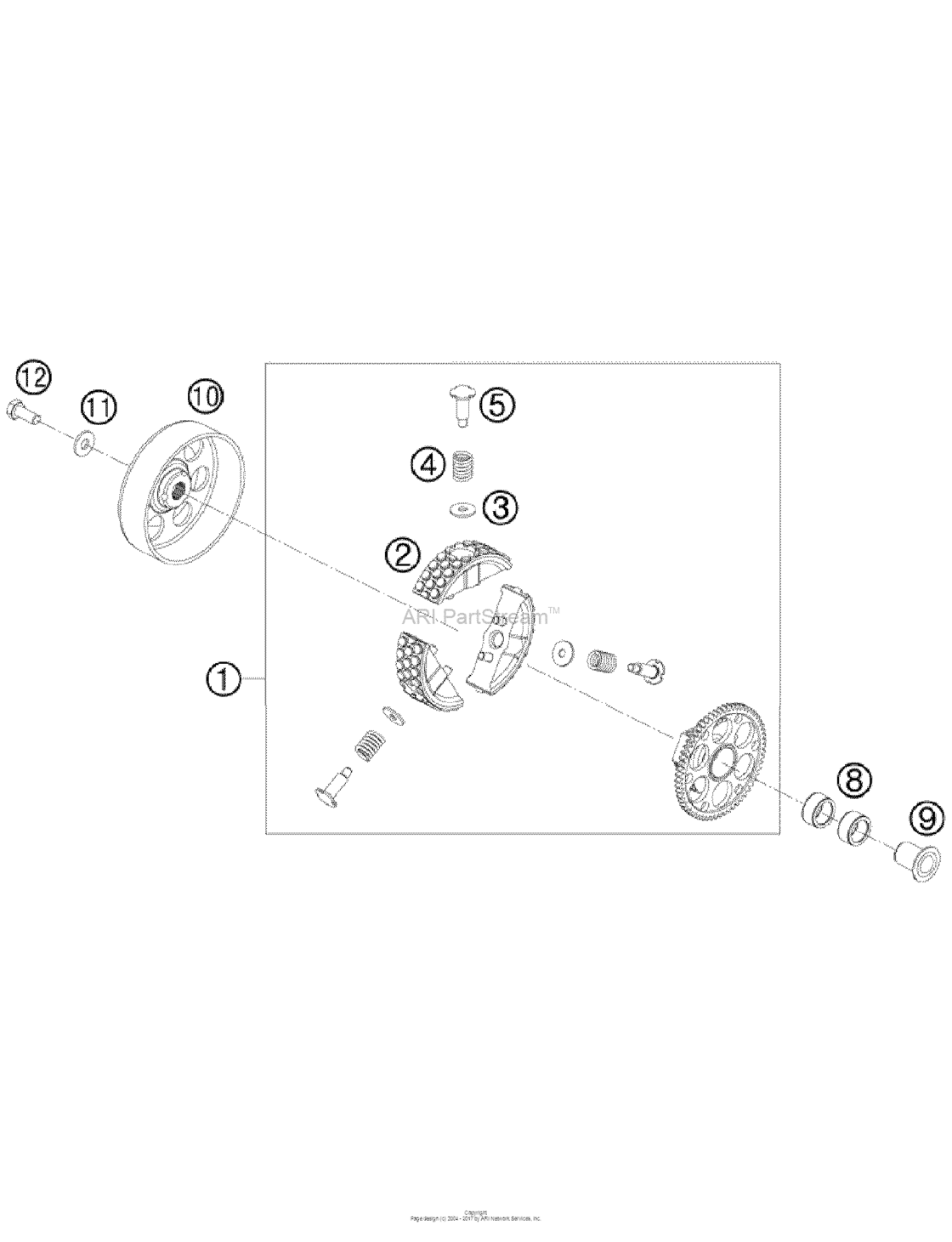

Clutch Diagram KTM 50 50 SX Junior
- Year
- 2009
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX Junior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45232000033 Clutch Cpl09 |
45232000033 |
US $459.17 |
||
| replacement | |||||
|
1
|
1
45232000244 CLUTCH CPL.09 |
45232000244 |
US $595.37 |
||
|
2
|
2
45232011000
Clutch Block Kit Cpl
09 |
45232011000 |
— | ||
| replacement | |||||
|
2
|
2
45232011044 Clutch block kit cpl.09 |
45232011044 |
US $220.78 |
||
|
3
|
3
45232007000
Distance Shim 9,5X19X1,7
(As required) |
45232007000 |
— | ||
| replacement | |||||
|
3
|
3
45232007044 Spacer shim kit(As required) |
45232007044 |
US $36.82 |
||
|
3
|
3
45232007020 Distance shim 9,5x19x0,2(As required) |
45232007020 |
US $6.04 |
||
|
3
|
3
45232007050 Distance shim 9,5x19x0,5(As required) |
45232007050 |
US $6.04 |
||
|
4
|
4
45232005000 Clutch Spring Kit(As required) |
45232005000 |
US $18.04 |
||
| replacement | |||||
|
4
|
4
45232005044
Clutch spring kit
(As required) |
45232005044 |
— | ||
|
5
|
5
45232006000
Hh Collar Screw Kit - Clutch
(As required) |
45232006000 |
— | ||
| replacement | |||||
|
5
|
5
45232006244 HH COLLAR SCREW KIT - CLUTCH(As required) |
45232006244 |
US $51.83 |
||
|
8
|
8
0402182412 Needle bearing 18x24x12a(As required) |
0402182412 |
US $17.75 |
||
|
9
|
9
45232013000 Inner ring with collar(As required) |
45232013000 |
US $41.87 |
||
| replacement | |||||
|
9
|
9
45232013100 Inner ring with collar(As required) |
45232013100 |
US $41.87 |
||
|
10
|
10
45232001000 Out. clutch hub loose(As required) |
45232001000 |
US $155.52 |
||
|
11
|
11
45232008000 Washer 8,5x31x4(As required) |
45232008000 |
US $15.90 |
||
|
12
|
12
0933080203
Hh screw din0933-m 8x20
(As required) |
0933080203 |
— | ||
| replacement | |||||
|
12
|
12
0035080206S Ah-collar screw m8x20 isa45(As required) |
0035080206S |
US $6.73 |
||
