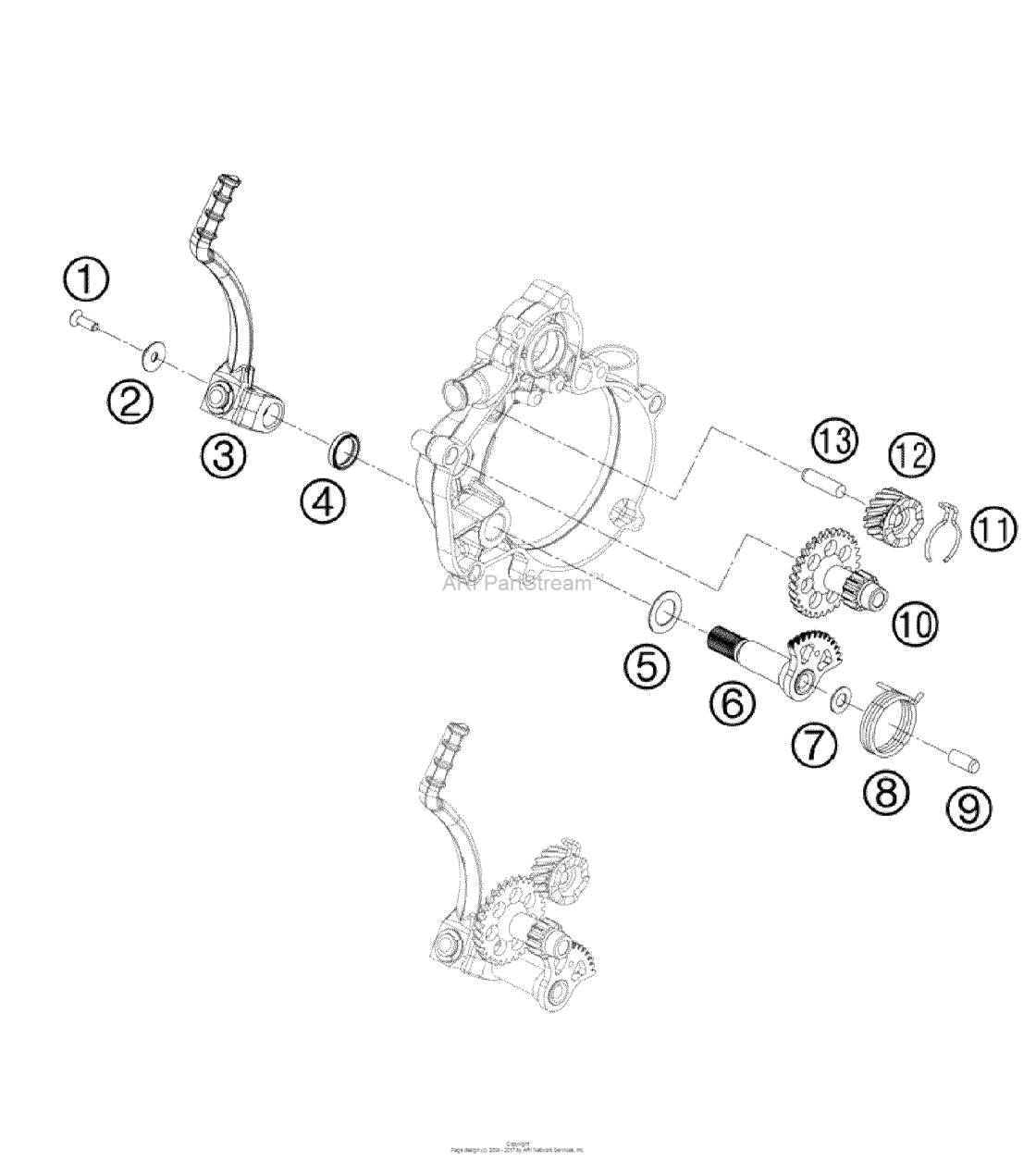

Kick Starter Diagram KTM 50 50 SX Junior
- Year
- 2009
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX Junior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0991050162 Flat head s. din7991 m5x16-8.8TX30 |
0991050162 |
US $0.58 |
||
|
2
|
2
60008045100 Special washer for m5 0303 |
60008045100 |
US $8.08 |
||
|
3
|
3
45233070044 Kickstarter cpl.03 |
45233070044 |
US $112.10 |
||
|
4
|
4
0760162240 Shaft seal ring balanc. shaft03 |
0760162240 |
US $6.61 |
||
|
5
|
5
45233058000 Washer 16,3x25,8x103 |
45233058000 |
US $3.72 |
||
|
6
|
6
45233050044
Kick start shaft cpl.
03 |
45233050044 |
— | ||
| replacement | |||||
|
6
|
6
45233050100 Kick Start Shaft Cpl03 |
45233050100 |
US $83.30 |
||
|
7
|
7
45233057000 Washer 8,2x16x103 |
45233057000 |
US $3.54 |
||
|
8
|
8
45233054000 Kickstarter spring03 |
45233054000 |
US $8.74 |
||
|
9
|
9
0325080200 Cylinder stud din6325 8x20 m603 |
0325080200 |
US $1.28 |
||
|
10
|
10
45233053000 Kickstarter shaft03 |
45233053000 |
US $98.97 |
||
|
11
|
11
45233056000 Spring Ratchet Gear03 |
45233056000 |
US $5.15 |
||
| replacement | |||||
|
11
|
11
45233056100 Spring ratchet gear03 |
45233056100 |
US $4.27 |
||
|
12
|
12
45233052016
Ratchet gear
03 |
45233052016 |
— | ||
| replacement | |||||
|
12
|
12
45233052116 Ratchet Gear03 |
45233052116 |
US $30.99 |
||
|
13
|
13
0325080300 Cylinder stud din6325 8x30 m603 |
0325080300 |
US $1.79 |
||
