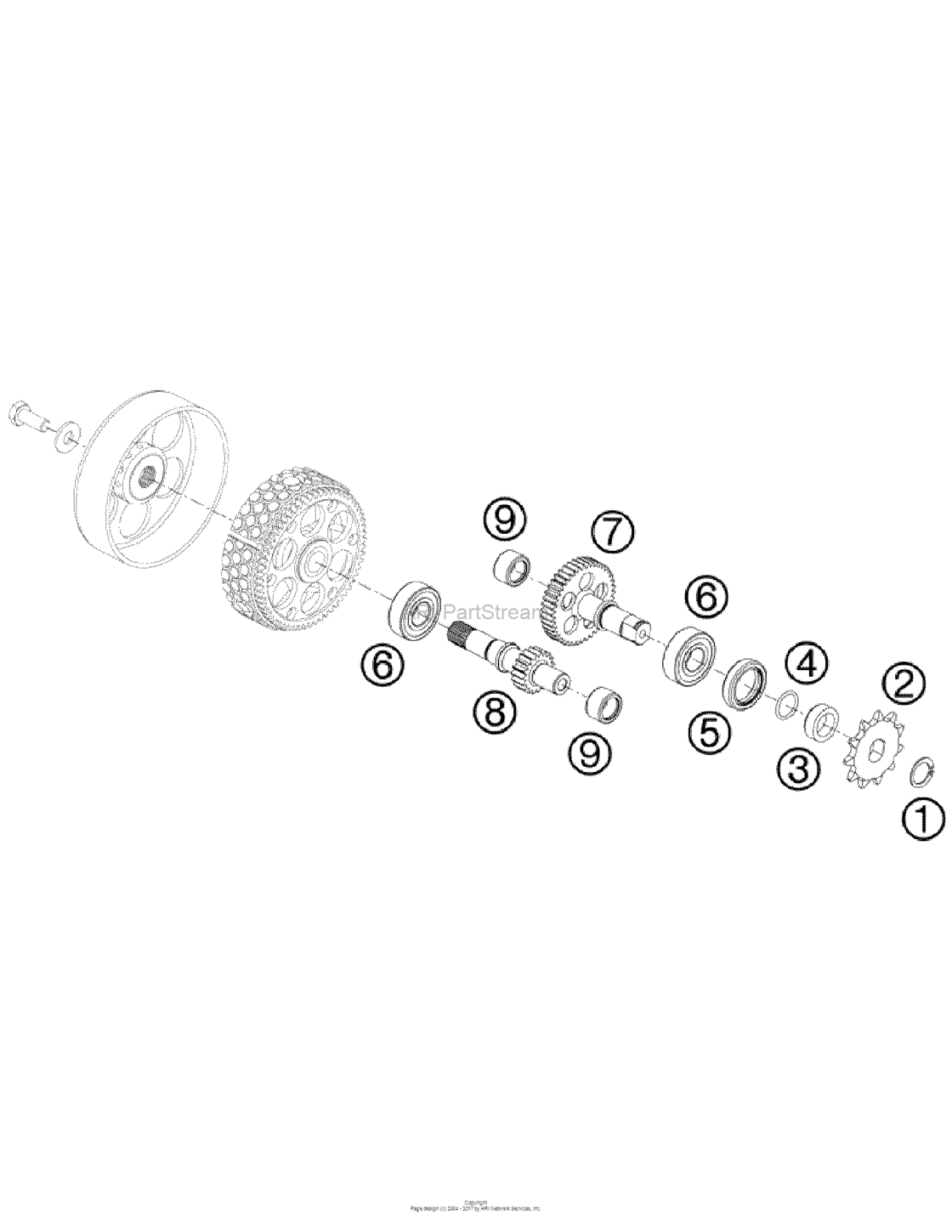

Transmission Diagram KTM 50 50 SX Junior
- Year
- 2009
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX Junior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0471150010 Circlip din0471-15x1(WITHOUT HOLDER) |
0471150010 |
US $2.60 |
||
|
2
|
2
45233029010 Sprocket 10 t.(As required) |
45233029010 |
US $29.12 |
||
|
2
|
2
45233029011 Sprocket 11 t.(As required) |
45233029011 |
US $29.12 |
||
|
3
|
3
45233030000 Disancespacer f. sprocket(As required) |
45233030000 |
US $12.05 |
||
|
4
|
4
0770015018 O-ring 15,00x1,80(As required) |
0770015018 |
US $2.60 |
||
|
5
|
5
0760223270 Shaft seal ring 22x32x7 bsl(As required) |
0760223270 |
US $9.61 |
||
|
6
|
6
45133028000 Ball bearing 15x35x11(As required) |
45133028000 |
US $22.92 |
||
|
7
|
7
45233010000
Counter Shaft
(As required) |
45233010000 |
— | ||
| replacement | |||||
|
7
|
7
45233010200 Counter shaft(As required) |
45233010200 |
US $137.31 |
||
|
8
|
8
45233001000
Counter Shaft
(As required) |
45233001000 |
— | ||
| replacement | |||||
|
8
|
8
45233010200 Counter shaft(As required) |
45233010200 |
US $137.31 |
||
|
9
|
9
54632095000 Needle bear.hk 1412 14x20x12(As required) |
54632095000 |
US $7.60 |
||
