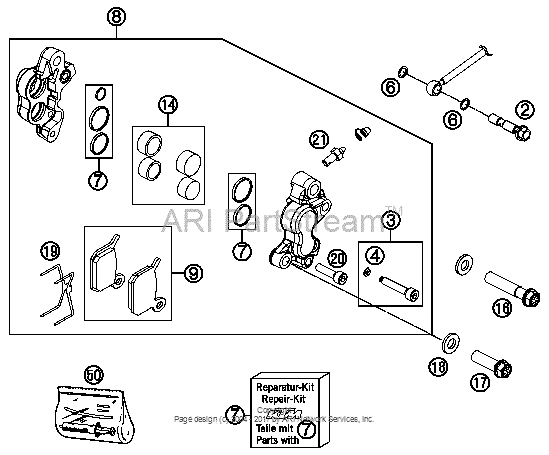

Brake Caliper Front Diagram KTM 50 50 SX Mini
- Year
- 2016
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX Mini
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
45113025000 Hollow screw m6x34 50 lc 20022002 |
45113025000 |
US $14.81 |
||
|
3
|
3
45113125000 Ah screw+circlip lc 50 022002 |
45113125000 |
US $13.33 |
||
|
4
|
4
0799025000 Tab washer din6799 rs2,52002 |
0799025000 |
US $1.24 |
||
|
6
|
6
0770060019 O-ring 6,00x1,00 formula2002 |
0770060019 |
US $1.31 |
||
|
7
|
7
45113019000 Rep.kit seal ring 50lc 20022002 |
45113019000 |
US $13.53 |
||
|
8
|
8
45113015000 Brake caliper cpl.fr. 50 lc 022002 |
45113015000 |
US $271.71 |
||
|
9
|
9
45113030000 Brake pad set 50 lc 20022002 |
45113030000 |
US $39.22 |
||
|
14
|
14
45113019050 Repair kit brakepiston2002 |
45113019050 |
US $27.40 |
||
|
16
|
16
0025080406 Hh collar screw m8x40 tx40TX40 |
0025080406 |
US $2.62 |
||
|
17
|
17
0025080256 Hh Collar Screw M8X25 Tx40TX40 |
0025080256 |
US $4.10 |
||
|
18
|
18
0125080003 Washer din0125-a 8,4TX40 |
0125080003 |
US $2.02 |
||
|
19
|
19
45113018000 Retaining spring 50 lcTX40 |
45113018000 |
US $15.76 |
||
|
20
|
20
0912050203 Ah screw din0912-m 5x20TX40 |
0912050203 |
US $0.80 |
||
|
21
|
21
45113020000 Breather screw 50 20022002 |
45113020000 |
US $9.20 |
||
|
50
|
50
45119050000 Bleeder injection-set 50-65As Required |
45119050000 |
US $79.34 |
