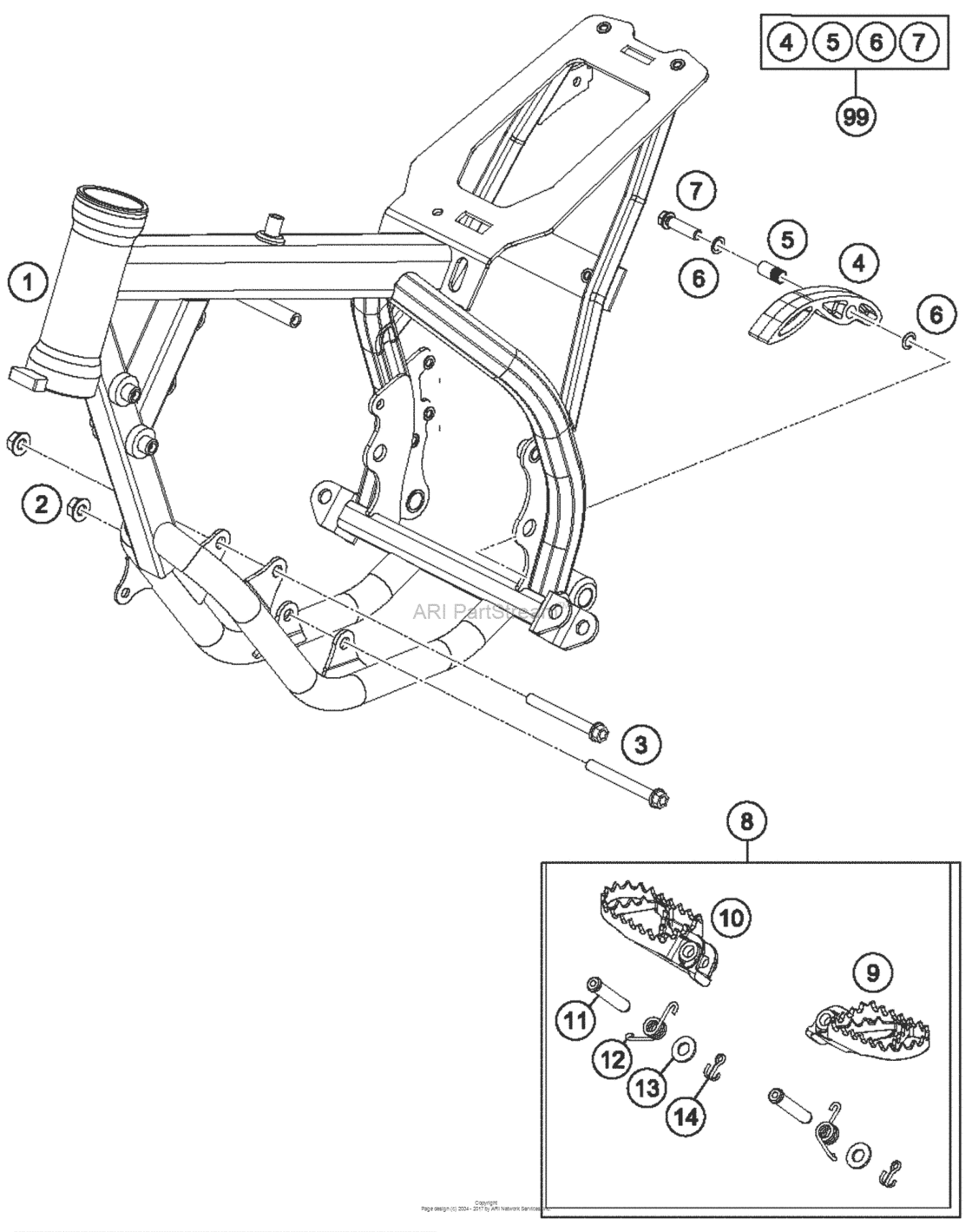

Frame Diagram KTM 50 50 SX Mini
- Year
- 2016
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX Mini
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4530300110033 Frame 453P5 Black2002 |
4530300110033 |
US $1,020.15 |
||
|
2
|
2
54310086200 Self Locking Nut M8 10.92002 |
54310086200 |
US $1.56 |
||
|
3
|
3
0025080656 Hh collar screw m8x65 tx40TX40 |
0025080656 |
US $3.26 |
||
|
4
|
4
51103053000 Chain sliding piece below '97'97 |
51103053000 |
US $13.24 |
||
|
5
|
5
51103053051 Bushing 8,2x10x20'97 |
51103053051 |
US $3.06 |
||
|
6
|
6
36003014000 Lock washer 8mm'97 |
36003014000 |
US $0.46 |
||
|
7
|
7
0025080306 Hh collar screw m8x30 tx40TX40 |
0025080306 |
US $3.89 |
||
|
8
|
8
47103040033 Footrest Cpl. 14TX40 |
47103040033 |
US $113.41 |
||
|
9
|
9
47103040000 Footrest L/sTX40 |
47103040000 |
US $44.56 |
||
|
10
|
10
47103041000 Footrest R/sTX40 |
47103041000 |
US $43.49 |
||
|
11
|
11
54803044000 Pin For Foot Ped 51.5X9.8 MmTX40 |
54803044000 |
US $10.98 |
||
|
12
|
12
0125100003 Washer Din0125-A10,5TX40 |
0125100003 |
US $1.19 |
||
|
13
|
13
54603041000 Footrest Spring L/s & R/sTX40 |
54603041000 |
US $3.52 |
||
|
14
|
14
0094032253 Pin din0094-3,2x25 steelTX40 |
0094032253 |
US $1.12 |
||
| replacement | |||||
|
14
|
14
0094032250 Pin din0094-3,2x25 steelTX40 |
0094032250 |
US $1.12 |
||
|
99
|
99
51103053110 Chain Sliding Kit Below MiniTX40 |
51103053110 |
US $16.47 |
||
