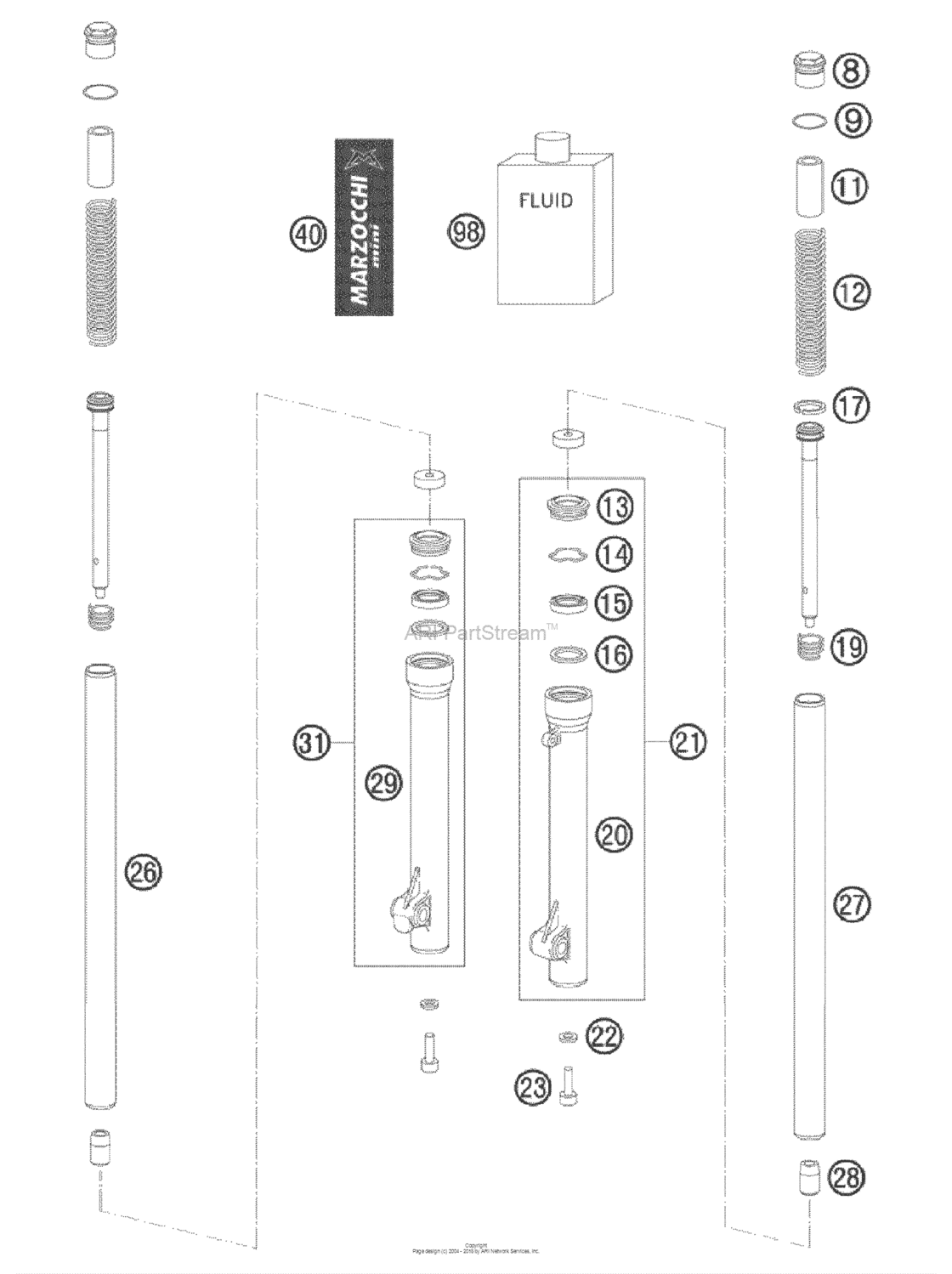

Front Fork, Disassembled Diagram KTM 50 50 SX Mini
- Year
- 2009
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX Mini
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8
|
8
7504212AC Plug cap03 |
7504212AC |
US $42.40 |
||
|
9
|
9
7528010 O-ring03 |
7528010 |
US $1.09 |
||
|
11
|
11
7518031
Pre load bush l=55mm 2002
2002 |
7518031 |
— | ||
|
12
|
12
75141169
Spring 2n/mm
2002 |
75141169 |
— | ||
|
12
|
12
75141214 Spring 2,5n/mm(As required) |
75141214 |
US $14.59 |
||
|
13
|
13
7533297 Dust seal(As required) |
7533297 |
US $32.23 |
||
|
14
|
14
7523264 Stop ring(As required) |
7523264 |
US $5.08 |
||
|
15
|
15
7528230 Oil seal 32/42/6,5-9,5(As required) |
7528230 |
US $17.80 |
||
|
16
|
16
7522166AA
Washer d42x32,5x1,5
(As required) |
7522166AA |
— | ||
|
17
|
17
7524157 Piston ring d32ONLY FOR REBOUND DAMPING |
7524157 |
US $2.98 |
||
|
19
|
19
75141015
Rebound spring
ONLY FOR REBOUND DAMPING |
75141015 |
— | ||
|
20
|
20
75031570A
Slider l/s 50 lc 2002
2002 |
75031570A |
— | ||
|
21
|
21
75031570AR
Slider cpl. l/s 50lc 2002
2002 |
75031570AR |
— | ||
|
22
|
22
7522225 Washer 14x8x1,52002 |
7522225 |
US $0.71 |
||
|
23
|
23
0912080403 Ah screw din912 m8x402002 |
0912080403 |
US $1.51 |
||
|
26
|
26
7708247R
Fork tube r/s mini/jun. 02
02 |
7708247R |
— | ||
|
27
|
27
7708248R
Fork tube l/s mini/jun. 02
02 |
7708248R |
— | ||
|
28
|
28
7512068
Foot buffer
02 |
7512068 |
— | ||
|
29
|
29
75031571A Slider r/s 50 lc 20022002 |
75031571A |
US $224.28 |
||
|
31
|
31
75031571AR
Slider cpl. r/s 50lc 2002
2002 |
75031571AR |
— | ||
|
40
|
40
7547325
Sticker left side marzocchi
2002 |
7547325 |
— | ||
|
40
|
40
7547331 Sticker right side marzocchi2002 |
7547331 |
US $15.42 |
||
|
98
|
98
7550013
Forkoil Ebh16 Sae 7.5
2002 |
7550013 |
— |
