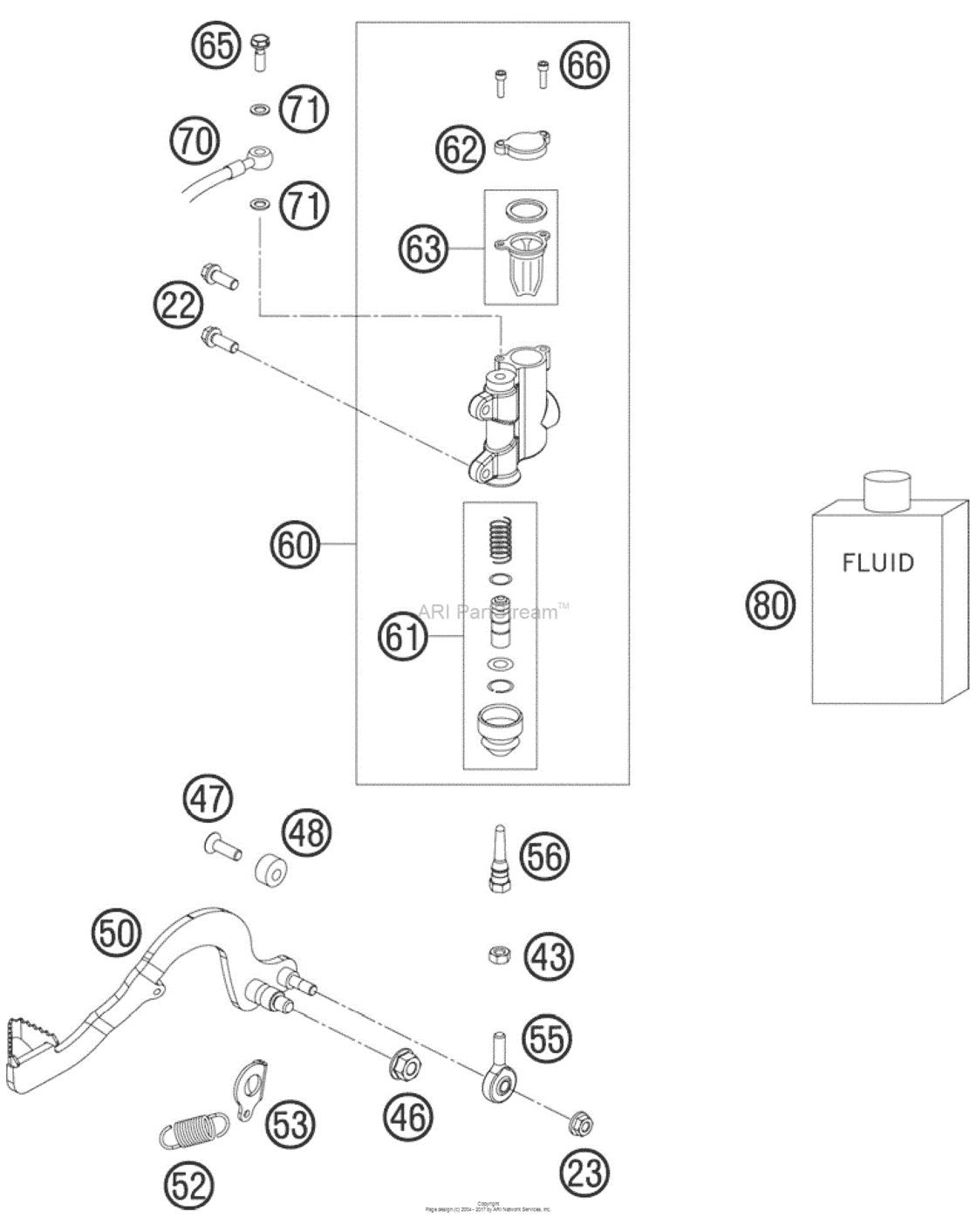

Rear Break Control Diagram KTM 50 50 SX Mini
- Year
- 2011
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX Mini
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22
|
22
0025060166 Hh collar screw m6x16 tx30TX30 |
0025060166 |
US $2.23 |
||
|
23
|
23
56509064100 Self Locking Nut M6 10.910.9 |
56509064100 |
US $1.04 |
||
|
43
|
43
0934060003 Hexagon Nut Din0934-M 610.9 |
0934060003 |
US $0.43 |
||
|
46
|
46
54310086200 Self Locking Nut M8 10.910.9 |
54310086200 |
US $1.56 |
||
|
47
|
47
0991060202 Flat head din7991-m 6x2010.9 |
0991060202 |
US $3.26 |
||
|
48
|
48
45203063000 Brake Lever Stop10.9 |
45203063000 |
US $28.53 |
||
|
50
|
50
45213050000 Foot brake lever10.9 |
45213050000 |
US $114.12 |
||
|
52
|
52
54603062000
Return spring for brake lever
10.9 |
54603062000 |
— | ||
| replacement | |||||
|
52
|
52
54603062100 Return Spring For Brake Lever10.9 |
54603062100 |
US $7.14 |
||
|
53
|
53
45213053000 Lock washer 50 sx10.9 |
45213053000 |
US $5 |
||
|
55
|
55
54813055000
Swivel head ka6 03
03 |
54813055000 |
— | ||
| replacement | |||||
|
55
|
55
54813055100 Swivel Head Cmp603 |
54813055100 |
US $25.18 |
||
|
56
|
56
47013056100 Pressure rod 85 sx 0606 |
47013056100 |
US $12.34 |
||
|
60
|
60
46113060000 Rear brake cyl. 50+65 0404 |
46113060000 |
US $133.40 |
||
|
61
|
61
47013061000 Rep. set piston rear d=11 20032003 |
47013061000 |
US $46.16 |
||
|
62
|
62
47013062000 Cylinder cover rear 85 sx 0303 |
47013062000 |
US $8.60 |
||
|
63
|
63
47013063000 Gasket cylinder cover rear 0303 |
47013063000 |
US $11.07 |
||
|
65
|
65
46113325000 Hollow screw m603 |
46113325000 |
US $19.84 |
||
|
66
|
66
0912040103 Ah.screw din0912-m 4x1003 |
0912040103 |
US $1.22 |
||
|
70
|
70
45213170100 Brake tube rear03 |
45213170100 |
US $52.90 |
||
|
71
|
71
0770060019 O-ring 6,00x1,00 formula03 |
0770060019 |
US $1.31 |
||
|
80
|
80
00062030000 Brake fluid dot5.1 0,25l0,25L |
00062030000 |
US $14.35 |
||
