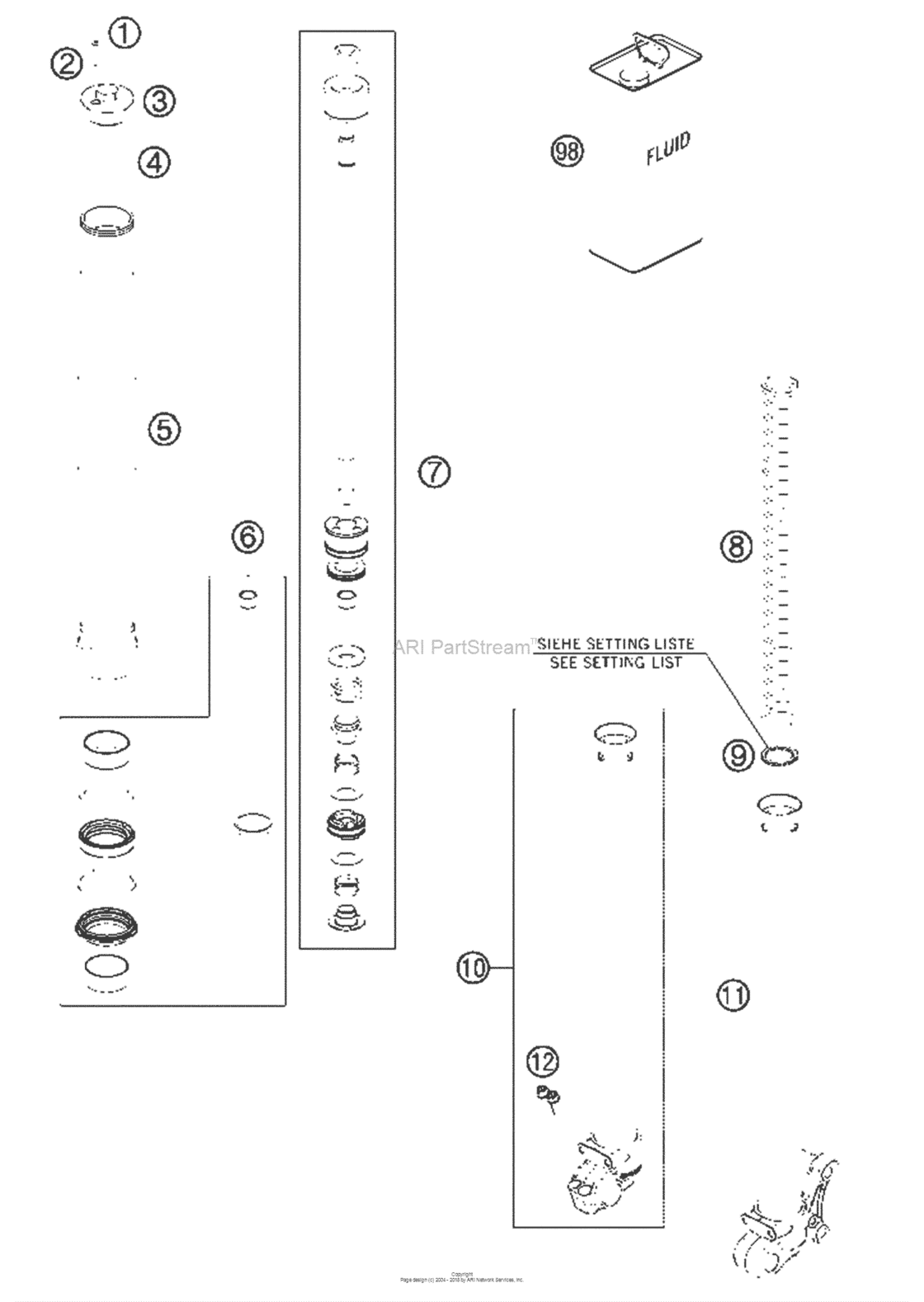

Front Fork Disassembled Diagram KTM 50 50 SX Mini
- Year
- 2013
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX Mini
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48600481 Vent screw m4x803 |
48600481 |
US $2.33 |
||
|
2
|
2
48600046 O-ring nbr 3x1,503 |
48600046 |
US $2.47 |
||
|
3
|
3
35480459 Screw Cap M38X1.503 |
35480459 |
US $21.32 |
||
|
4
|
4
46180581 O-Ring 35X1.5 Nbr7003 |
46180581 |
US $0.66 |
||
|
5
|
5
35480453 Outer Tube L=42503 |
35480453 |
US $204.61 |
||
|
6
|
6
R703 Repair Kit 50Sx 20122012 |
R703 |
US $96.41 |
||
| replacement | |||||
|
6
|
6
R703T Repair Kit 50Sx 20122012 |
R703T |
US $96.41 |
||
|
7
|
7
35480495S1 Piston Rod 50Sx Mini Cpl2012 |
35480495S1 |
US $167.72 |
||
|
8
|
8
95010051S Spring 2.0N/mm Set D=3.1Mm2012 |
95010051S |
US $119.43 |
||
|
8
|
8
95010052S Spring 2,2 N/mm SetAs Required |
95010052S |
US $248.52 |
||
|
8
|
8
95010055S Spring 1,8 N/mm SetAs Required |
95010055S |
US $248.52 |
||
|
9
|
9
35480497 Washer 22X30X2.5As Required |
35480497 |
US $1.28 |
||
|
10
|
10
35480455S1
Axle Clamp R/s Cpl. W. Tube
As Required |
35480455S1 |
— | ||
| replacement | |||||
|
10
|
10
35480455S3 Axle Clamp R/s Cpl. W. TubeAs Required |
35480455S3 |
US $350.05 |
||
|
11
|
11
35480456S1 Axle Clamp L/s Cpl. W. TubeAs Required |
35480456S1 |
US $264.98 |
||
|
12
|
12
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
98
|
98
48600765
Fork Oil Sae5
TX30 |
48600765 |
— | ||
