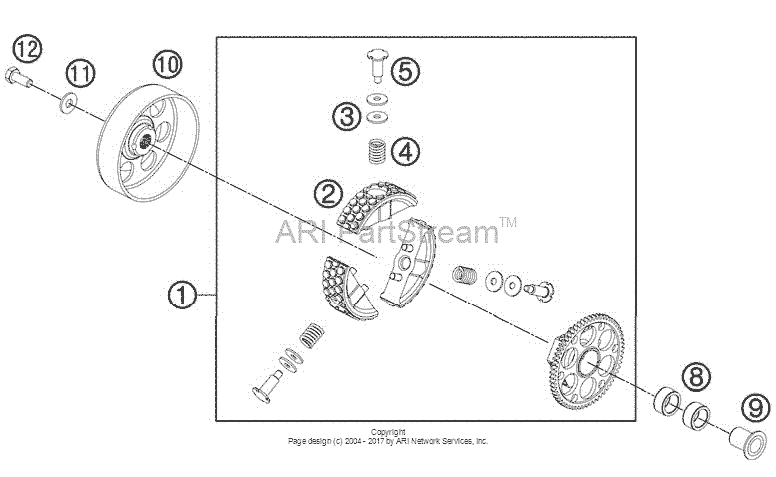

Clutch Diagram KTM 50 50 SX Mini
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX Mini
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45232000133
Clutch cpl.
(As required) |
45232000133 |
— | ||
| replacement | |||||
|
1
|
1
45232000244 CLUTCH CPL.(As required) |
45232000244 |
US $595.37 |
||
|
2
|
2
45232011044 Clutch block kit cpl.(As required) |
45232011044 |
US $220.78 |
||
|
3
|
3
45232007020 Distance shim 9,5x19x0,2(As required) |
45232007020 |
US $6.04 |
||
|
3
|
3
45232007044 Spacer shim kit(As required) |
45232007044 |
US $36.82 |
||
|
3
|
3
45232007050 Distance shim 9,5x19x0,5(As required) |
45232007050 |
US $6.04 |
||
|
4
|
4
45232005144 Clutch spring kit "a"(As required) |
45232005144 |
US $67.78 |
||
|
4
|
4
45232005244
Clutch spring kit "b"
(As required) |
45232005244 |
— | ||
| replacement | |||||
|
4
|
4
45232005144 Clutch spring kit "a"(As required) |
45232005144 |
US $67.78 |
||
|
5
|
5
45232006144 Hh Collar Screw Kit - Clutch(As required) |
45232006144 |
US $89.13 |
||
| replacement | |||||
|
5
|
5
45232006244 HH COLLAR SCREW KIT - CLUTCH(As required) |
45232006244 |
US $51.83 |
||
|
8
|
8
0402182412 Needle bearing 18x24x12a(As required) |
0402182412 |
US $17.75 |
||
|
9
|
9
45232013000 Inner ring with collar(As required) |
45232013000 |
US $41.87 |
||
| replacement | |||||
|
9
|
9
45232013100 Inner ring with collar(As required) |
45232013100 |
US $41.87 |
||
|
10
|
10
45232001000 Out. clutch hub loose(As required) |
45232001000 |
US $155.52 |
||
|
11
|
11
45232008000 Washer 8,5x31x4(As required) |
45232008000 |
US $15.90 |
||
|
12
|
12
0035080206S Ah-collar screw m8x20 isa45(As required) |
0035080206S |
US $6.73 |
||
