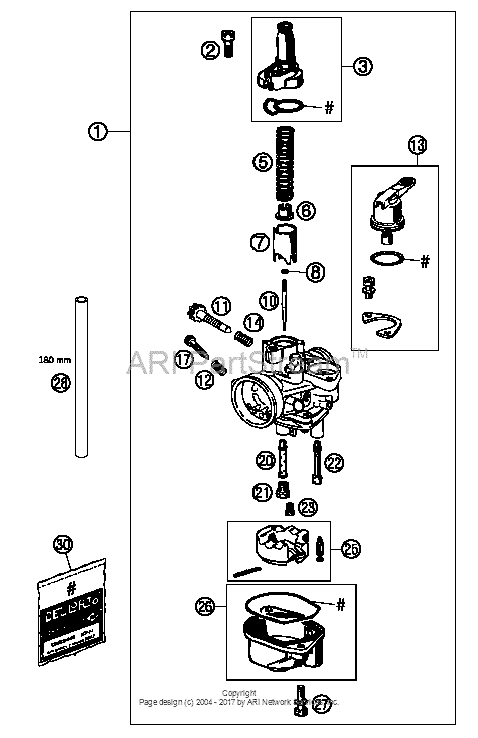

Carburetor Diagram KTM 50 50 SX Mini
- Year
- 2014
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX Mini
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45131001300
Carburetor dello. phva 12xs 05
05 |
45131001300 |
— | ||
| replacement | |||||
|
1
|
1
45231001300 Carburetor Phva 12Xs 200905 |
45231001300 |
US $374.70 |
||
|
2
|
2
0084050163 Cyl.head screw din0084-m 5x16a05 |
0084050163 |
US $0.15 |
||
|
3
|
3
45131527000 Carburetor cover dellor. 12-1412-14 |
45131527000 |
US $20.76 |
||
|
5
|
5
45131530000 Spring12-14 |
45131530000 |
US $2.06 |
||
|
6
|
6
45131531000 Spring cap12-14 |
45131531000 |
US $2.06 |
||
|
7
|
7
45131535000 Throttle valve 4040 |
45131535000 |
US $41.62 |
||
|
8
|
8
45131545000 Clamp spring40 |
45131545000 |
US $1.58 |
||
|
10
|
10
45131534010 Jet needle a1040 |
45131534010 |
US $18.50 |
||
|
11
|
11
45131517000 Idle adjust screw40 |
45131517000 |
US $4.66 |
||
|
12
|
12
45131516000 Spring40 |
45131516000 |
US $1.12 |
||
|
13
|
13
45131548000 Starting lever cpl. dell.12-1412-14 |
45131548000 |
US $49.16 |
||
|
14
|
14
45131518000 Spring12-14 |
45131518000 |
US $2.94 |
||
|
17
|
17
45131617000 Adjust screw12-14 |
45131617000 |
US $4.34 |
||
|
20
|
20
45131536000 Atomizer 211fa12-14 |
45131536000 |
US $20.16 |
||
|
21
|
21
59030054000 Jet 60 dellorto m6x0,75As Required |
59030054000 |
US $3.76 |
||
|
21
|
21
45131023065 Main jet 65 dellortoAs Required |
45131023065 |
US $7.94 |
||
|
21
|
21
45131023070 Main jet 70 dellortoAs Required |
45131023070 |
US $7.94 |
||
|
21
|
21
45131023075 Main jet 75 dellortoAs Required |
45131023075 |
US $7.94 |
||
|
21
|
21
57031523080 Main jet 8080 - As Required |
57031523080 |
US $7.14 |
||
|
22
|
22
45131551060 Starting jet 6060 |
45131551060 |
US $7.46 |
||
|
23
|
23
45131507035 Idling jet 3535, As Required |
45131507035 |
US $5.87 |
||
|
23
|
23
45131507038 Idling jet 3838, As Required |
45131507038 |
US $5.36 |
||
|
23
|
23
45131507045 Idling jet 4545, As Required |
45131507045 |
US $5.56 |
||
|
25
|
25
45131509000 Float cpl.45, As Required |
45131509000 |
US $29.24 |
||
|
26
|
26
45131511000 Float bowl dellorto 12-1412-14 |
45131511000 |
US $10.35 |
||
|
27
|
27
0084040203 Cyl.screw din0084-m 4x20 a12-14 |
0084040203 |
US $0.15 |
||
|
28
|
28
58307016001 Fuel hose viton 6x1,5 per/mAs Required |
58307016001 |
US $36.94 |
||
|
30
|
30
45131599000 Gasket set dellorto 12-14 phvaAs Required |
45131599000 |
US $19.99 |
||
