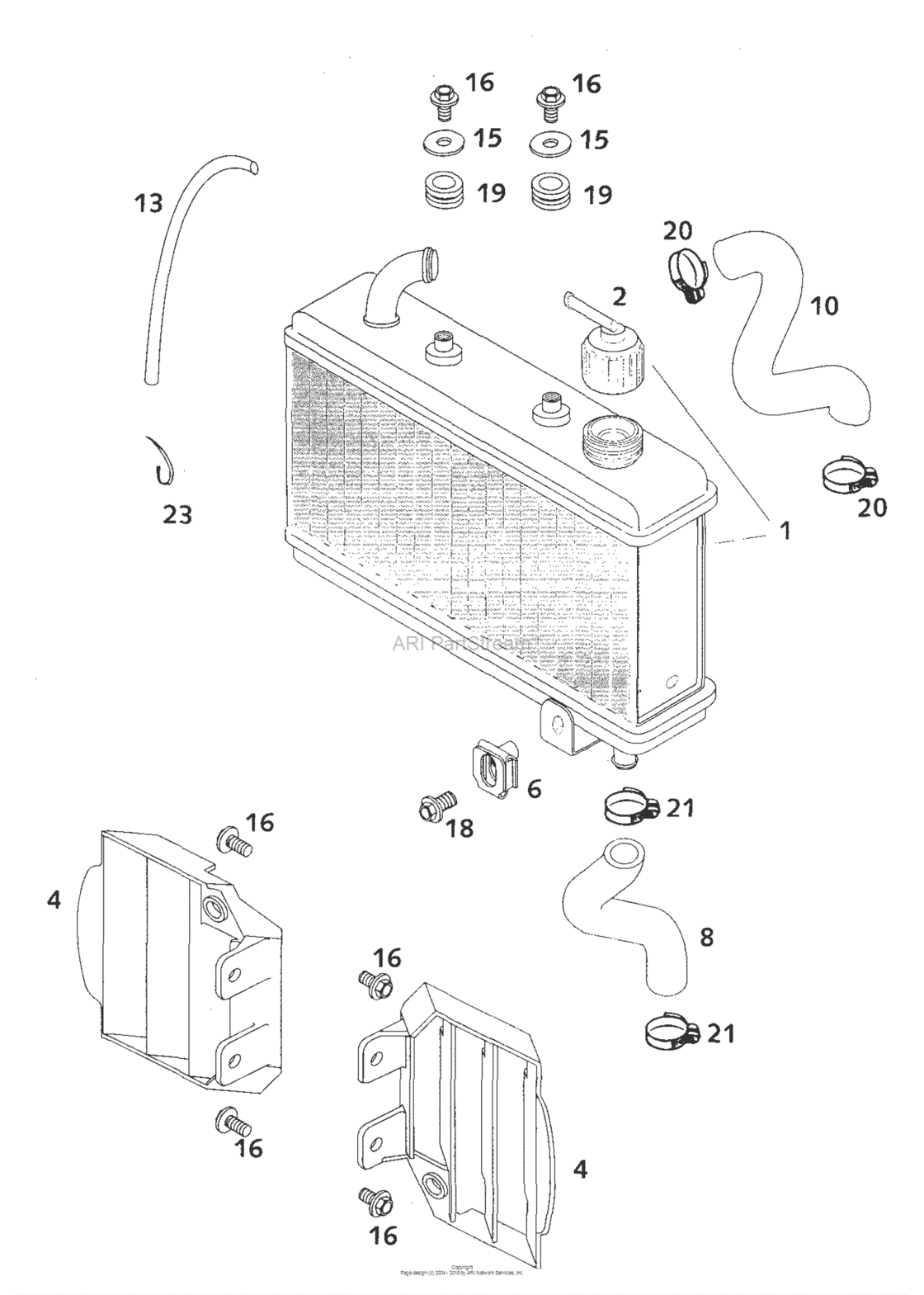

Cooling System Diagram KTM 50 50 SX Pro Senior LC
- Year
- 2001
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SX Pro Senior LC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
44011076305 Cable tie 300/4,8mm black(As Required) |
44011076305 |
US $0.36 |
||
|
1
|
1
45135007000 Radiator mini sx jun/sen 2001(As Required) |
45135007000 |
US $170.10 |
||
|
2
|
2
45135009000 Radiator cap 50 lc 1,0 bar(As Required) |
45135009000 |
US $11.10 |
||
|
4
|
4
45135007001 Radiator prot. sx jun/sen 2001(As Required) |
45135007001 |
US $6.41 |
||
|
6
|
6
54603048100 Range Change Metal Nut M6(As Required) |
54603048100 |
US $5.27 |
||
|
8
|
8
45135025000 Radiator hose sx jun."lc" 2001(As Required) |
45135025000 |
US $5.49 |
||
|
10
|
10
45135026000 Radiator hose sx jun."lc" 2001(As Required) |
45135026000 |
US $7.60 |
||
|
13
|
13
31007107001 Pvc-Hose 6X9(As Required) |
31007107001 |
US $5.85 |
||
| replacement | |||||
|
13
|
13
50335030001 Pvc-Hose 6X9(As Required) |
50335030001 |
US $5.12 |
||
|
15
|
15
0021060003 Washer Din9021-A 6,4(As Required) |
0021060003 |
US $3.26 |
||
|
16
|
16
0014060103
Hh Collar Screw M6X10 Tx30
(As Required) |
0014060103 |
— | ||
| replacement | |||||
|
16
|
16
0024060106 Hh collar screw m6x10 tx30(As Required) |
0024060106 |
US $4.35 |
||
|
18
|
18
59001092050 Special Screw M6X12,5 Ws=8(As Required) |
59001092050 |
US $2.35 |
||
|
19
|
19
58414019000 Rubber grommet 11 x 19 x 9 '96(As Required) |
58414019000 |
US $8.11 |
||
|
20
|
20
10001020000 Hose Clamp 18-29(As Required) |
10001020000 |
US $4.71 |
||
|
21
|
21
10001020100
Hose Clamp Gemi 12/22
(As Required) |
10001020100 |
— | ||
|
23
|
23
44011076200 Cable tie 200/3,6mm black(As Required) |
44011076200 |
US $0.39 |
||
