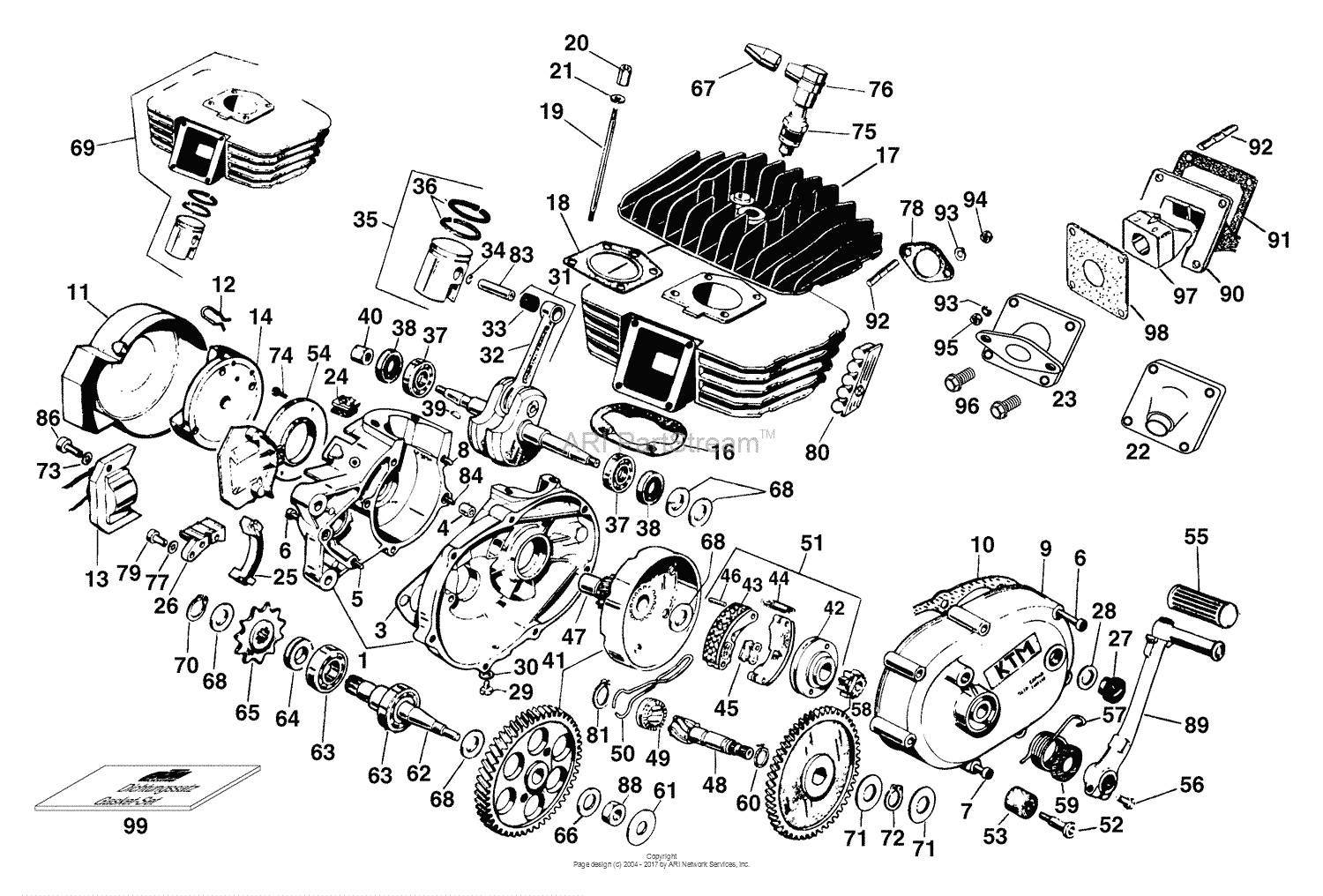

Engine S5-Gs Diagram KTM 50 50 SXR Pro Junior
- Year
- 1998
- Sales region
- US/EU
- Engine Capacity
- 50
- Model
- 50 SXR Pro Junior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45030000044
Engine case cpl. '97
FOR FOOT BRAKE |
45030000044 |
— | ||
|
3
|
3
45030039000 Engine case gasketFOR FOOT BRAKE |
45030039000 |
US $2.98 |
||
|
4
|
4
45030023000
Tension pin 14x10x8
FOR FOOT BRAKE |
45030023000 |
— | ||
|
5
|
5
0912060404 Ah Screw Din0912-M 6X40 A2FOR FOOT BRAKE |
0912060404 |
US $1.38 |
||
|
6
|
6
0912060453
Ah screw din0912-m 6x45
FOR FOOT BRAKE |
0912060453 |
— | ||
|
7
|
7
0912060503 Ah Screw Din0912-M 6X50FOR FOOT BRAKE |
0912060503 |
US $1.46 |
||
|
8
|
8
0912060553 Ah screw din0912-m 6x55FOR FOOT BRAKE |
0912060553 |
US $2.14 |
||
|
9
|
9
45030001000
Clutch cover
FOR FOOT BRAKE |
45030001000 |
— | ||
|
10
|
10
45030025000
Gasket clutch cover
FOR FOOT BRAKE |
45030025000 |
— | ||
|
11
|
11
45030002000
Ignition cover
FOR FOOT BRAKE |
45030002000 |
— | ||
|
12
|
12
45030092000
Retaining spring
FOR FOOT BRAKE |
45030092000 |
— | ||
|
13
|
13
45039006000
Ignition coil cpl.
FOR FOOT BRAKE |
45039006000 |
— | ||
|
14
|
14
45039005000 FlywheelFOR FOOT BRAKE |
45039005000 |
US $225.17 |
||
|
16
|
16
45030035800
Cyl. base gasket
FOR FOOT BRAKE |
45030035800 |
— | ||
|
17
|
17
45030006500 Cylinder headFOR FOOT BRAKE |
45030006500 |
US $103.11 |
||
|
18
|
18
36330036000
Cyl. head gasket
FOR FOOT BRAKE |
36330036000 |
— | ||
|
19
|
19
36330042000
Stud bolt m6x112-25/15
FOR FOOT BRAKE |
36330042000 |
— | ||
|
20
|
20
45030079000 Hh-nut m6 36mm high ws=12FOR FOOT BRAKE |
45030079000 |
US $5.17 |
||
|
21
|
21
0125060003 Washer Din0125-A 6,4FOR FOOT BRAKE |
0125060003 |
US $0.37 |
||
|
22
|
22
45030050100
Intake flange vm18 pro junior
FOR FOOT BRAKE |
45030050100 |
— | ||
|
23
|
23
45030050900
Intake flange vm20 pro senior
FOR FOOT BRAKE |
45030050900 |
— | ||
|
24
|
24
45030091000 Rubber gasketFOR FOOT BRAKE |
45030091000 |
US $2.21 |
||
|
25
|
25
45030095000
Rubber for flywheel
FOR FOOT BRAKE |
45030095000 |
— | ||
|
26
|
26
45030047000
Securing guide
FOR FOOT BRAKE |
45030047000 |
— | ||
|
27
|
27
15130020000
Oil Level Contr. Plug M14X1.25
FOR FOOT BRAKE |
15130020000 |
— | ||
| replacement | |||||
|
27
|
27
15130020100 Oil level contr. plug m14x1.25FOR FOOT BRAKE |
15130020100 |
US $27.51 |
||
|
28
|
28
15130021000
Seal ring 14,2x20x1
FOR FOOT BRAKE |
15130021000 |
— | ||
|
29
|
29
0933080103 Hh screw din0933-m 8x10FOR FOOT BRAKE |
0933080103 |
US $0.53 |
||
|
30
|
30
45038017000 Seal ring 8x14x1 aiFOR FOOT BRAKE |
45038017000 |
US $4.81 |
||
|
31
|
31
45030018500 Crankshaft stroke 41,7mm '98FOR FOOT BRAKE |
45030018500 |
US $482.78 |
||
|
32
|
32
45030015500
Con. rod repair s5gs '98
FOR FOOT BRAKE |
45030015500 |
— | ||
|
33
|
33
45030034000
Needle cage 12x15x15
FOR FOOT BRAKE |
45030034000 |
— | ||
|
34
|
34
45030074000
Circlip
FOR FOOT BRAKE |
45030074000 |
— | ||
|
35
|
35
45030007800A
Piston cpl. "a" d=39mm
FOR FOOT BRAKE |
45030007800A |
— | ||
|
35
|
35
45030007800B
Piston cpl. "b" d=39mm
FOR FOOT BRAKE |
45030007800B |
— | ||
|
35
|
35
45030007800C
Piston cpl. "c" d=39mm
FOR FOOT BRAKE |
45030007800C |
— | ||
|
35
|
35
45030007800D
Piston cpl. "d" d=39mm
FOR FOOT BRAKE |
45030007800D |
— | ||
|
36
|
36
45030030800
Piston rings cpl.
FOR FOOT BRAKE |
45030030800 |
— | ||
|
37
|
37
0625062031
Ball Bearing 6203 Tn9.c3
FOR FOOT BRAKE |
0625062031 |
— | ||
|
38
|
38
15130086000
Radial seal ring 17x35x8
FOR FOOT BRAKE |
15130086000 |
— | ||
|
39
|
39
0888025030 Woodruff key din6888-2,5x3FOR FOOT BRAKE |
0888025030 |
US $3.11 |
||
|
40
|
40
16030028000
Hh-nut m8x14, ws=15
FOR FOOT BRAKE |
16030028000 |
— | ||
|
41
|
41
45032001500
Clutch hub 52-z w.prim.15-z
FOR FOOT BRAKE |
45032001500 |
— | ||
|
42
|
42
45032002000
Modification Kit Clutch Cpl.02
FOR FOOT BRAKE |
45032002000 |
— | ||
| replacement | |||||
|
42
|
42
45032002144
Modification kit clutch cpl.02
FOR FOOT BRAKE |
45032002144 |
— | ||
|
43
|
43
16032011000
Clutch block
FOR FOOT BRAKE |
16032011000 |
— | ||
|
44
|
44
45032005500
Clutch spring reinforced
FOR FOOT BRAKE |
45032005500 |
— | ||
|
45
|
45
45032008000
Joint for blocks
FOR FOOT BRAKE |
45032008000 |
— | ||
|
46
|
46
45032045000 Roller 3x13,8FOR FOOT BRAKE |
45032045000 |
US $1 |
||
|
47
|
47
16032095000
Bushing 15x18x18
FOR FOOT BRAKE |
16032095000 |
— | ||
|
48
|
48
45033050000 Starting shaftFOR FOOT BRAKE |
45033050000 |
US $84.75 |
||
|
49
|
49
45033052000
Kickst. ratchet
FOR FOOT BRAKE |
45033052000 |
— | ||
|
50
|
50
45033056000
Spring
FOR FOOT BRAKE |
45033056000 |
— | ||
|
51
|
51
45032002544
Superseded By 45032002144
FOR FOOT BRAKE |
45032002544 |
— | ||
|
52
|
52
16233039000
Stop screw m8
FOR FOOT BRAKE |
16233039000 |
— | ||
|
53
|
53
16233040000
Rubber 10x26x18
FOR FOOT BRAKE |
16233040000 |
— | ||
|
54
|
54
45039003000
Ground plate ignition coil
FOR FOOT BRAKE |
45039003000 |
— | ||
|
55
|
55
45033076000
Kickstarter rubber
FOR FOOT BRAKE |
45033076000 |
— | ||
|
56
|
56
0933070253 Hh screw din0933-m 7x25FOR FOOT BRAKE |
0933070253 |
US $1.11 |
||
|
57
|
57
45033054000
Kickstarter spring
FOR FOOT BRAKE |
45033054000 |
— | ||
|
58
|
58
45033051000 Kickstarter sprocketsFOR FOOT BRAKE |
45033051000 |
US $224.09 |
||
|
59
|
59
45033077000 Plastic cap kickstarterFOR FOOT BRAKE |
45033077000 |
US $5.12 |
||
|
60
|
60
0770012020 O-Ring 12,00X2,00 Nbr 70FOR FOOT BRAKE |
0770012020 |
US $2.65 |
||
| replacement | |||||
|
60
|
60
0770120020 O-Ring 12,00X2,00 Nbr 70FOR FOOT BRAKE |
0770120020 |
US $2.60 |
||
|
61
|
61
45033078000
Washer 8,4x25x0,4
FOR FOOT BRAKE |
45033078000 |
— | ||
|
62
|
62
45033002000 Counter shaftFOR FOOT BRAKE |
45033002000 |
US $76.91 |
||
|
63
|
63
0625062027 Ball Bearing 6202-2Rsh/c3FOR FOOT BRAKE |
0625062027 |
US $28.61 |
||
| replacement | |||||
|
63
|
63
0625062028 Ball bearing 6202-2rsh/c3FOR FOOT BRAKE |
0625062028 |
US $12.10 |
||
|
64
|
64
15133028000
Radial seal ring 15x24x5
FOR FOOT BRAKE |
15133028000 |
— | ||
|
65
|
65
45033029800
Sprocket 10-t
FOR FOOT BRAKE |
45033029800 |
— | ||
|
66
|
66
15133031000 Washer 12,2x20x1,8FOR FOOT BRAKE |
15133031000 |
US $1.36 |
||
|
67
|
67
45039008000
Rubber cap
FOR FOOT BRAKE |
45039008000 |
— | ||
|
68
|
68
45033022000
Washer 15x22x0,4
FOR FOOT BRAKE |
45033022000 |
— | ||
|
69
|
69
45030009800 Cylinder + pistonFOR FOOT BRAKE |
45030009800 |
US $665.26 |
||
|
70
|
70
36333096000 Circlip 14x1,2FOR FOOT BRAKE |
36333096000 |
US $2.01 |
||
|
71
|
71
45033023000
Washer 16x25x0,5
FOR FOOT BRAKE |
45033023000 |
— | ||
| replacement | |||||
|
71
|
71
50180032 Shim 15x25x0,25FOR FOOT BRAKE |
50180032 |
US $3.21 |
||
|
72
|
72
0471160150 Circlip din0471-16x1FOR FOOT BRAKE |
0471160150 |
US $1.11 |
||
|
73
|
73
0125050003 Washer Din0125-A 5,3FOR FOOT BRAKE |
0125050003 |
US $2.18 |
||
|
74
|
74
45030090000 Screw m4x10FOR FOOT BRAKE |
45030090000 |
US $1.05 |
||
|
75
|
75
45039093004 Spark plug bosch w 4 acFOR FOOT BRAKE |
45039093004 |
US $11.02 |
||
|
76
|
76
45039090000
Spark plug connector
FOR FOOT BRAKE |
45039090000 |
— | ||
|
77
|
77
0797050003 Tooth lock wash. din6797-j 5,3FOR FOOT BRAKE |
0797050003 |
US $0.27 |
||
|
78
|
78
45030046800
Exhaust gasket
FOR FOOT BRAKE |
45030046800 |
— | ||
|
79
|
79
0912050123 Ah screw din0912-m 5x12FOR FOOT BRAKE |
0912050123 |
US $0.85 |
||
|
80
|
80
36330056000 Antivibration rubberFOR FOOT BRAKE |
36330056000 |
US $10.64 |
||
|
81
|
81
45033024000
Circlip 17,5x1,2
FOR FOOT BRAKE |
45033024000 |
— | ||
|
83
|
83
15130033000
Piston pin 8x12x31,4
FOR FOOT BRAKE |
15130033000 |
— | ||
|
84
|
84
0912060603 Ah screw din0921-m 6x60FOR FOOT BRAKE |
0912060603 |
US $1.94 |
||
|
86
|
86
0912050203 Ah screw din0912-m 5x20FOR FOOT BRAKE |
0912050203 |
US $0.80 |
||
|
88
|
88
15133032000 Hh-nut m12x1,25 6mm highFOR FOOT BRAKE |
15133032000 |
US $3.54 |
||
|
89
|
89
45033070000
Starting lever
FOR FOOT BRAKE |
45033070000 |
— | ||
|
90
|
90
45030051800
Reed valve housing s5-gs
FOR FOOT BRAKE |
45030051800 |
— | ||
|
91
|
91
45030057800
Gasket membran housing
FOR FOOT BRAKE |
45030057800 |
— | ||
|
92
|
92
16030057000
Stud bolt m6x33-11/16
FOR FOOT BRAKE |
16030057000 |
— | ||
|
93
|
93
0127060003
Spring ring din0127-b 6
FOR FOOT BRAKE |
0127060003 |
— | ||
|
94
|
94
51010086000 Self locking nut m 6 copperFOR FOOT BRAKE |
51010086000 |
US $1.63 |
||
|
95
|
95
0934060003 Hexagon Nut Din0934-M 6FOR FOOT BRAKE |
0934060003 |
US $0.43 |
||
|
96
|
96
0015080163
Hh collar screw m 8x16 ws=10
FOR FOOT BRAKE |
0015080163 |
— | ||
| replacement | |||||
|
96
|
96
0025080166 Hh collar screw m8x16 tx40FOR FOOT BRAKE |
0025080166 |
US $2.35 |
||
|
97
|
97
45030054000 Reed valve element plastic '98FOR FOOT BRAKE |
45030054000 |
US $20.21 |
||
|
98
|
98
45030049900
Intake flange gasket d=22,5mm
FOR FOOT BRAKE |
45030049900 |
— | ||
|
99
|
99
45030099800
Gasket set gaskets
FOR FOOT BRAKE |
45030099800 |
— | ||
|
99
|
99
45030099100
Gasket set seal rings
FOR FOOT BRAKE |
45030099100 |
— | ||
