Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 7720600410004B Airfilterbox Cover R/s Exc 12 2012	7720600410004B	US $34.65
2	2 77308013010 Collar bush. f.rear fender 07 07	77308013010	US $4.35
3	3 7720600300004B Airfilterbox Cover L/s Exc 12 07	7720600300004B	US $34.65
4	4 7720600104428 Filter Box Cpl. White 13 07	7720600104428	US $62.97
	replacement
4	4 7770600104428 Filter Box Cpl. White 13 07	7770600104428	US $62.97
5	5 0025060206 Hh collar screw m6x20 tx30 TX30	0025060206	US $1.97
7	7 54806008051 Quick release-nipple 03 03	54806008051	US $2.04
8	8 54806108052 Blind rivet 3,3x9,7 grooved 04 03	54806108052	US $1.21
9	9 54806008050 Quick release-spring hanger 03	54806008050	US $1.33
10	10 77306010000 Fender for filter box 03	77306010000	US $19.60
15	15 77206015000 Air Filter 03	77206015000	US $38.10
16	16 77206016000 Filter Carrier 11 11	77206016000	US $25.35
17	17 77206017000 Filter Support Cpl. 11 11	77206017000	US $21.35
18	18 77306018000 Filter support bush 07 07	77306018000	US $3.16
19	19 77206019000 Fasten. Device Filter S. Sx 11 07	77206019000	US $8.08
20	20 78106012000 Throttle Valve Cap 07	78106012000	—
21	21 78106012050 Throttle Valve 07	78106012050	US $1.14
22	22 78106014000 Throttle Valve Cap Filter 07	78106014000	US $10.10
26	26 77506026000 Airboxrubber 350 Efi 07	77506026000	US $59.40
27	27 78006027000 Hose Clamp 45-65Mm 07	78006027000	US $3.52
51	51 0017060204 Screw F. Plastic K60X20Al Sw6 WS=6	0017060204	US $2.89
	replacement
51	51 0017060206 Screw F. Plastic K60X20Al Sw6 WS=6	0017060206	US $2.89
79	79 77304066050 Bushing f. chain sliding pr.07 WS=6	77304066050	US $1.60

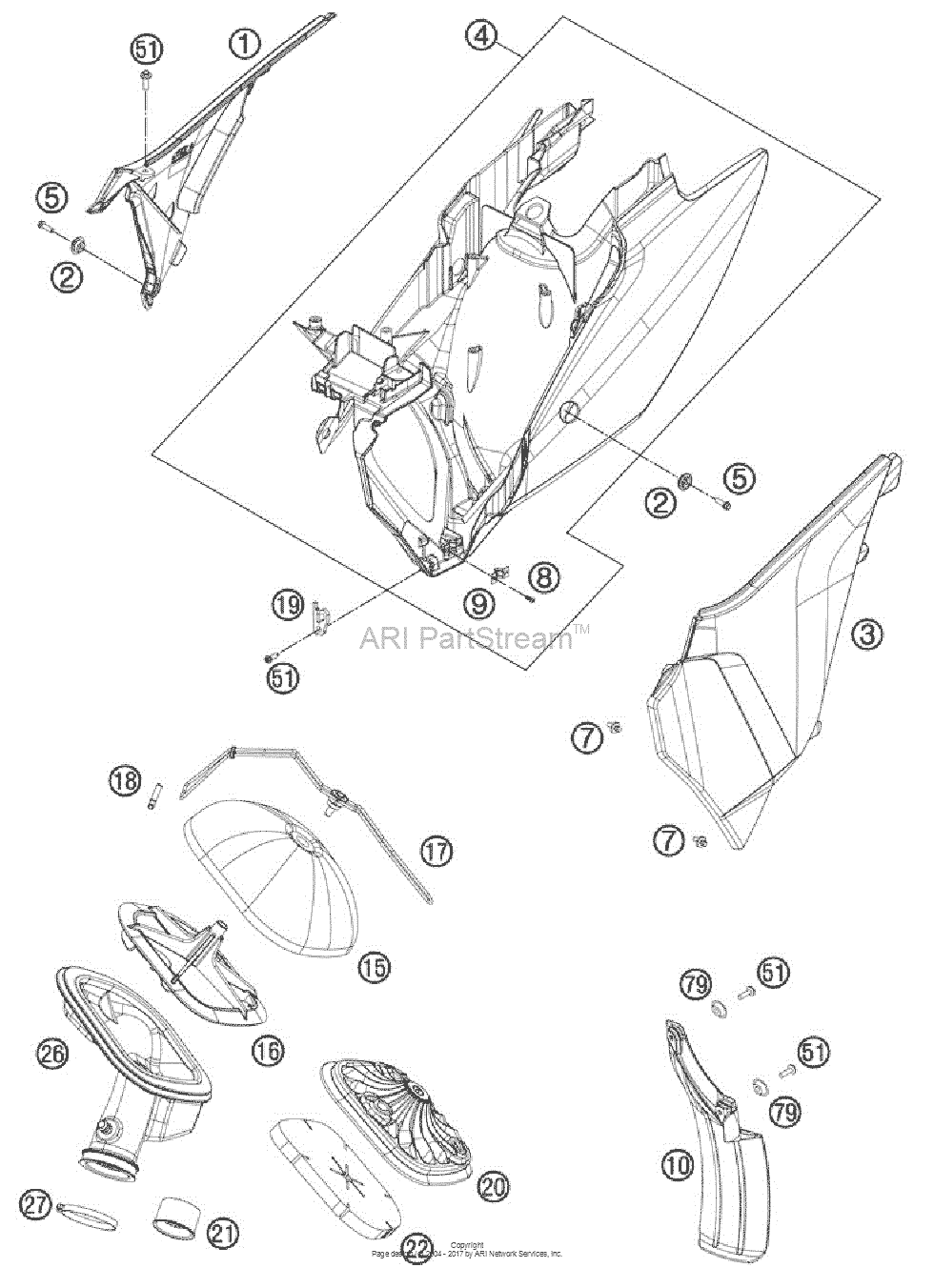

Air Filter Diagram KTM 500 500 EXC US/EU 18097782-940295

Air Filter Diagram KTM 500 500 EXC US/EU 18097782-940295
