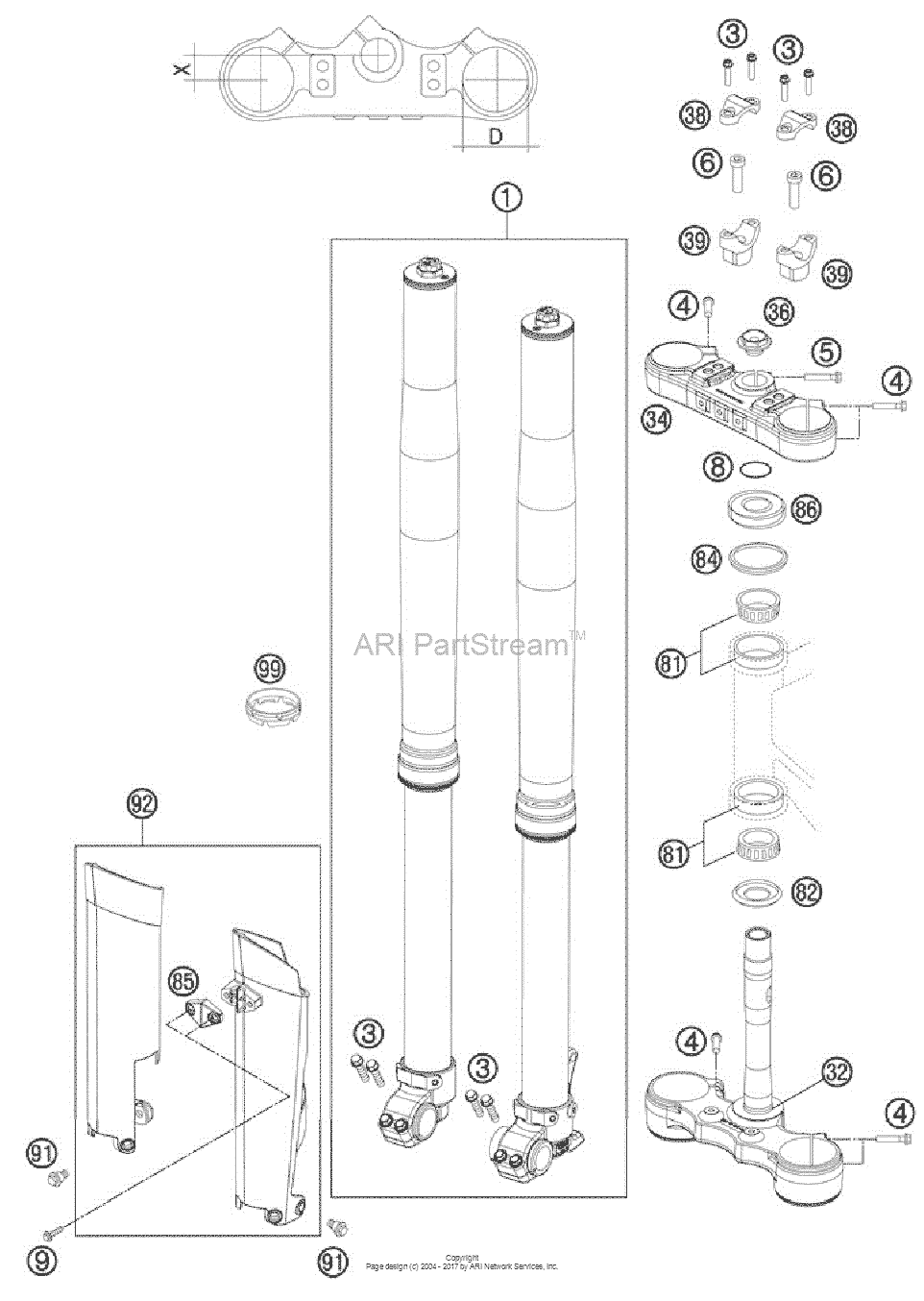

Front Fork, Triple Clamp Diagram KTM 500 500 EXC
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 500
- Model
- 500 EXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14187L6901 Gabel Wp 450/500 Exc/xc-W 1212 |
14187L6901 |
US $2,820.86 |
||
|
3
|
3
0025080256 Hh Collar Screw M8X25 Tx40TX40 |
0025080256 |
US $4.10 |
||
|
4
|
4
0025080306 Hh collar screw m8x30 tx40TX40 |
0025080306 |
US $3.89 |
||
|
5
|
5
0025080356 Hh Collar Screw M8X35 Tx40TX40 |
0025080356 |
US $3.04 |
||
|
6
|
6
0032100356S Ah-Collar Screw M10X35 Isa45TX40 |
0032100356S |
US $3.57 |
||
|
8
|
8
0770025035 O-ring 25x3,55 nbr70 0505 |
0770025035 |
US $0.53 |
||
|
9
|
9
0017060204 Screw F. Plastic K60X20Al Sw6WS=6 |
0017060204 |
US $2.89 |
||
| replacement | |||||
|
9
|
9
0017060206 Screw F. Plastic K60X20Al Sw6WS=6 |
0017060206 |
US $2.89 |
||
|
32
|
32
78101032020 Bottom Triple Clamp CplWS=6 |
78101032020 |
US $190.33 |
||
|
34
|
34
78101034020 Top Triple Clamp X=20MmWS=6 |
78101034020 |
US $135.63 |
||
|
36
|
36
54801036000 Steer.head screw m20x1,5 ws=27WS=6 |
54801036000 |
US $11.56 |
||
|
38
|
38
77201038000 Handlebar Clamp 28MmWS=6 |
77201038000 |
US $22.83 |
||
|
39
|
39
59401039032 Handleb.supp. d=28mm h=32mm 05(As Required) |
59401039032 |
US $36.67 |
||
|
39
|
39
59401039037 Handleb.supp. d=28mm h=37mm 05(As Required) |
59401039037 |
US $34.36 |
||
|
39
|
39
59401039042 Handleb.supp. d=28mm h=42mm 05(As Required) |
59401039042 |
US $36.67 |
||
|
81
|
81
54201081100 Tapered Roller Bearing Cpl. 06(As Required) |
54201081100 |
US $53.18 |
||
|
82
|
82
54601084100 O-Ring Support W. Sealing Lip(As Required) |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
82
|
82
77701084000 O-Ring Support W. Sealing Lip(As Required) |
77701084000 |
US $21.15 |
||
|
84
|
84
54601184000 Stearing head gasket top(As Required) |
54601184000 |
US $7.74 |
||
|
85
|
85
7800108500028 Clamp f. speed. cable d=6mm 08(As Required) |
7800108500028 |
US $4.10 |
||
|
86
|
86
78101086000 Steering Head Cover(As Required) |
78101086000 |
US $5.08 |
||
|
91
|
91
59001092050 Special Screw M6X12,5 Ws=8WS=8 |
59001092050 |
US $2.35 |
||
|
92
|
92
7800109410028
Fork protect. l/s+r/s white 09
WS=8 |
7800109410028 |
— | ||
| replacement | |||||
|
92
|
92
7800109420028 Fork Protect. L/s+R/s WhiteWS=8 |
7800109420028 |
US $33.08 |
||
|
99
|
99
48600698 Fork protection ring 0808 |
48600698 |
US $9.57 |
||
