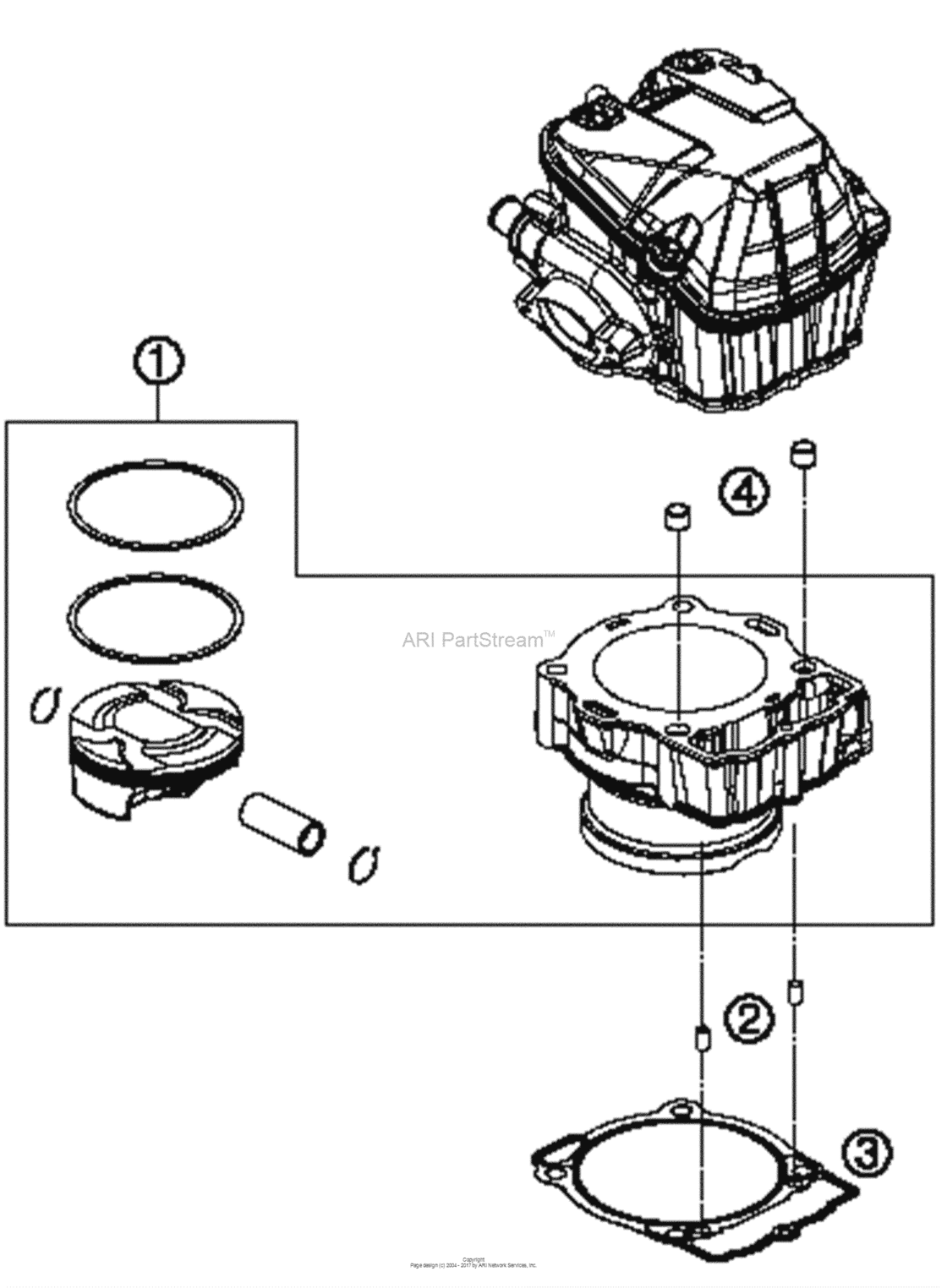

Cylinder Diagram KTM 500 500 EXC
- Year
- 2016
- Sales region
- US/EU
- Engine Capacity
- 500
- Model
- 500 EXC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78730038200 Cylinder + Piston Cpl12-14, As Required |
78730038200 |
US $937.50 |
||
|
2
|
2
59030023000 Dowel 6X8X11,512-14, As Required |
59030023000 |
US $2.92 |
||
|
3
|
3
78030035000 Cylinder base gasket12-14, As Required |
78030035000 |
US $8.11 |
||
|
4
|
4
58530014100 Dowel Bushing 10,2X12,5X1012-14, As Required |
58530014100 |
US $2.57 |
