	Description	OEM Part #	Price
1	1 77714069400 Speedometer Digital Km/h F21In 98, As Required	77714069400	US $329.14
	replacement
1	1 77714069600 SPEEDOMETER DIGITAL KM/H F21" 98, As Required	77714069600	US $345.63
2	2 77714069010 Battery Cover F. Speedometer 98, As Required	77714069010	US $33.68
3	3 58314068000 Battery f. speedom. m.a.e. 02 98, As Required	58314068000	US $9.64
10	10 54814068100 Cable for digital speedom. 06 98, As Required	54814068100	US $90.73
11	11 60111094000 Clamp 5/7 mm 06 98, As Required	60111094000	US $3.54
12	12 54814069050 Magnet For Digital Speedom. 03 98, As Required	54814069050	US $23.21
13	13 0471009104 Circlip Din0471- 9X1 Inox 98, As Required	0471009104	US $2.35
20	20 77714060000 Speedometer Bracket Exc/xcw 14 98, As Required	77714060000	US $15.79
21	21 0081645121 Ejot Delta Pt Screw 45X12-Z 98, As Required	0081645121	US $1.17
24	24 0024060206 Hh collar screw m6x20 tx30 TX30	0024060206	US $3.54
30	30 58011024300 Flasher Indicat.light Green'98 '98	58011024300	US $7.72
31	31 49111425200 Bulb 12v 2,3w (w2x4,6d) '98	49111425200	US $1.96
32	32 50210086000 Covering cap sfl16 '98	50210086000	US $3.54
36	36 78011065100 Ignition lock set str.le 08 '98	78011065100	US $138.89
37	37 50311066050 Ignition lock nut m24x1 '98	50311066050	US $7.19
38	38 58411066450 Washer f. ignition lock 03 '98	58411066450	US $6.22
39	39 40011166200 Key blank black "t" grip '98	40011166200	US $9.59
40	40 79611065050 Ignition Lock Bracket '98	79611065050	US $9.55
42	42 54813026000 Cable support 10/6mm 06 '98	54813026000	US $2.35
50	50 78003035000 Steering Head Lock 08 '98	78003035000	US $50.83
	replacement
50	50 78003035100 STEERING HEAD LOCK 08 '98	78003035100	US $24.07

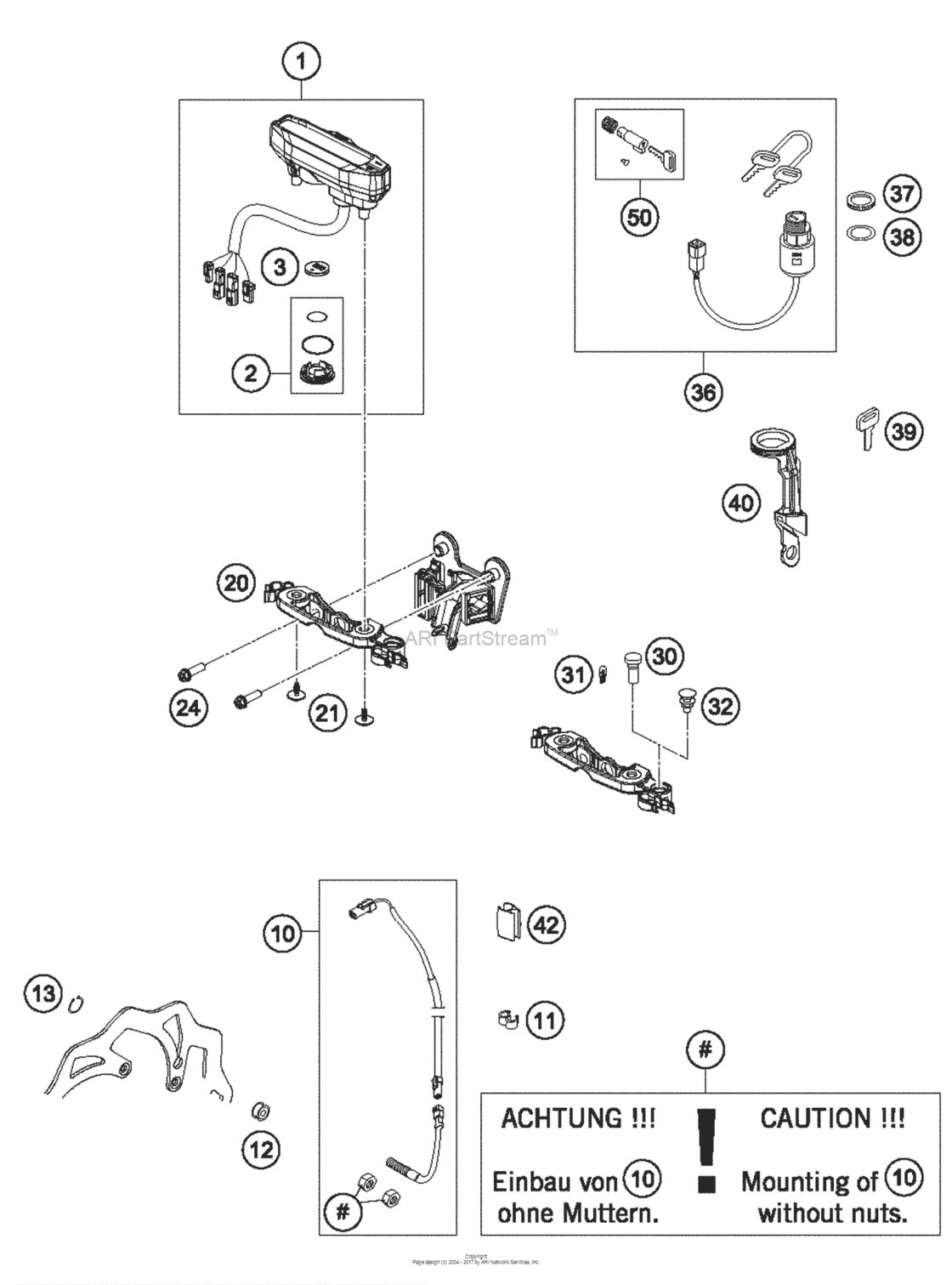

Instruments / Lock System Diagram KTM 500 500 EXC-F US/EU 18098099-940308

Instruments / Lock System Diagram KTM 500 500 EXC-F US/EU 18098099-940308
