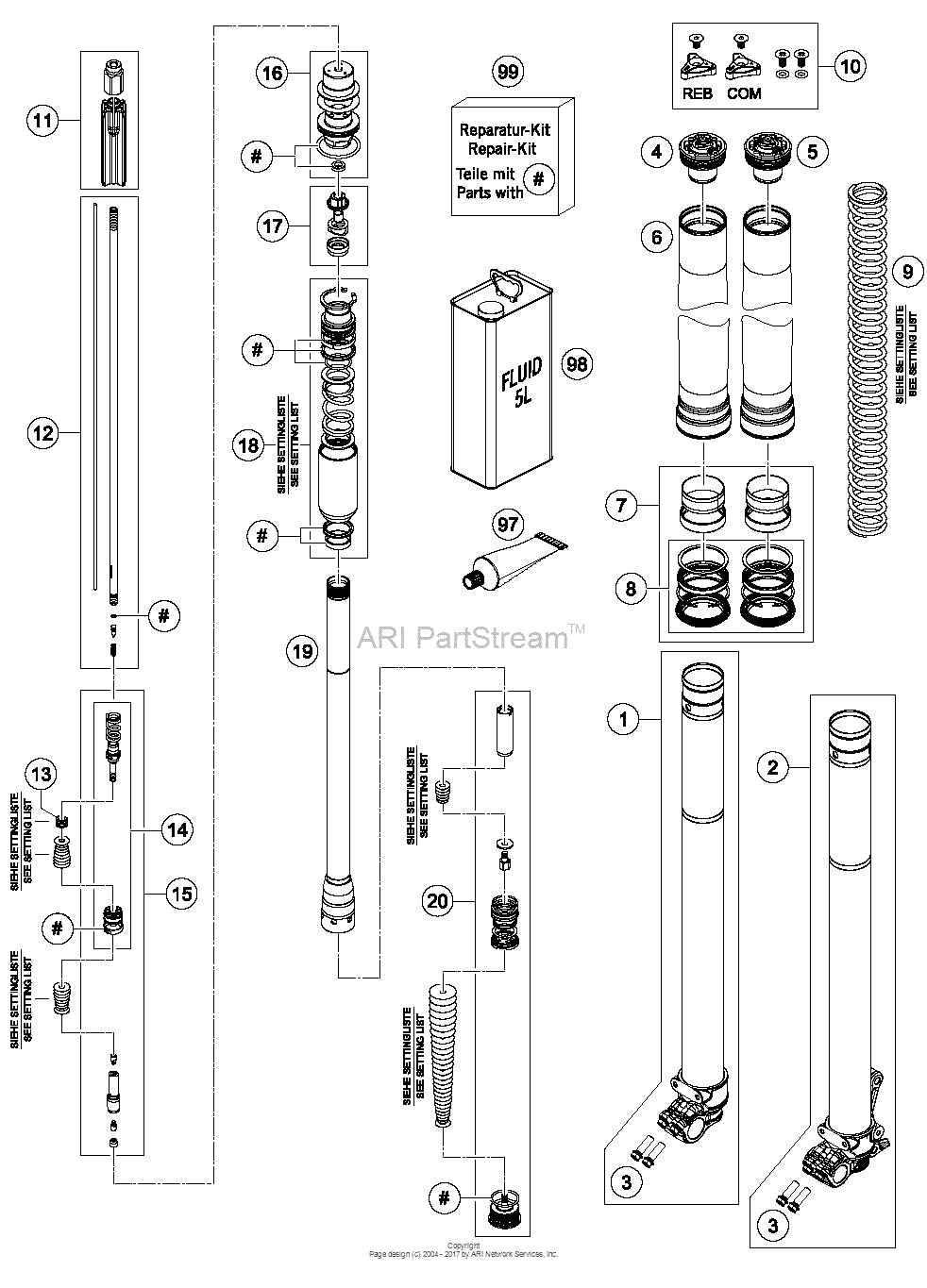

Front Fork Disassembled Diagram KTM 500 500 EXC Six Days
- Year
- 2016
- Sales region
- US/EU
- Engine Capacity
- 500
- Model
- 500 EXC Six Days
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48601326S1 Axle Clamp L/s With Inner TubeAs Required |
48601326S1 |
US $522.72 |
||
|
2
|
2
48601327S1 Axle Clamp R/s With Inner TubeAs Required |
48601327S1 |
US $495.86 |
||
|
3
|
3
0025080256 Hh Collar Screw M8X25 Tx40TX40 |
0025080256 |
US $4.10 |
||
|
4
|
4
48601050E Screw Cap M51X1,5 Reb. KplTX40 |
48601050E |
US $122.38 |
||
|
5
|
5
48601116E Screw Cap M51X1,5 CplTX40 |
48601116E |
US $118.66 |
||
|
6
|
6
48600736 Outer tube l577 d54/60mm 2lTX40 |
48600736 |
US $435.66 |
||
|
7
|
7
R14063
Fork Rep. Kit 48Mm Offroad
TX40 |
R14063 |
— | ||
|
8
|
8
R14040 Gasket Kit CplTX40 |
R14040 |
US $73.10 |
||
| replacement | |||||
|
8
|
8
RP10048T Gasket Kit CplTX40 |
RP10048T |
US $85.99 |
||
|
9
|
9
91410100S Spring 4,0N/mm Set D=4,9MmAs Required |
91410100S |
US $223.13 |
||
|
9
|
9
91410101S Spring 4,2N/mm Set D=4,9MmAs Required |
91410101S |
US $223.13 |
||
|
9
|
9
91410102S Spring 4,4N/mm Set D=4,9MmAs Required |
91410102S |
US $223.13 |
||
|
9
|
9
91410103S Spring 4,6N/mm Set D=4,9MmAs Required |
91410103S |
US $223.13 |
||
|
9
|
9
91410104S Spring 4,8N/mm Set D=4,9MmAs Required |
91410104S |
US $223.13 |
||
|
10
|
10
R14033 Screw Cap Small Part KitAs Required |
R14033 |
US $37.15 |
||
|
11
|
11
48601035S Spring Guide CplAs Required |
48601035S |
US $17.10 |
||
|
12
|
12
48601343S Piston Rod CplAs Required |
48601343S |
US $111.62 |
||
|
13
|
13
48600382 Shuttle valve spring c=0,4As Required |
48600382 |
US $2.67 |
||
|
14
|
14
R14056 Tap KitAs Required |
R14056 |
US $55.45 |
||
|
15
|
15
48601390S3 Adapter D20 Compr. CplAs Required |
48601390S3 |
US $100.03 |
||
|
16
|
16
R14035 Screw Sleeve KitAs Required |
R14035 |
US $74.43 |
||
|
17
|
17
4861025S1 Control Valve D21 CplAs Required |
4861025S1 |
US $41.58 |
||
|
18
|
18
48601315S4 Pressure Tank CplAs Required |
48601315S4 |
US $104.81 |
||
|
19
|
19
48601031S1 Tube L403 + AdapterAs Required |
48601031S1 |
US $125.53 |
||
|
20
|
20
48601522S Screw Cap CplAs Required |
48601522S |
US $71.47 |
||
|
97
|
97
T511 Silicone grease f. dust striAs Required |
T511 |
US $132.91 |
||
|
98
|
98
48601166S1 Fork Oil Sae4 5LAs Required |
48601166S1 |
US $218.08 |
||
|
99
|
99
R24002 O-Ring Set 4CsAs Required |
R24002 |
US $81.65 |
||
