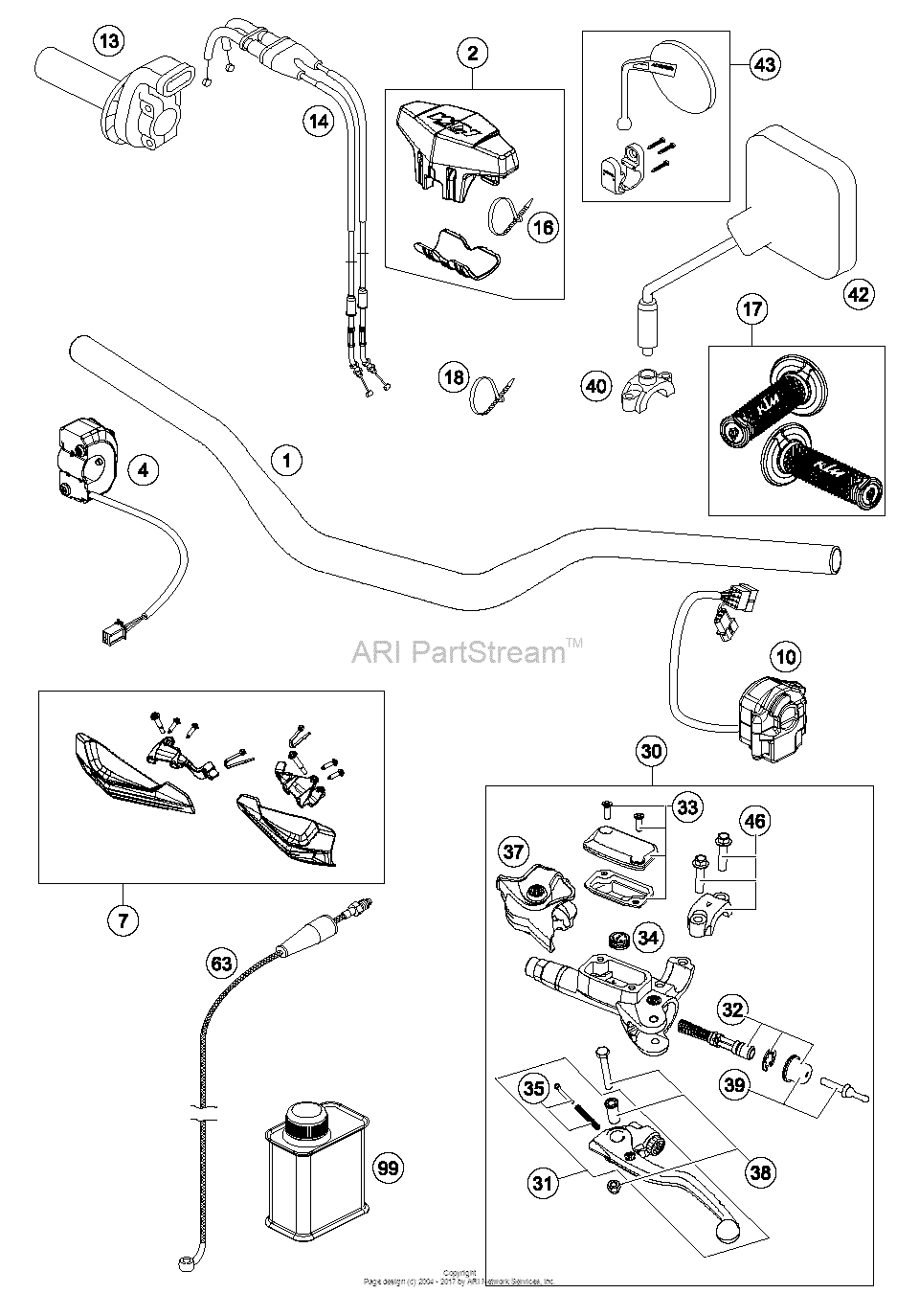

Handlebar, Controls Diagram KTM 500 500 EXC Six Days
- Year
- 2016
- Sales region
- US/EU
- Engine Capacity
- 500
- Model
- 500 EXC Six Days
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5480200130030 Handlebar D=28Mm Sx/exc Black2000 |
5480200130030 |
US $192.39 |
||
|
2
|
2
77202002144 Bar Pad Cpl2000 |
77202002144 |
US $26.96 |
||
|
4
|
4
76511074000 Start-emergency stop switch 082000 |
76511074000 |
US $53.06 |
||
|
6
|
6
0014050163 Hh collar screw m 5x16 ws=62000 |
0014050163 |
US $1.36 |
||
|
7
|
7
7770217900028 Handguard Kit2000 |
7770217900028 |
US $59.38 |
||
|
10
|
10
76511070000
Light switch l/s 08
2000 |
76511070000 |
— | ||
| replacement | |||||
|
10
|
10
76511070100 Light switch l/s 082000 |
76511070100 |
US $164.51 |
||
|
13
|
13
78102010000 Throttle Grip Cpl2000 |
78102010000 |
US $71.72 |
||
|
14
|
14
78102091000 Throttle Cable 4T2000 |
78102091000 |
US $73.51 |
||
| replacement | |||||
|
14
|
14
78102091100 Throttle Cable 4T2000 |
78102091100 |
US $60.42 |
||
|
16
|
16
44011076305 Cable tie 300/4,8mm blackAs Required |
44011076305 |
US $0.36 |
||
|
17
|
17
78102021000 Grip SetAs Required |
78102021000 |
US $25.62 |
||
|
18
|
18
44011076140 Cable tie 140/2,5mm blackAs Required |
44011076140 |
US $0.29 |
||
|
18
|
18
44011076200 Cable tie 200/3,6mm blackAs Required |
44011076200 |
US $0.39 |
||
|
30
|
30
54802030144 Master Cylinder CplAs Required |
54802030144 |
US $214.10 |
||
|
31
|
31
54802031000 Clutch lever cpl. brembo 06As Required |
54802031000 |
US $45.82 |
||
|
32
|
32
54802032000 Rep. kit piston 06As Required |
54802032000 |
US $43.21 |
||
|
33
|
33
5480200310030 Cover Hyd. Clutch Cpl. 20142014 |
5480200310030 |
US $40.39 |
||
|
34
|
34
54802051000 Valve2014 |
54802051000 |
US $16.88 |
||
|
35
|
35
54802052000 Bolt kpl.2014 |
54802052000 |
US $26.49 |
||
|
37
|
37
54802037000 Protection cap 062014 |
54802037000 |
US $18.77 |
||
|
38
|
38
54802038100 Lever screw cpl. 062014 |
54802038100 |
US $36.02 |
||
|
39
|
39
54802046000 Push rod cpl.2014 |
54802046000 |
US $20.01 |
||
|
40
|
40
58012040150 Clamp for mirror '942014 |
58012040150 |
US $18.90 |
||
|
42
|
42
58012040000 Rear mirror l/s2014 |
58012040000 |
US $41.60 |
||
|
42
|
42
58012140000 Rear mirror r/s2014 |
58012140000 |
US $42.67 |
||
|
43
|
43
5021204000030 Mirror l/s black acerbis '97'97 |
5021204000030 |
US $27.08 |
||
|
46
|
46
54802005100 Clamp cpl. 06'97 |
54802005100 |
US $23.49 |
||
|
63
|
63
54832063000 Clutch pipe 06'97 |
54832063000 |
US $87.04 |
||
|
99
|
99
00062030000 Brake fluid dot5.1 0,25l'97 |
00062030000 |
US $14.35 |
||
