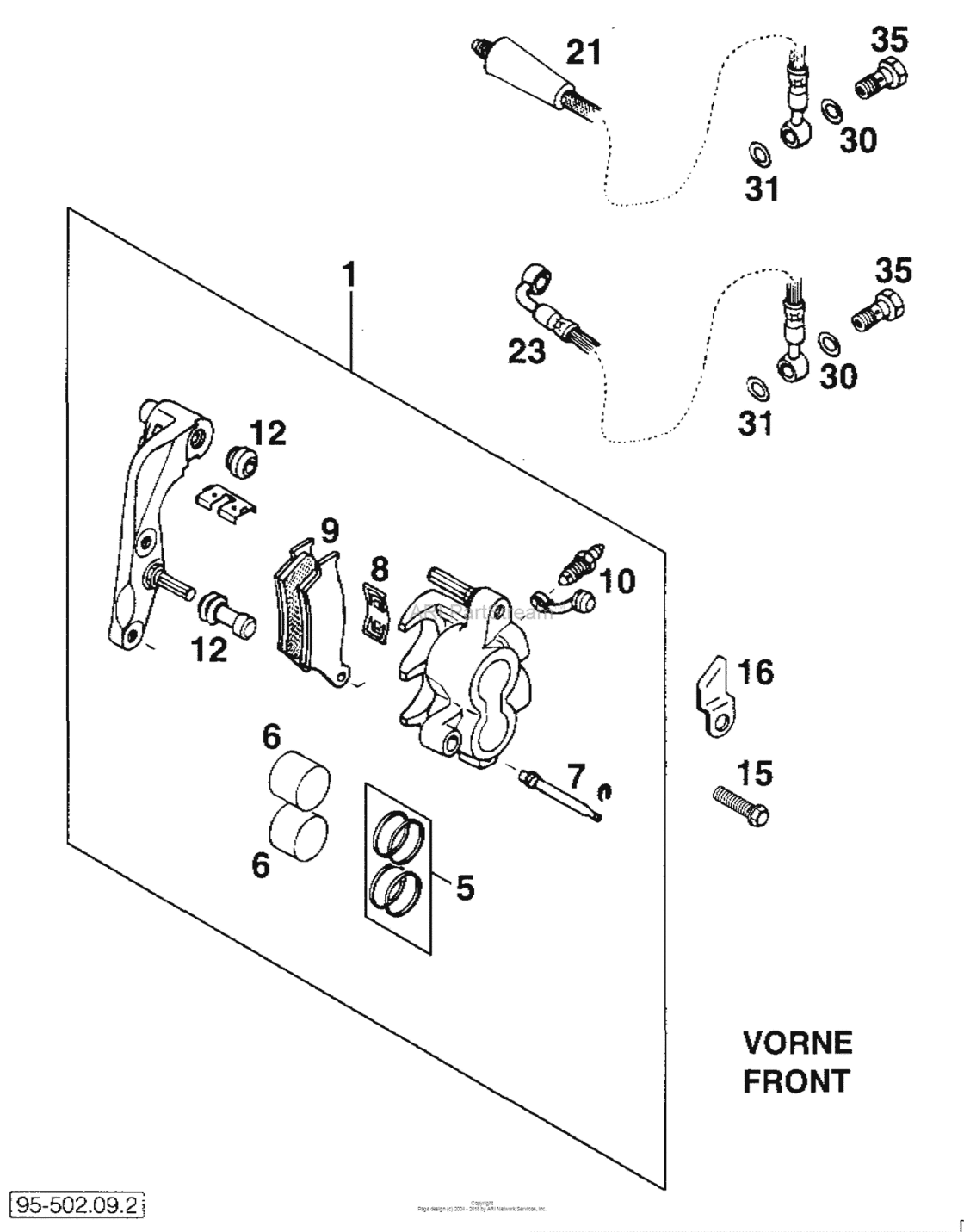

Brake Caliper Front Diagram KTM 500 500 SX
- Year
- 1995
- Sales region
- US/EU
- Engine Capacity
- 500
- Model
- 500 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54613201044
Fro.brake caliper cpl. 2piston
87 |
54613201044 |
— | ||
|
5
|
5
54613205000 Repair kit 28mm87 |
54613205000 |
US $20.21 |
||
|
6
|
6
54613206000 Repair kit piston 28mm87 |
54613206000 |
US $40.29 |
||
|
7
|
7
54613210000
Bolt 6x45
87 |
54613210000 |
— | ||
|
8
|
8
54613211000
Superseded By 54613212000
87 |
54613211000 |
— | ||
|
9
|
9
54613209044 Brake Pad Set Ferodo Id450Ff87 |
54613209044 |
US $50.71 |
||
| replacement | |||||
|
9
|
9
54613209244 Brake pad set ferodo id450ff87 |
54613209244 |
US $40.89 |
||
|
10
|
10
54513214000 Bleeder Screw With Cap87 |
54513214000 |
US $14.89 |
||
| replacement | |||||
|
10
|
10
60013020000 Bleeder Screw With Cap87 |
60013020000 |
US $6.27 |
||
|
12
|
12
54613218000 Cup Set Short87 |
54613218000 |
US $25.72 |
||
| replacement | |||||
|
12
|
12
54613218100 CUP SET SHORT87 |
54613218100 |
US $25.72 |
||
|
15
|
15
0015080303
Hh Collar Screw M8X30 Tx40
SW=10 |
0015080303 |
— | ||
| replacement | |||||
|
15
|
15
0025080306 Hh collar screw m8x30 tx40SW=10 |
0025080306 |
US $3.89 |
||
|
16
|
16
58313092000 ClampSW=10 |
58313092000 |
US $4.44 |
||
| replacement | |||||
|
16
|
16
50201090000
Clamp for brake hose '94
SW=10 |
50201090000 |
— | ||
|
21
|
21
50213029400
Brake hose 1470 mm wp
SW=10 |
50213029400 |
— | ||
|
21
|
21
50213129500 Brake hose 1190 mm marzocchiSW=10 |
50213129500 |
US $106.06 |
||
|
23
|
23
50213029300 Brake Hose 1580Mm Wp '97SW=10 |
50213029300 |
US $183.63 |
||
| replacement | |||||
|
23
|
23
58313011000 Brake hose 1580mm wp '97SW=10 |
58313011000 |
US $149.63 |
||
|
23
|
23
50213229500
Brake hose 1280mm
SW=10 |
50213229500 |
— | ||
|
30
|
30
42013226000 Cu-Seal Ring Din7603-10X16X1SW=10 |
42013226000 |
US $4.10 |
||
|
31
|
31
42013026000 Cu-seal ring din7603-10x16x1,5SW=10 |
42013026000 |
US $2.24 |
||
|
35
|
35
50213025000 Hollow Screw M10X1X19SW=10 |
50213025000 |
US $5.39 |
||
