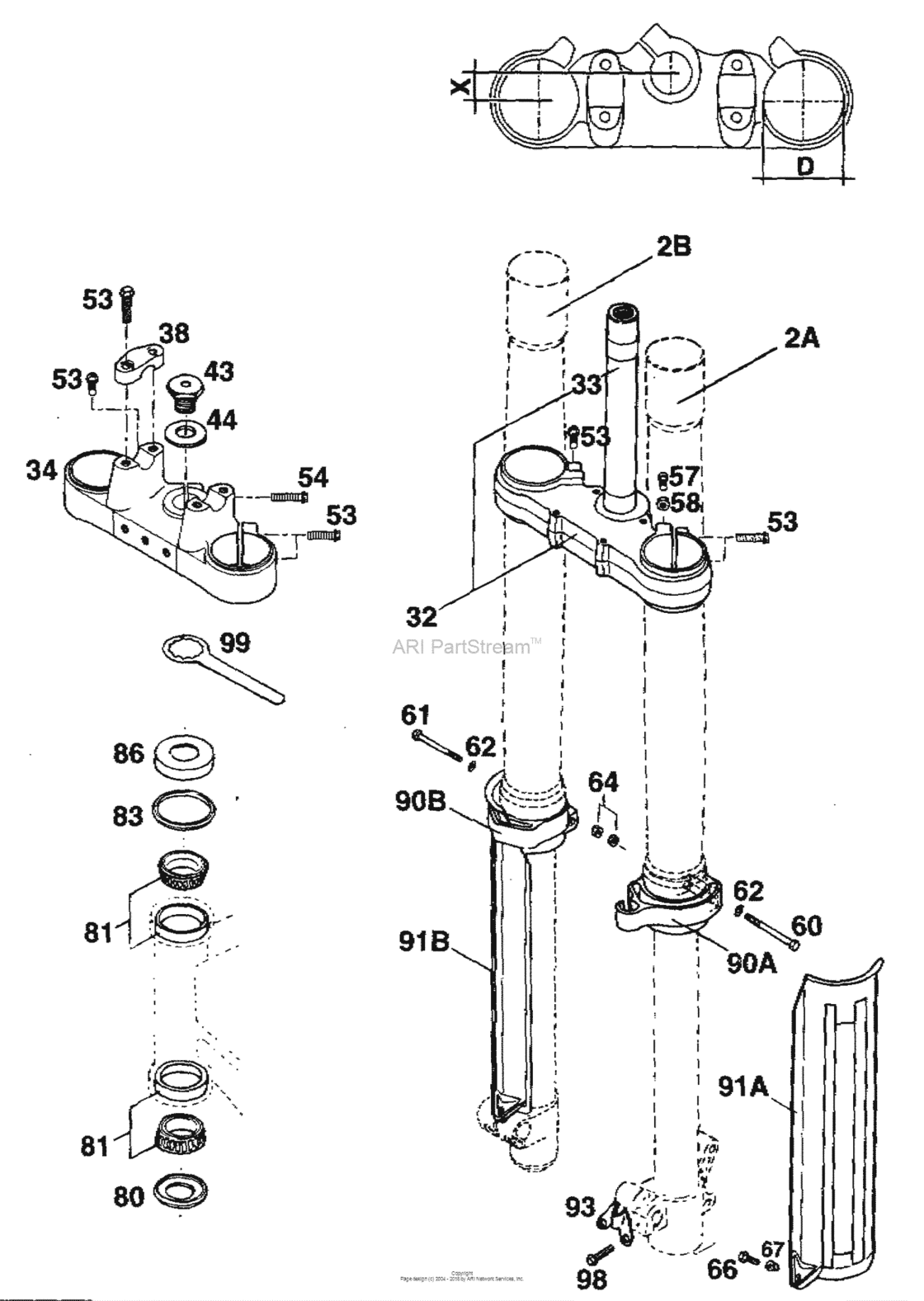

Front Fork Diagram KTM 500 500 SX
- Year
- 1995
- Sales region
- US/EU
- Engine Capacity
- 500
- Model
- 500 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2A
|
2A
50201602200
Fork Leg L/s
(As Required) |
50201602200 |
— | ||
|
2A
|
2A
54601602200
Fork Leg L/s
(As Required) |
54601602200 |
— | ||
|
2A
|
2A
50201602300
Fork Leg L/s
(As Required) |
50201602300 |
— | ||
|
2B
|
2B
50201702200
Fork Leg R/s
(As Required) |
50201702200 |
— | ||
|
2B
|
2B
54601702200
Fork Leg R/s
(As Required) |
54601702200 |
— | ||
|
2B
|
2B
50201702300
Fork Leg R/s
(As Required) |
50201702300 |
— | ||
|
32
|
32
54601032044
Bot.triple clamp x=18mm/d=57mm
(As Required) |
54601032044 |
— | ||
|
32
|
32
58001032744
Triple clamp bottom cpl. x=22
(As Required) |
58001032744 |
— | ||
|
33
|
33
50101033100 Fork Tube L=24491 |
50101033100 |
US $120.89 |
||
| replacement | |||||
|
33
|
33
54801133000 FORK TUBE L=24491 |
54801133000 |
US $78.15 |
||
|
34
|
34
54601034100
Top triple clp x=18mm/d=54mm
91 |
54601034100 |
— | ||
|
34
|
34
50201034000
Top Fork Plate
91 |
50201034000 |
— | ||
|
38
|
38
54601038000
Handlebar Clamp
95 |
54601038000 |
— | ||
| replacement | |||||
|
38
|
38
50301038000 Handlebar clamp d=22mm 200195 |
50301038000 |
US $21.54 |
||
|
43
|
43
56401043000 Hh screw m20x1,595 |
56401043000 |
US $25.01 |
||
| replacement | |||||
|
43
|
43
50301036000 Steer.head screw m20x1,5 ws=2795 |
50301036000 |
US $12.65 |
||
|
44
|
44
56401044000
Washer 21x38x3
95 |
56401044000 |
— | ||
|
53
|
53
0015080303
Hh Collar Screw M8X30 Tx40
SW=10 |
0015080303 |
— | ||
| replacement | |||||
|
53
|
53
0025080306 Hh collar screw m8x30 tx40SW=10 |
0025080306 |
US $3.89 |
||
|
54
|
54
0015080353 Hh Collar Screw M 8X35 Ws=10SW=10 |
0015080353 |
US $7.12 |
||
|
57
|
57
0933070203 Hh screw din0933-m 7x20SW=10 |
0933070203 |
US $1.58 |
||
|
58
|
58
0934070003 Hexagon nut din0934-m 7SW=10 |
0934070003 |
US $0.61 |
||
|
60
|
60
0931050403 Hh Screw Din931 M5X40SW=10 |
0931050403 |
US $2.18 |
||
|
61
|
61
0931050453 Hh Screw Din931 M5X45SW=10 |
0931050453 |
US $3.26 |
||
|
62
|
62
0125050003 Washer Din0125-A 5,3SW=10 |
0125050003 |
US $2.18 |
||
|
64
|
64
0985050003 Self Locking Nut Din0985-M 5SW=10 |
0985050003 |
US $3.26 |
||
|
66
|
66
0015050163 Hh Collar Screw M 5X16 Ws=8SW=8 |
0015050163 |
US $1.31 |
||
|
67
|
67
54601094100 Collar bushing f.sliding prot.SW=8 |
54601094100 |
US $5.39 |
||
|
80
|
80
54601084100 O-Ring Support W. Sealing Lip91 |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
80
|
80
77701084000 O-Ring Support W. Sealing Lip91 |
77701084000 |
US $21.15 |
||
|
81
|
81
54201081000 Tapered Roller Bearing Cpl. 0691 |
54201081000 |
US $62.54 |
||
| replacement | |||||
|
81
|
81
54201081100 Tapered Roller Bearing Cpl. 0691 |
54201081100 |
US $53.18 |
||
|
83
|
83
54601184000 Stearing head gasket top91 |
54601184000 |
US $7.74 |
||
|
86
|
86
54201086000 Steering Head Cover91 |
54201086000 |
US $8.11 |
||
| replacement | |||||
|
86
|
86
78101086000 Steering Head Cover91 |
78101086000 |
US $5.08 |
||
|
90A
|
90A
54601090000
Protector guide l/s white
91 |
54601090000 |
— | ||
|
90B
|
90B
54601190000
Protector guide r/s white
91 |
54601190000 |
— | ||
|
91A
|
91A
54601091000 Sliding protector l/s white91 |
54601091000 |
US $23.70 |
||
| replacement | |||||
|
91A
|
91A
5460109100030 Sliding protector l/s black91 |
5460109100030 |
US $19.14 |
||
|
91B
|
91B
54601191000
Sliding protector r/s white
91 |
54601191000 |
— | ||
|
93
|
93
50201090000
Clamp for brake hose '94
94 |
50201090000 |
— | ||
|
98
|
98
0015070253
Hh Collar Screw M 7X25 Ws=8
94 |
0015070253 |
— | ||
|
99
|
99
54212035000
Ring wrench ws=32
94 |
54212035000 |
— | ||
