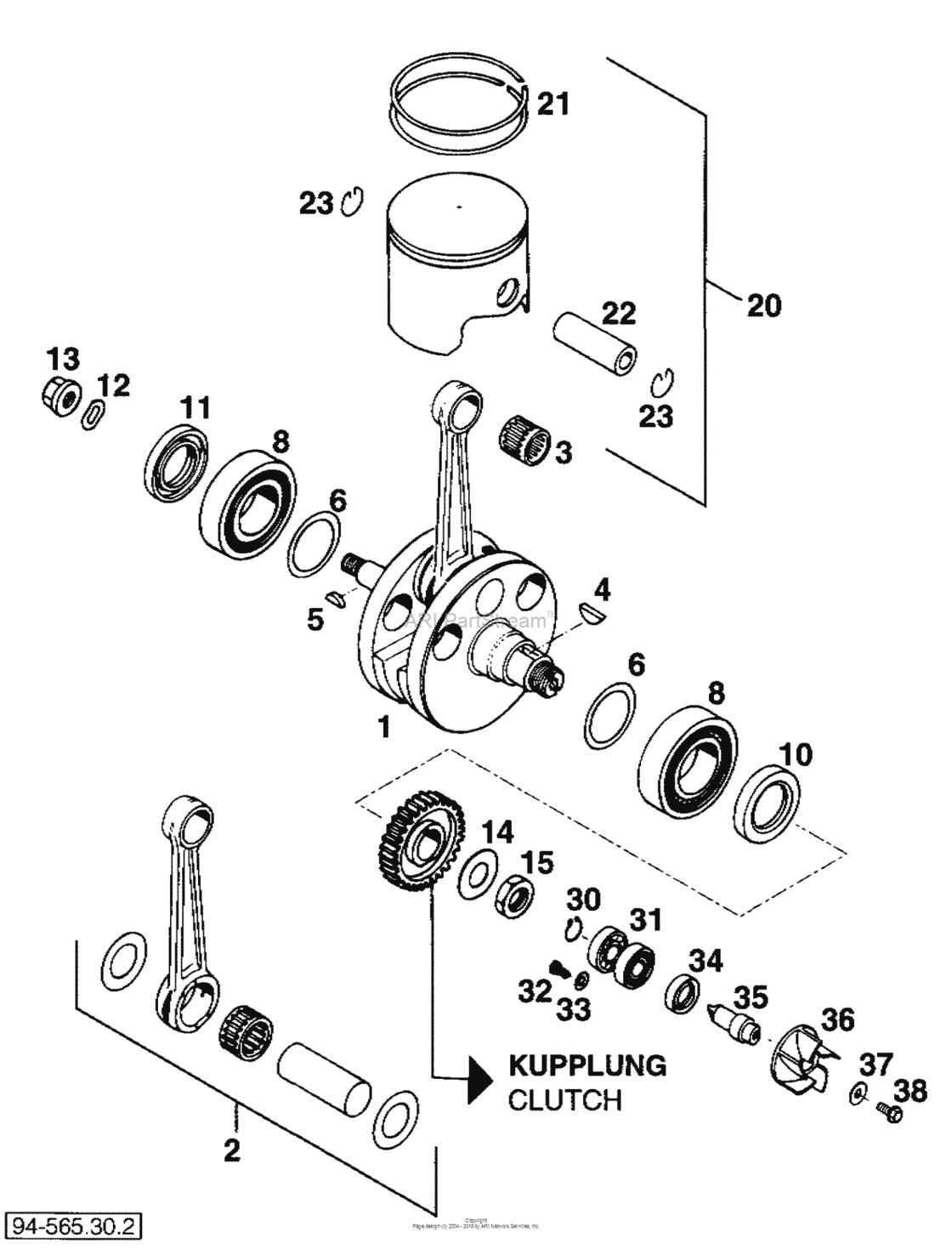

Crankshaft, Piston Diagram KTM 500 500 SX
- Year
- 1995
- Sales region
- US/EU
- Engine Capacity
- 500
- Model
- 500 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56530418000
Crankshaft 70mm hub 440
(As Required) |
56530418000 |
— | ||
|
1
|
1
56530218000
Crankshaft 82mm hub
(As Required) |
56530218000 |
— | ||
|
2
|
2
56530018500
Crankshaft 80mm hub 500
(As Required) |
56530018500 |
— | ||
|
2
|
2
56530215044
Conn.rod repair kit 350/550
(As Required) |
56530215044 |
— | ||
|
3
|
3
56530234000
Needle bearing 20x24x23
(As Required) |
56530234000 |
— | ||
|
4
|
4
0888050650 Woodruff Key 5X6,5 Harded(As Required) |
0888050650 |
US $0.92 |
||
| replacement | |||||
|
4
|
4
6946005 Woodruff Key 5X6,5 Harded(As Required) |
6946005 |
US $0.92 |
||
|
5
|
5
0888030050 Woodruff Key Din6888-3X5X13(As Required) |
0888030050 |
US $2.60 |
||
|
6
|
6
56530081000 Shim washer 36x48x0,10(As Required) |
56530081000 |
US $4.10 |
||
|
6
|
6
56530081100 Shim washer 36x48x0,15(As Required) |
56530081100 |
US $1.28 |
||
|
6
|
6
56530081300 Shim washer 36x48x0,30(As Required) |
56530081300 |
US $1.28 |
||
|
8
|
8
56530123000 Cyl.roller bear. nj 207 ecp c3(As Required) |
56530123000 |
US $92.29 |
||
|
10
|
10
0760325271 Shaft seal ring 32x52x7b(As Required) |
0760325271 |
US $27.56 |
||
| replacement | |||||
|
10
|
10
0760325272 Shaft seal ring 32x52x7 b(As Required) |
0760325272 |
US $16.49 |
||
|
11
|
11
0760305272
Radial Seal Ring
(As Required) |
0760305272 |
— | ||
|
12
|
12
54330029000
Locking Ring Vsk 12
(As Required) |
54330029000 |
— | ||
| replacement | |||||
|
12
|
12
50230029012 Locking ring vsk 12(As Required) |
50230029012 |
US $2.19 |
||
|
13
|
13
51030028100 Collar Nut M12X1 Left Ws=17SW=17 |
51030028100 |
US $10.35 |
||
|
14
|
14
56030048000
Lock washer 21x40x1
SW=17 |
56030048000 |
— | ||
|
15
|
15
0936200155 Hexagon nut din0936-m20x1,5SW=17 |
0936200155 |
US $8.52 |
||
|
20
|
20
56530007000
Superseded By 56530007000/i
SW=17 |
56530007000 |
— | ||
|
20
|
20
56530207000
Superseded By 56530207000/i
SW=17 |
56530207000 |
— | ||
|
21
|
21
56530032000
Pistonring 89x1,25 440/500 cc
SW=17 |
56530032000 |
— | ||
|
21
|
21
56330032002
Pistonring 92,25x1,25
SW=17 |
56330032002 |
— | ||
|
22
|
22
56330033000
Piston pin 20x12x52,4
SW=17 |
56330033000 |
— | ||
|
23
|
23
56330074000 Wire lock ring a20SW=17 |
56330074000 |
US $2.57 |
||
|
30
|
30
0471120010 Circlip din0471-12x1SW=17 |
0471120010 |
US $1.12 |
||
|
31
|
31
0625060016 Groov.ball bear. 6001.2rsr c3SW=17 |
0625060016 |
US $23.89 |
||
|
32
|
32
0084040063 Cyl.head screw din0084-m 4x 6aSW=17 |
0084040063 |
US $1.62 |
||
|
33
|
33
0125050003 Washer Din0125-A 5,3SW=17 |
0125050003 |
US $2.18 |
||
|
34
|
34
0760152472 Shaft seal ring 15x24x7 a-duoSW=17 |
0760152472 |
US $30.09 |
||
|
35
|
35
54435010000 Water pump shaftSW=17 |
54435010000 |
US $87.87 |
||
|
36
|
36
56535005300 Water pump wheelSW=17 |
56535005300 |
US $8.81 |
||
|
37
|
37
0021050003 Washer din9021-a 5,3SW=17 |
0021050003 |
US $1.29 |
||
|
38
|
38
0015050123
Hh collar screw m 5x12 ws=8
SW=8 |
0015050123 |
— | ||
| replacement | |||||
|
38
|
38
0025050126 Hh collar screw m5x12 tx30SW=8 |
0025050126 |
US $3.38 |
||
