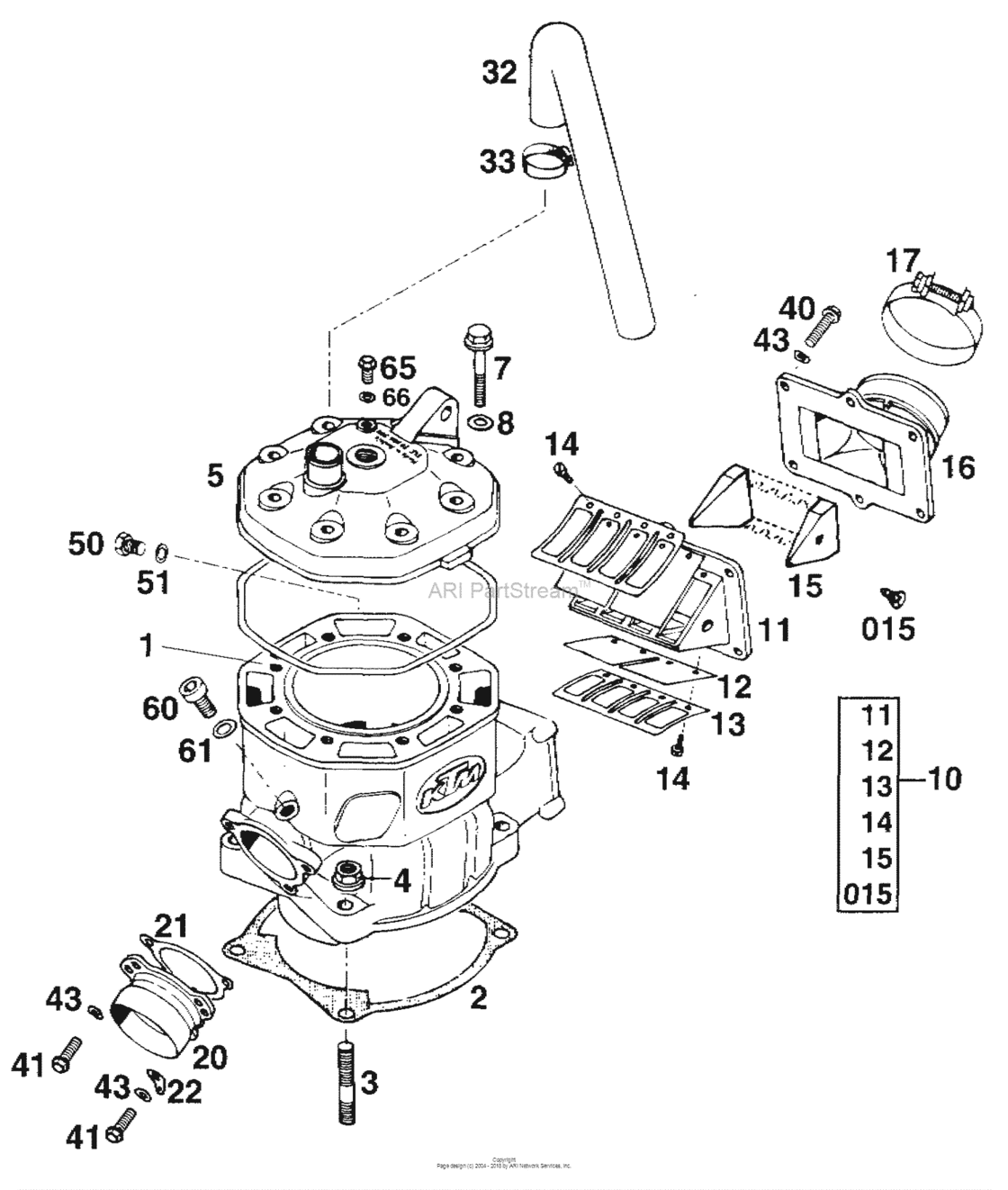

Cylinder Diagram KTM 500 500 SX
- Year
- 1995
- Sales region
- US/EU
- Engine Capacity
- 500
- Model
- 500 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56530405000
Cylinder 89mm 440
SW=8 |
56530405000 |
— | ||
|
1
|
1
56530005400
Cylinder 500/iii 89mm
SW=8 |
56530005400 |
— | ||
|
1
|
1
56530205100
Cylinder 92,25 mm 540 '91
SW=8 |
56530205100 |
— | ||
|
2
|
2
56530030000 Cylinder base gasket 0,2mm(As Required) |
56530030000 |
US $4.23 |
||
|
2
|
2
56530030100
Cylinder base gasket 0,3mm
(As Required) |
56530030100 |
— | ||
|
2
|
2
56530030200
Cylinder base gasket 0,5mm
(As Required) |
56530030200 |
— | ||
|
3
|
3
0835100451
Stud Din0835-M10X45
(As Required) |
0835100451 |
— | ||
| replacement | |||||
|
3
|
3
0835100456 Stud din0835-m10x45(As Required) |
0835100456 |
US $3.77 |
||
|
3
|
3
0835100503 Stud din0835-m10x50(As Required) |
0835100503 |
US $4.88 |
||
|
4
|
4
0331100003 Collar nut din6923-m10 ws=15SW=15 |
0331100003 |
US $2.02 |
||
|
5
|
5
56530406300
Cylinder head 440 '95
SW=15 |
56530406300 |
— | ||
|
5
|
5
56530006300
Cylinder head 500 495/iii
SW=15 |
56530006300 |
— | ||
|
5
|
5
56530206300
Cylinder head 540
SW=15 |
56530206300 |
— | ||
|
6
|
6
56530036000
Cylinder head gasket
SW=15 |
56530036000 |
— | ||
|
7
|
7
56530079000
Collar screw m8x42 ws=13 10.9
SW=15 |
56530079000 |
— | ||
| replacement | |||||
|
7
|
7
56530079000S Hh Collar Screw M8X44 Ws13SW=15 |
56530079000S |
US $1.60 |
||
|
8
|
8
56530080000 Cu-seal ring 8 x 16 x 1SW=15 |
56530080000 |
US $2.24 |
||
|
10
|
10
56330051044
Reed valve case cpl
SW=15 |
56330051044 |
— | ||
|
11
|
11
56330051000
Superseded By 56330051044
SW=15 |
56330051000 |
— | ||
|
12
|
12
56330052000 Reed valve 0,53 mm e24 550 ccSW=15 |
56330052000 |
US $17.48 |
||
|
13
|
13
56330053000
Stop plate 495/iii
SW=15 |
56330053000 |
— | ||
|
14
|
14
0084040083 Cyl.head screw din0084-m 4x8 aSW=15 |
0084040083 |
US $0.27 |
||
|
15
|
15
55530054000
Velocity insert
SW=15 |
55530054000 |
— | ||
|
15
|
15
0982550133 Sheet met.scr.din7982 5,5x13SW=15 |
0982550133 |
US $0.85 |
||
|
16
|
16
56530050500 Intake AdapterSW=15 |
56530050500 |
US $125.44 |
||
| replacement | |||||
|
16
|
16
56530050300
Intake flange dell'orto
SW=15 |
56530050300 |
— | ||
|
16
|
16
56530050300
Intake flange dell'orto
SW=15 |
56530050300 |
— | ||
|
17
|
17
56530061000
Clamp sm12/a60
SW=15 |
56530061000 |
— | ||
|
20
|
20
54305073100
Exhaust flange cpl.440'95
SW=15 |
54305073100 |
— | ||
|
20
|
20
54305073000
Exhaust flange cpl.500/550
SW=15 |
54305073000 |
— | ||
|
21
|
21
54430046000 Exhaust gasketSW=15 |
54430046000 |
US $4.78 |
||
|
22
|
22
51005074000 Retaining plateSW=15 |
51005074000 |
US $2.11 |
||
|
32
|
32
54435025000 Radiator hose 18x25 130 degreeSW=15 |
54435025000 |
US $26.54 |
||
|
33
|
33
10001020000 Hose Clamp 18-29SW=15 |
10001020000 |
US $4.71 |
||
|
40
|
40
0015060253
Hh Collar Screw M6X25 Tx30
SW=8 |
0015060253 |
— | ||
| replacement | |||||
|
40
|
40
0025060256 Hh collar screw m6x25 tx30SW=8 |
0025060256 |
US $2.45 |
||
|
41
|
41
0015060203
Hh Collar Screw M 6X20 Ws=8
SW=8 |
0015060203 |
— | ||
| replacement | |||||
|
41
|
41
0025060206 Hh collar screw m6x20 tx30SW=8 |
0025060206 |
US $1.97 |
||
|
43
|
43
0137060000
Spring Washer Din0137-B 6
SW=8 |
0137060000 |
— | ||
| replacement | |||||
|
43
|
43
0137060003 Spring Washer Din0137-B 6SW=8 |
0137060003 |
US $0.43 |
||
|
50
|
50
54630021000 Hh plug m10x1 ws13SW13 |
54630021000 |
US $5.15 |
||
|
51
|
51
58038032100 Seal ring 8 x 12 x 2SW13 |
58038032100 |
US $0.85 |
||
|
60
|
60
0984100163
Ah screw din7984 m10x16
SW13 |
0984100163 |
— | ||
|
61
|
61
58038032010 Copper Gasket Din7603-10X14X1(As Required) |
58038032010 |
US $1.77 |
||
| replacement | |||||
|
61
|
61
0603100141 Copper Gasket Din7603-10X14X1(As Required) |
0603100141 |
US $2.24 |
||
|
65
|
65
0015060123
Hh Collar Screw M 6X12 Ws=8
SW=8 |
0015060123 |
— | ||
| replacement | |||||
|
65
|
65
0025060126 Hh collar screw m6x12 tx30SW=8 |
0025060126 |
US $3.96 |
||
|
66
|
66
58036065000
Cu-Seal Ring Din7603-6X10X1
SW=8 |
58036065000 |
— | ||
| replacement | |||||
|
66
|
66
0603061001 Cu-Seal Ring Din7603-6X10X1SW=8 |
0603061001 |
US $2.64 |
||
