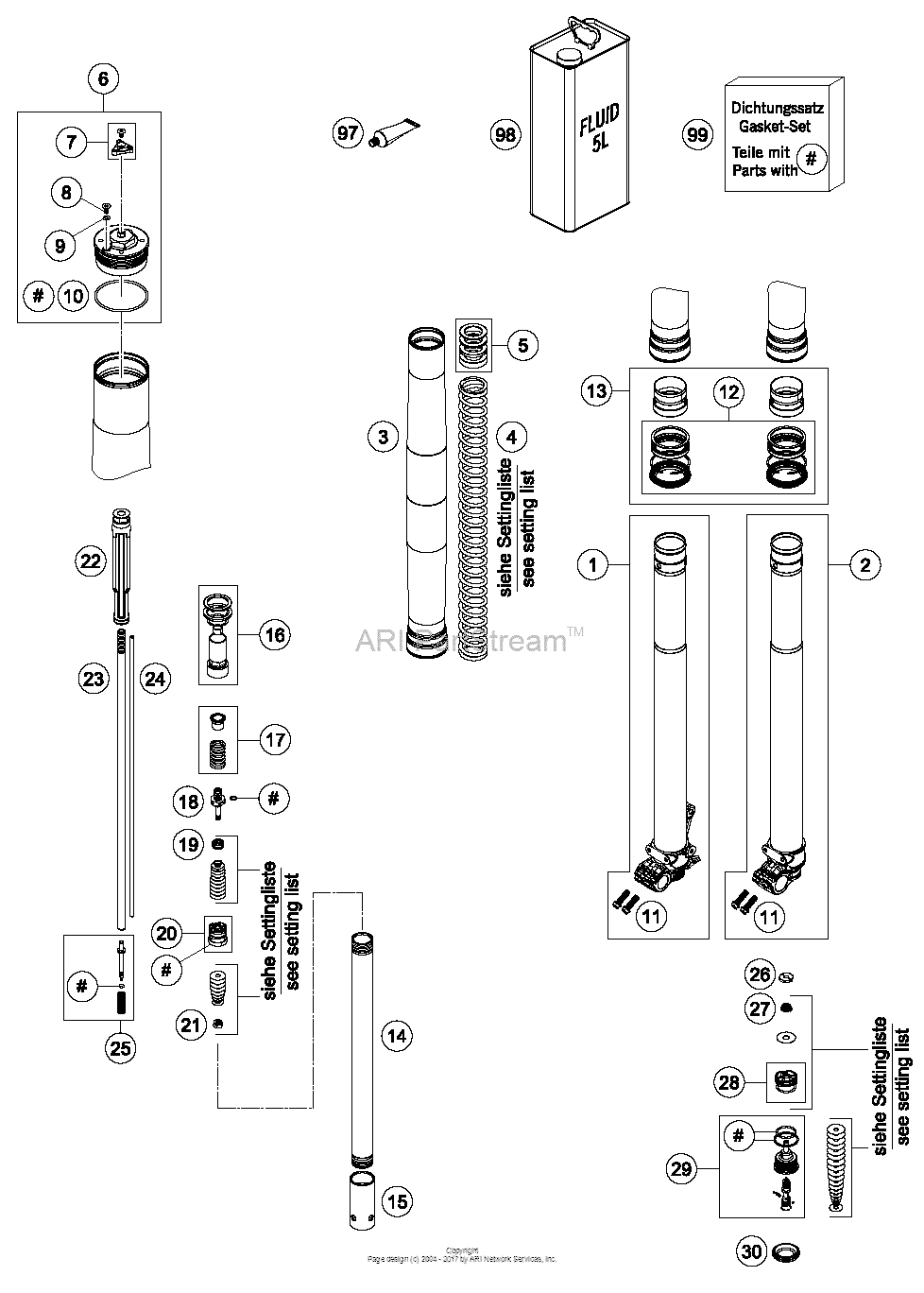

Front Fork Disassembled Diagram KTM 500 500 XC-W
- Year
- 2016
- Sales region
- US/EU
- Engine Capacity
- 500
- Model
- 500 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48601437S1 Axle Clamp L/s + Tube CplAs Required |
48601437S1 |
US $517.19 |
||
|
2
|
2
48601438S1 Axle Clamp R/s + Tube CplAs Required |
48601438S1 |
US $517.19 |
||
|
3
|
3
48600736 Outer tube l577 d54/60mm 2lAs Required |
48600736 |
US $435.66 |
||
|
4
|
4
91410012S Spring 3,8n/mm set d=4,9mmAs Required |
91410012S |
US $223.13 |
||
|
4
|
4
91410013S Spring 4,0n/mm set d=5,0mmAs Required |
91410013S |
US $223.13 |
||
|
4
|
4
91410014S Spring 4,2n/mm set d=5,0mmAs Required |
91410014S |
US $223.13 |
||
|
4
|
4
91410015S Spring 4,4n/mm set d=5,1mmAs Required |
91410015S |
US $223.13 |
||
|
4
|
4
91410016S Spring 4,6n/mm setAs Required |
91410016S |
US $223.13 |
||
|
4
|
4
91410017S Spring 4,8n/mm setAs Required |
91410017S |
US $334.41 |
||
|
5
|
5
R14026 Spring Spacer KitAs Required |
R14026 |
US $80.43 |
||
|
6
|
6
48601561E Screw Cap M51X1,5 BlackAs Required |
48601561E |
US $125.53 |
||
|
7
|
7
48601118S Adjuster Reb. Red CplAs Required |
48601118S |
US $3.03 |
||
|
8
|
8
48600481 Vent screw m4x8As Required |
48600481 |
US $2.33 |
||
|
9
|
9
48600046 O-ring nbr 3x1,5As Required |
48600046 |
US $2.47 |
||
|
10
|
10
46810340 O-ring nbr 45x2As Required |
46810340 |
US $4.01 |
||
|
11
|
11
0025080256 Hh Collar Screw M8X25 Tx40TX40 |
0025080256 |
US $4.10 |
||
|
12
|
12
R14040 Gasket Kit CplTX40 |
R14040 |
US $73.10 |
||
| replacement | |||||
|
12
|
12
RP10048T Gasket Kit CplTX40 |
RP10048T |
US $85.99 |
||
|
13
|
13
R14063
Fork Rep. Kit 48Mm Offroad
TX40 |
R14063 |
— | ||
|
14
|
14
48600763 Pipe d23/l350 09TX40 |
48600763 |
US $64.41 |
||
|
15
|
15
48600764 Adapter sleeve d23/d28TX40 |
48600764 |
US $17.12 |
||
|
16
|
16
48600830S Screw sleeve m27x0,8TX40 |
48600830S |
US $24.09 |
||
|
17
|
17
48600511S Rebound Spring L32 C17 CplTX40 |
48600511S |
US $4.01 |
||
|
18
|
18
48600576 Piston rod reboundTX40 |
48600576 |
US $14.28 |
||
|
19
|
19
35480377 Spring check valve d=0,5TX40 |
35480377 |
US $2.53 |
||
|
20
|
20
48600575S Piston Rebound + Piston RingTX40 |
48600575S |
US $30.26 |
||
|
21
|
21
40540486 Nut m6x0,5 reboundTX40 |
40540486 |
US $5.20 |
||
|
22
|
22
48600557S Hydr.stop l=200 d=31,9 cpl. 07TX40 |
48600557S |
US $43.79 |
||
|
23
|
23
48600568 Piston rod d=12 l=554 aluTX40 |
48600568 |
US $133.09 |
||
|
24
|
24
48600559 Adjusting tube l=520 07TX40 |
48600559 |
US $40 |
||
|
25
|
25
48600277S Adjusting Needle CplTX40 |
48600277S |
US $11.95 |
||
|
26
|
26
48600163 Check valve nut m6x0,5 d=2TX40 |
48600163 |
US $13.80 |
||
|
27
|
27
48600202 Spring check valve d=0,7TX40 |
48600202 |
US $2.28 |
||
|
28
|
28
48600047S Piston + O-RingTX40 |
48600047S |
US $16.32 |
||
|
29
|
29
48600586E Tap Compression CplTX40 |
48600586E |
US $96.46 |
||
|
30
|
30
48600141 Rubber cap d=35mmTX40 |
48600141 |
US $3.42 |
||
|
97
|
97
T511 Silicone grease f. dust striTX40 |
T511 |
US $132.91 |
||
|
98
|
98
48601166S1 Fork Oil Sae4 5LTX40 |
48601166S1 |
US $218.08 |
||
|
99
|
99
R14064 O-Ring Kit Fork 48MmTX40 |
R14064 |
US $17.66 |
||
