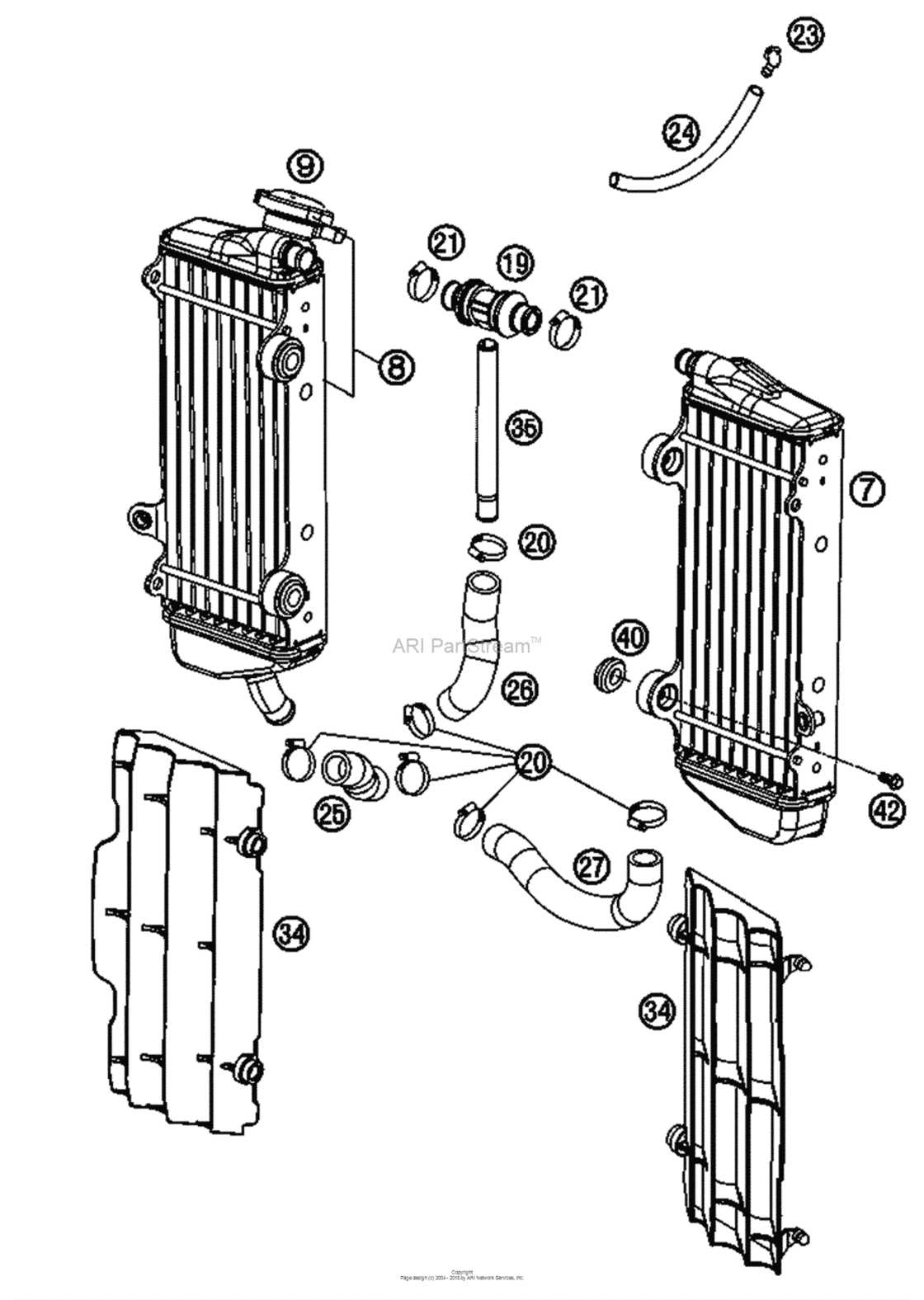

Cooling System Diagram KTM 505 505 SX-F
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 505
- Model
- 505 SX-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
7
|
7
77335007000 Radiator l/s "45519u" 0707 |
77335007000 |
US $258.08 |
||
| replacement | |||||
|
7
|
7
77335007100 RADIATOR L/S SX-F T-RAD 0907 |
77335007100 |
US $245.40 |
||
|
8
|
8
77335008000 Radiator r/s "45518u" 0707 |
77335008000 |
US $365.57 |
||
|
9
|
9
58035016000 Radiator Cap Small 20,3 Psi07 |
58035016000 |
US $33.10 |
||
|
19
|
19
77335026000 T-connector cpl. ┤07'07 |
77335026000 |
US $49.61 |
||
|
20
|
20
10001020000 Hose Clamp 18-29'07 |
10001020000 |
US $4.71 |
||
|
21
|
21
42013037200
Hose clamp gemi 12/22
'07 |
42013037200 |
— | ||
| replacement | |||||
|
21
|
21
42013037400 Hose Clamp Norma 14/24'07 |
42013037400 |
US $4.17 |
||
|
23
|
23
50303089000 Angle piece '97'97 |
50303089000 |
US $4.52 |
||
|
24
|
24
31007107001 Pvc-Hose 6X9(As required) |
31007107001 |
US $5.85 |
||
| replacement | |||||
|
24
|
24
50335030001 Pvc-Hose 6X9(As required) |
50335030001 |
US $5.12 |
||
|
25
|
25
77335027000 Radiator hose r/s(As required) |
77335027000 |
US $6.66 |
||
|
26
|
26
77335024000 Hose engine-radiator 0707 |
77335024000 |
US $10.93 |
||
|
27
|
27
77335025000 Radiator hose l/s07 |
77335025000 |
US $13.23 |
||
|
34
|
34
7733503400030
Radiator protection black 07
07 |
7733503400030 |
— | ||
|
35
|
35
77335073000 Hose connector 4 stroke 0707 |
77335073000 |
US $16.51 |
||
|
40
|
40
41001052000 Rubber Sleeve D=12Mm07 |
41001052000 |
US $5.46 |
||
|
42
|
42
0015060123
Hh Collar Screw M 6X12 Ws=8
WS=8 |
0015060123 |
— | ||
| replacement | |||||
|
42
|
42
0025060126 Hh collar screw m6x12 tx30WS=8 |
0025060126 |
US $3.96 |
||
