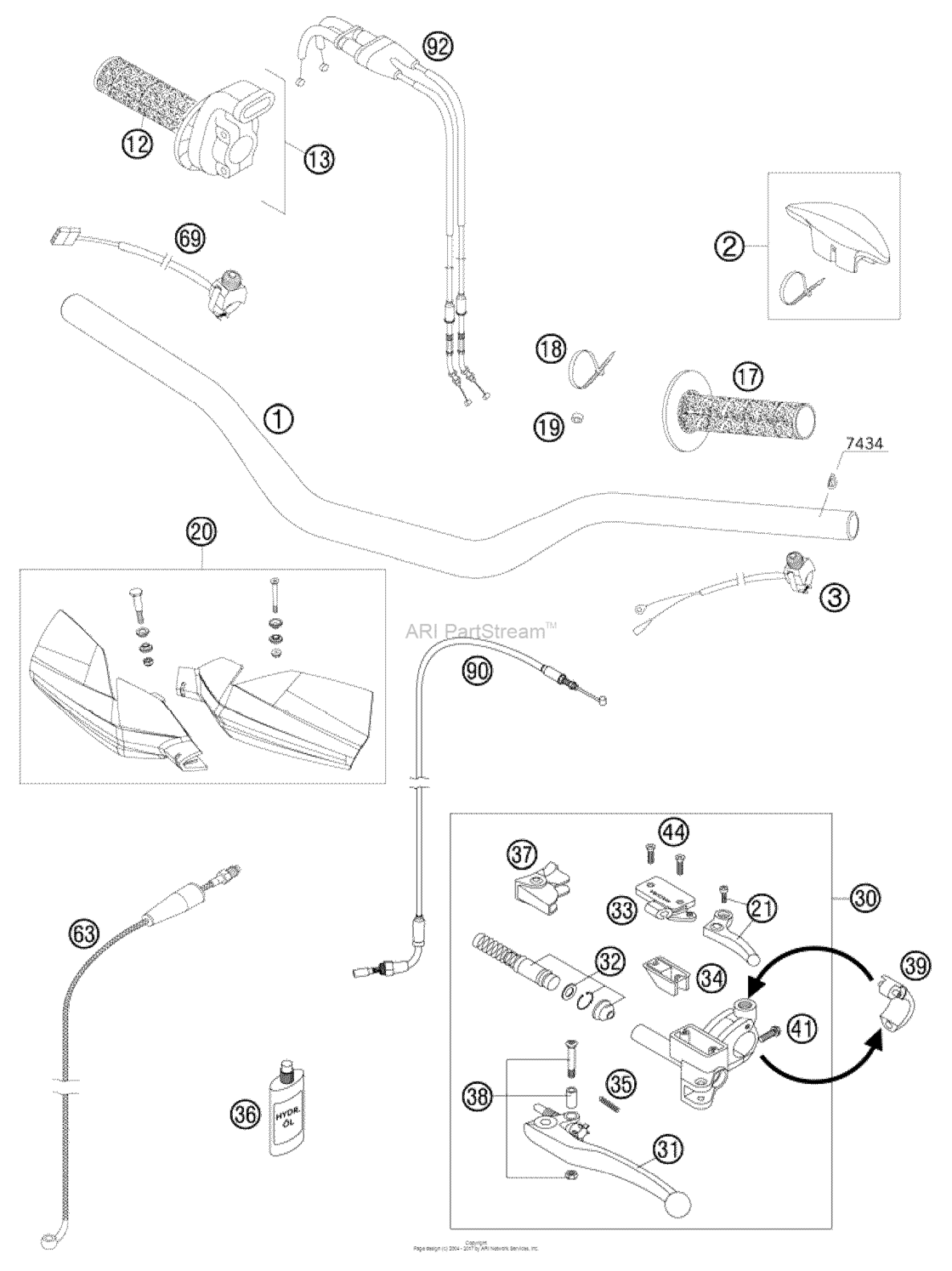

Handlebar, Controls Diagram KTM 505 505 XC-F
- Year
- 2009
- Sales region
- US/EU
- Engine Capacity
- 505
- Model
- 505 XC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5480200130017 Handlebar neken d=28mm exc 0707 |
5480200130017 |
US $192.39 |
||
|
2
|
2
59002002000
Superseded By 77202002100
05 (As required) |
59002002000 |
— | ||
|
3
|
3
50311089200 Short Circuit Button 0202 |
50311089200 |
US $50.97 |
||
|
12
|
12
54802013000
Grip-Set Gray/orange 09
Not Available
04 Not Available |
54802013000 |
— | ||
| replacement | |||||
|
12
|
12
54802021200 Grip-set gray/orange 0904 Not Available |
54802021200 |
US $28.29 |
||
|
13
|
13
59402010000 Throttle Grip Cpl2004 |
59402010000 |
US $73.87 |
||
| replacement | |||||
|
13
|
13
78102010000 Throttle Grip Cpl2004 |
78102010000 |
US $71.72 |
||
|
17
|
17
54802039000
Grip-Set Gray/orange 09
Not Available
04 Not Available |
54802039000 |
— | ||
| replacement | |||||
|
17
|
17
54802021200 Grip-set gray/orange 0904 Not Available |
54802021200 |
US $28.29 |
||
|
18
|
18
44011076100 Cable tie 100/2,5mm black(As required) |
44011076100 |
US $0.39 |
||
| replacement | |||||
|
18
|
18
44011076140 Cable tie 140/2,5mm black(As required) |
44011076140 |
US $0.29 |
||
|
18
|
18
44011076200 Cable tie 200/3,6mm black(As required) |
44011076200 |
US $0.39 |
||
|
19
|
19
50301089000 Spacer bushing 6x10x5(As required) |
50301089000 |
US $1.58 |
||
|
20
|
20
7700207910004
Hand guards cpl.l/s+r/s or. 09
09 |
7700207910004 |
— | ||
|
21
|
21
59002047100 Hot start lever cpl. 0505 |
59002047100 |
US $20.81 |
||
|
30
|
30
58602030000 Master cylinder cpl. sxc/sm 0303 |
58602030000 |
US $345.81 |
||
|
31
|
31
54602031000 Clutch Lever Short Cpl. 20032003 (As required) |
54602031000 |
US $42.99 |
||
|
31
|
31
59002031000 Clutch Lever Long Cpl. 20032003 (As required) |
59002031000 |
US $42.99 |
||
|
32
|
32
50302032000 Rep.set piston magura d=10.52003 (As required) |
50302032000 |
US $116.60 |
||
|
33
|
33
59002033000 Cover hyd.clutch racing 20002000 |
59002033000 |
US $41.87 |
||
|
34
|
34
50302034000 Rubber for reservoir '98'98 |
50302034000 |
US $16.18 |
||
|
35
|
35
59002035000 Spring for clutch lever 0303 |
59002035000 |
US $5.46 |
||
|
36
|
36
50302036200 Oil For Hyd. Clutch 100 Ml03 |
50302036200 |
US $19.23 |
||
|
37
|
37
50302037000 Protect.cap For Lever Perch'98'98 |
50302037000 |
US $20.74 |
||
|
38
|
38
50302038000 Lever Screw Cpl. 125-200 '98'98 |
50302038000 |
US $20.35 |
||
|
39
|
39
50302030150 Clamp With Pin 20002000 |
50302030150 |
US $34.46 |
||
|
41
|
41
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
44
|
44
0965040123 Flat head screw din0965-m 4x12TX30 |
0965040123 |
US $0.56 |
||
|
63
|
63
59032063100 Clutch pipe racing 20032003 |
59032063100 |
US $89.39 |
||
|
69
|
69
63011074000 Starter button 0606 |
63011074000 |
US $32.56 |
||
|
90
|
90
77002096000 Hot start cable 0505 |
77002096000 |
US $21.83 |
||
|
92
|
92
77002091000 Throttle cable 250 sxf 20052005 |
77002091000 |
US $80.70 |
||
