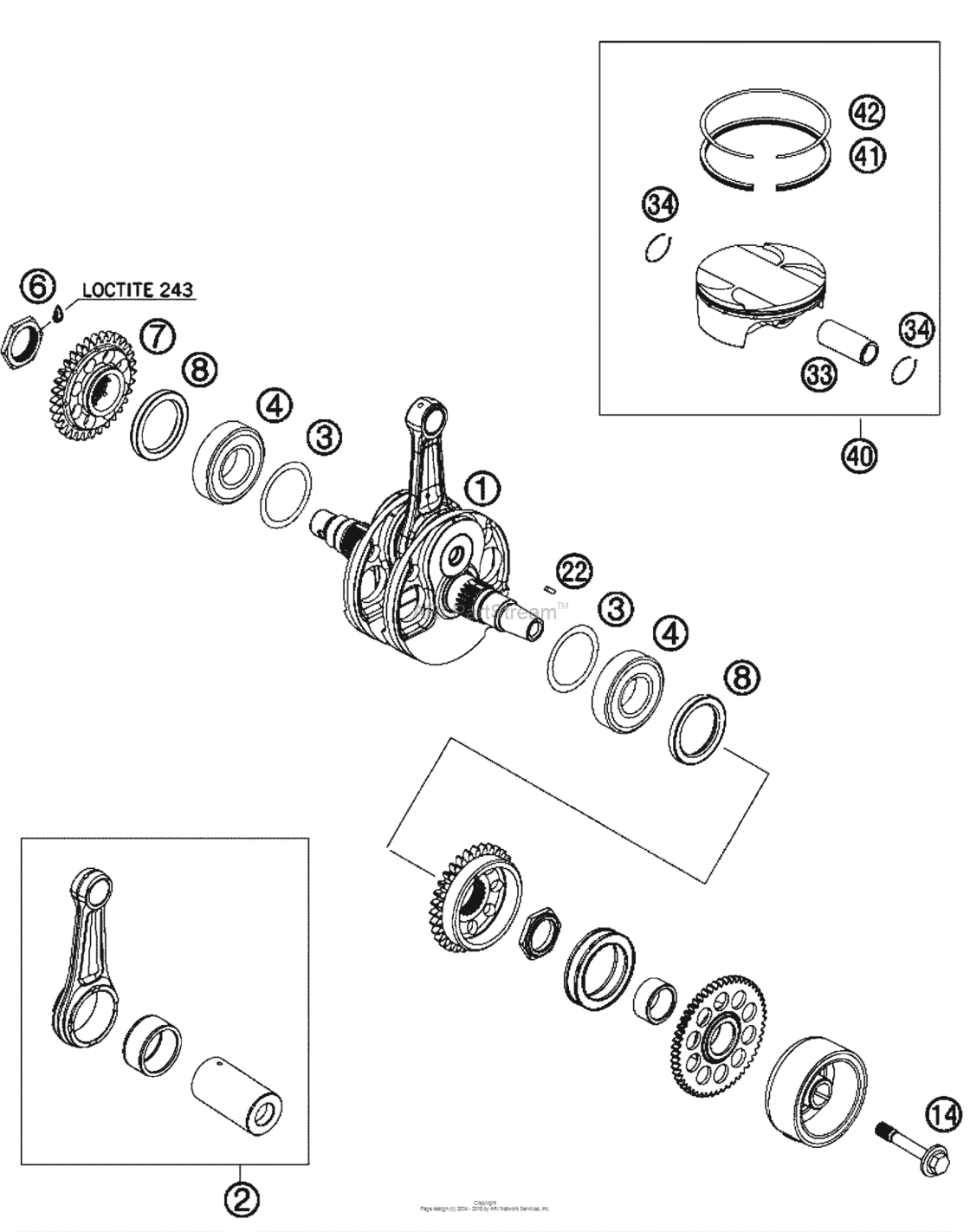

Crankshaft, Piston Diagram KTM 505 505 XC-F
- Year
- 2008
- Sales region
- US/EU
- Engine Capacity
- 505
- Model
- 505 XC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77630018200 Crankshaft cpl. 0808 |
77630018200 |
US $1,075.52 |
||
|
2
|
2
77630015144 Connecting rod repair set08 |
77630015144 |
US $721.21 |
||
|
3
|
3
0988304201 Thrust washer 30x42x0,1(As required) |
0988304201 |
US $0.73 |
||
|
3
|
3
0988304202 Thrust washer 30x42x0,2(As required) |
0988304202 |
US $0.73 |
||
|
3
|
3
0988304203 Thrust washer 30x42x0,3(As required) |
0988304203 |
US $0.73 |
||
|
4
|
4
77330082000 Cyl. roller bearing nj206 ecp(As required) |
77330082000 |
US $91.73 |
||
|
6
|
6
77330029000 Collar nut m27x1(As required) |
77330029000 |
US $9.32 |
||
|
7
|
7
77332023177 Primary Gear Cpl07 |
77332023177 |
US $181.20 |
||
| replacement | |||||
|
7
|
7
77332023129 Primary gear07 |
77332023129 |
US $85.73 |
||
|
8
|
8
0760405560 Shaft seal ring a40x55x6 viton07 |
0760405560 |
US $13.04 |
||
|
14
|
14
77339010000 Flywheel screw07 |
77339010000 |
US $20.21 |
||
|
22
|
22
0888030037 Woodruff key din6888-3x3,707 |
0888030037 |
US $0.58 |
||
|
33
|
33
77630033000 Piston Pin07 |
77630033000 |
US $96.34 |
||
|
34
|
34
77630074000 Circlip07 |
77630074000 |
US $10.44 |
||
|
40
|
40
77630007000I
Piston D=100
D=100 07 |
77630007000I |
— | ||
| replacement | |||||
|
40
|
40
77630007300I
Piston d=100mm gr. 1
D=100 07 |
77630007300I |
— | ||
|
40
|
40
77630007000II
Piston D=100
D=100 07 |
77630007000II |
— | ||
| replacement | |||||
|
40
|
40
77630007300II
Piston d=100mm gr.2
D=100 07 |
77630007300II |
— | ||
|
41
|
41
77630032000
Oil Scraper Ring
D=100 07 |
77630032000 |
— | ||
| replacement | |||||
|
41
|
41
77630032100 Oil scraper ringD=100 07 |
77630032100 |
US $52.96 |
||
|
42
|
42
77630030000 Rectangular ring d=100 07D=100 07 |
77630030000 |
US $43.57 |
||
