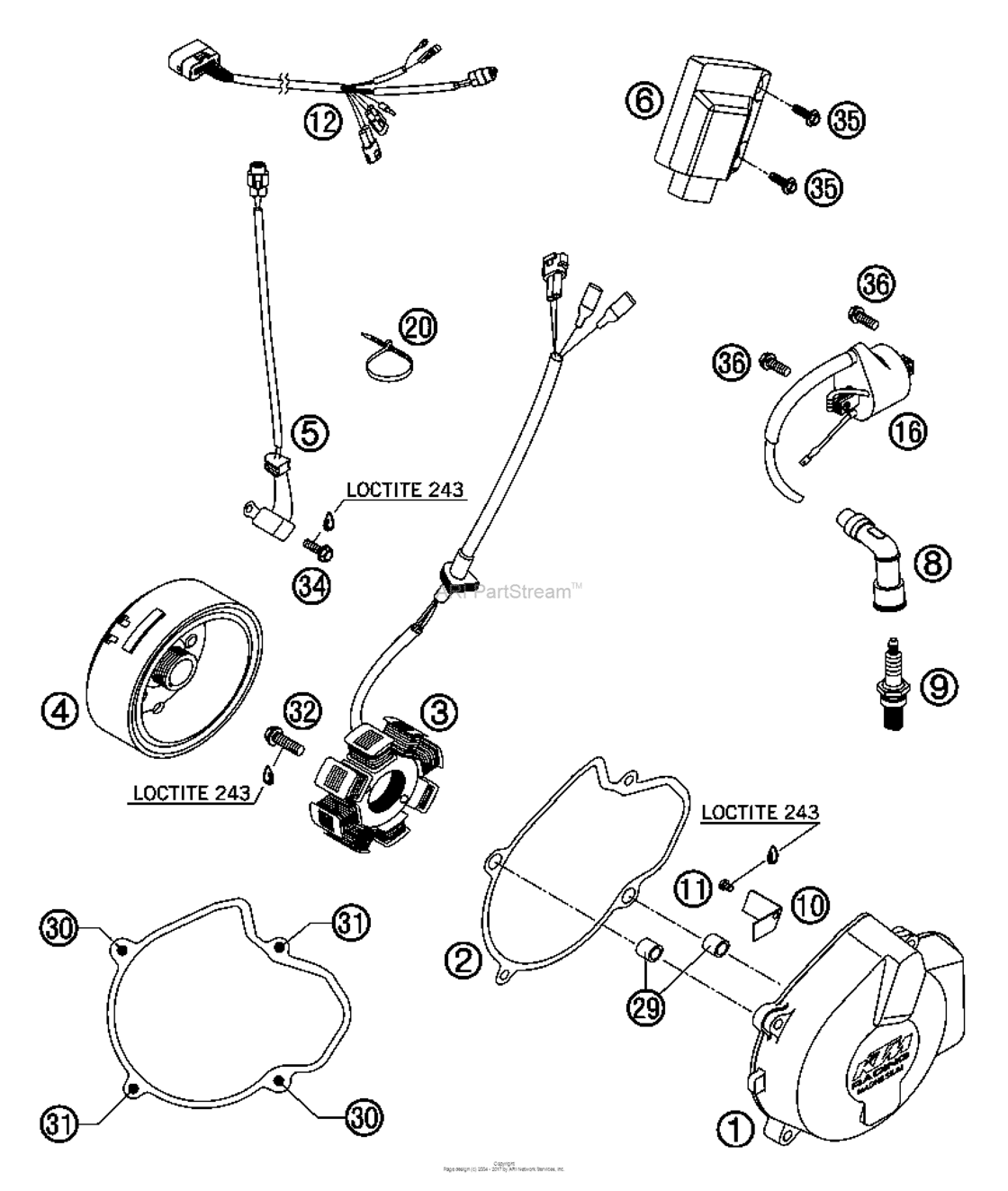

Ignition System Diagram KTM 525 525 EXC-G Racing
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 525
- Model
- 525 EXC-G Racing
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59030002000 Ignition cover 4k3b 20002001 |
59030002000 |
US $134.81 |
||
|
2
|
2
59030040000 Ignition cover gasket 0,8mm2001 |
59030040000 |
US $17.03 |
||
|
3
|
3
59039104200 Stator 4-k3-b 052001 |
59039104200 |
US $198.27 |
||
|
4
|
4
59039105200 Flywheel 4k3b racing 20042001 |
59039105200 |
US $271.49 |
||
|
5
|
5
59039034000 Pulser coil kokusan 4k3-a/b2001 |
59039034000 |
US $114.99 |
||
|
6
|
6
59039031500
Cdi unit 400/525 exc 2005
2001 |
59039031500 |
— | ||
|
8
|
8
59039090100
Spark plug connect. vd05eg 03
2001 |
59039090100 |
— | ||
| replacement | |||||
|
8
|
8
77139090000 Spark Plug Connector2001 |
77139090000 |
US $56.17 |
||
|
9
|
9
59039093100 Spark Plug Ngk Dcpr8E 032001 |
59039093100 |
US $7.48 |
||
|
10
|
10
59030002050 Support for wire2001 |
59030002050 |
US $4.85 |
||
|
11
|
11
0084040063 Cyl.head screw din0084-m 4x 6a2001 |
0084040063 |
US $1.62 |
||
|
12
|
12
59439032100 Wiring harness for cdi exc 042001 |
59439032100 |
US $102.20 |
||
|
16
|
16
59039006000 Ignitioncoil "ig5128"2001 |
59039006000 |
US $132.38 |
||
|
20
|
20
44011076100 Cable tie 100/2,5mm black2001 |
44011076100 |
US $0.39 |
||
| replacement | |||||
|
20
|
20
44011076140 Cable tie 140/2,5mm black2001 |
44011076140 |
US $0.29 |
||
|
29
|
29
49030090000 Dowel 9,8 x 7 x 102001 |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
29
|
29
49030090100 Dowel 9,8 X7X102001 |
49030090100 |
US $2.60 |
||
|
30
|
30
0015060353
Hh collar screw m 6x35 ws=8
2001 |
0015060353 |
— | ||
| replacement | |||||
|
30
|
30
0025060356 Hh collar screw m6x35 tx302001 |
0025060356 |
US $6.15 |
||
|
31
|
31
0015060303
Hh Collar Screw M6X30 Tx30
2001 |
0015060303 |
— | ||
| replacement | |||||
|
31
|
31
0025060306 Hh collar screw m6x30 tx302001 |
0025060306 |
US $3.96 |
||
|
32
|
32
0015060203
Hh Collar Screw M 6X20 Ws=8
2001 |
0015060203 |
— | ||
| replacement | |||||
|
32
|
32
0025060206 Hh collar screw m6x20 tx302001 |
0025060206 |
US $1.97 |
||
|
34
|
34
0015050163 Hh Collar Screw M 5X16 Ws=82001 |
0015050163 |
US $1.31 |
||
|
35
|
35
0014060103
Hh Collar Screw M6X10 Tx30
2001 |
0014060103 |
— | ||
| replacement | |||||
|
35
|
35
0024060106 Hh collar screw m6x10 tx302001 |
0024060106 |
US $4.35 |
||
|
36
|
36
0015060163 Hh Collar Screw M 6X16 Ws=82001 |
0015060163 |
US $2.23 |
||
