	Description	OEM Part #	Price
1	1 59430018000 Crankshaft 06 2001	59430018000	—
	replacement
1	1 59430018100 Crankshaft 06 2001	59430018100	US $830.93
1	1 59030018400 Crankshaft 525 Sx 2006 2001	59030018400	—
	replacement
1	1 59030018600 Crankshaft 525 sx 2006 2001	59030018600	US $995.35
2	2 59030015044 Con.rod rep.set 250/520 rac.00 2001	59030015044	US $573.12
2	2 59430015044 Con.rod rep.set 450 rac. 03 2001	59430015044	US $494.36
4	4 50330082000 Cyl.roller Bear.nj206 Et2Xcs46 2001	50330082000	US $91.46
5	5 59030055000 Drive gear 32-t f.balanc.shaft 2001	59030055000	US $113.87
6	6 56030081000 Thrust washer 30,5x45x0,10 2001	56030081000	US $0.43
6	6 56030081100 Thrust washer 30,7x47x0,15 2001	56030081100	US $0.94
6	6 56030081200 Thrust washer 30,5x45x0,30 2001	56030081200	US $1.21
7	7 0888030050 Woodruff Key Din6888-3X5X13 2001	0888030050	US $2.60
8	8 0984060162 Ah screw din7984-m 6x16 2001	0984060162	US $1.05
9	9 0760304772 Sh.seal Ring 30X47X7 Bsl Viton 2001	0760304772	US $26.23
13	13 59032000033 Primary gear 33-t 2001	59032000033	US $113.22
14	14 0912060106 Ah screw din0912-m 6x10 10.9 2001	0912060106	US $0.43
15	15 59030029100 Hh nur m20x1,5 ws=27 left 2001	59030029100	US $6.70
16	16 6946005 Woodruff Key 5X6,5 Harded 2001	6946005	US $0.92
17	17 0760142460 Shaft seal ring 14x24x6 b 2001	0760142460	US $11.70
18	18 0471250120 Circlip Din0471-25X1,2 2001	0471250120	US $1.31
20	20 49030021000 Collar nut m12x1 r/s 2001	49030021000	US $10.57
21	21 0137120000 Spring washer din0137-b12 2001	0137120000	US $0.39
33	33 59030033000 Piston Pin Bolt 20X15,8/12X50 2001	59030033000	US $22.22
34	34 59430074000 Circlip 20 x 1,6 2001	59430074000	US $8.31
34	34 59030074000 Circlip c20x1,5 2001	59030074000	US $1.50
40	40 59430107000I Piston Cpl. 450 D=95Mm Si.1 05 2001	59430107000I	—
	replacement
40	40 59430107100I Piston cpl. 450 d=95mm si.1 05 2001	59430107100I	—
40	40 59430107000II Piston Cpl. 450 D=95Mm Si.2 05 2001	59430107000II	—
	replacement
40	40 59430107100II Piston cpl. 450 d=95mm si.2 05 2001	59430107100II	—
40	40 59030007000I Piston i 95mm cpl. forged 2000 2001	59030007000I	—
40	40 59030007000II Piston ii 95mm cpl.forged 2000 2001	59030007000II	US $484.50
51	51 58030631000 Oil scraper ring 95mm 2001	58030631000	US $27.76
52	52 59030032000 Rectangular ring 95/87,2x1,25 2001	59030032000	US $40.41
53	53 59430070000 Flywheel mass 03 2001	59430070000	US $57.29

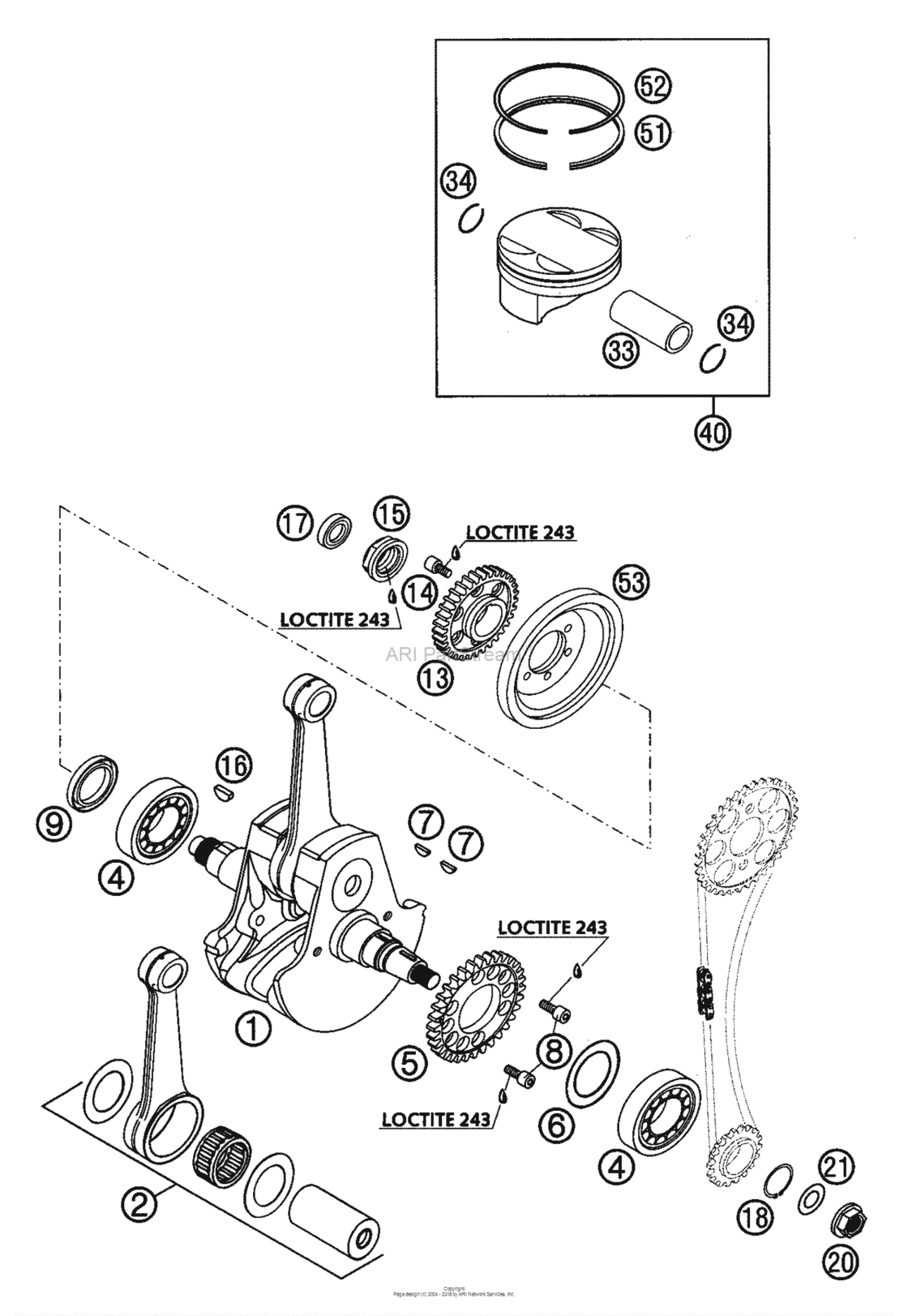

Crankshaft, Piston Diagram KTM 525 525 SMR US/EU 18099551-940376

Crankshaft, Piston Diagram KTM 525 525 SMR US/EU 18099551-940376
