	Description	OEM Part #	Price
1	1 59031001400 Carburetor fcr-mx 4125c 06 ORANGE	59031001400	US $1,127.12
5	5 57331027044 Carburetor Cover With Gasket ORANGE	57331027044	US $40.56
12	12 57331046200 Throttle shaft cpl. 06 ORANGE	57331046200	US $87.72
14	14 57331046050 Coil spring throttle shaft ORANGE	57331046050	US $7.87
16	16 57331035051 Link arm throttle valve cpl. ORANGE	57331035051	US $89.30
19	19 57331035000 Throttle valve cpl. ORANGE	57331035000	US $361.40
20	20 59031035050 Bushing throttle valve ORANGE	59031035050	US $10.68
21	21 57331035153 Gasket Plate Throttle Valve 04 ORANGE	57331035153	US $199.85
22	22 59031035052 Gasket washer throttle valve ORANGE	59031035052	US $17.99
23	23 59031021000 Jet Needle Keihin Obdtm ORANGE	59031021000	US $28.53
23	23 59031034000 Jet needle keihin obdtn ORANGE	59031034000	US $29.14
23	23 59031034400 Jet needle keihin obdtp ORANGE	59031034400	US $31.43
23	23 59031034500 Jet needle keihin obdtq ORANGE	59031034500	US $29.72
23	23 59031034600 Jet needle keihin obdtr ORANGE	59031034600	US $30.33
24	24 59031029000 Bar clip ORANGE	59031029000	US $4.05
25	25 57331032000 Needle set screw cpl. ORANGE	57331032000	US $41.28
26	26 59031121000 Needle jet fcr-mx ORANGE	59031121000	US $33.22
27	27 54531623180 Main Jet 180 Keihin ORANGE	54531623180	US $12.24
27	27 54531623182 Main jet 182 keihin ORANGE	54531623182	US $12.99
27	27 54531623185 Main jet 185 keihin ORANGE	54531623185	US $12.84
27	27 54531623188 Main jet 188 keihin ORANGE	54531623188	US $12.67
27	27 54531623190 Main jet 190 keihin ORANGE	54531623190	US $12.02
27	27 54531623192 Main jet 192 keihin ORANGE	54531623192	US $12.02
27	27 54531623195 Main jet 195 keihin ORANGE	54531623195	US $11.83
28	28 54531607040 Idle jet 40 keihin ORANGE	54531607040	US $11.83
28	28 54531607042 Idle jet 42 keihin ORANGE	54531607042	US $12.16
28	28 54531607045 Idle jet 45 keihin ORANGE	54531607045	US $11.95
29	29 59031051085 Starter jet 85 ORANGE	59031051085	US $16.73
30	30 57331107100 Idle air jet 100 keihin ORANGE	57331107100	US $14.43
32	32 59031017100 Adjust screw cpl. fcr-mx ORANGE	59031017100	US $18.48
35	35 57331085000 Buffer plate ORANGE	57331085000	US $11.36
39	39 57331009000 Float cpl. ORANGE	57331009000	US $60.62
40	40 57331008000 Arm pin float ORANGE	57331008000	US $1.63
41	41 57331075100 Hot-Starter Valve Cpl. 06 ORANGE	57331075100	US $101.88
42	42 54631220000 Float needle ORANGE	54631220000	US $33.66
43	43 54531621000 Clamp ORANGE	54531621000	US $3.18
46	46 57331155000 Drain screw float chamber ORANGE	57331155000	US $5
47	47 57331060000 Cover accelerator pump ORANGE	57331060000	US $25.21
49	49 57331011000 Float Chamber Cpl. 08 ORANGE	57331011000	—
	replacement
49	49 78031011000 Float chamber cpl. 08 ORANGE	78031011000	US $183.91
53	53 59031059000 Coil spring ORANGE	59031059000	US $6.26
55	55 57331048000 Starter valve cpl. ORANGE	57331048000	US $89.39
56	56 57331098000 Breath.hose fcr-mx keihin cpl. ORANGE	57331098000	US $111.32
60	60 57331038100 Screw f. cover keihin ORANGE	57331038100	—
61	61 54531699000 Plug m 18x1 ORANGE	54531699000	US $20.21
64	64 57331062000 Intermediate lever cpl. ORANGE	57331062000	US $33.05
65	65 57331056000 Link lever ORANGE	57331056000	US $7
66	66 57331059000 Spring link lever ORANGE	57331059000	US $11.68
67	67 57331159000 Spring intermediate lever ORANGE	57331159000	US $9.71
68	68 57331038200 Carburetor cover 06 ORANGE	57331038200	US $10.29
69	69 57331087000 Washer link lever ORANGE	57331087000	US $1.31
70	70 57331084000 E-clip ORANGE	57331084000	US $1.89
72	72 57331061000 Rod accelerator pump ORANGE	57331061000	US $27.56
79	79 58431082100 Ydnac-clamp 10173 (16mm) '98 ORANGE	58431082100	US $0.73
83	83 59031013044 Hose connector cpl. ORANGE	59031013044	US $66.64
88	88 59031050100 Engine breather tube 00 ORANGE	59031050100	—
90	90 57331025000 Stop screw cpl. fcr-mx ORANGE	57331025000	US $58.31
99	99 57331099000 Gasket set fcr-mx keihin ORANGE	57331099000	US $109.77

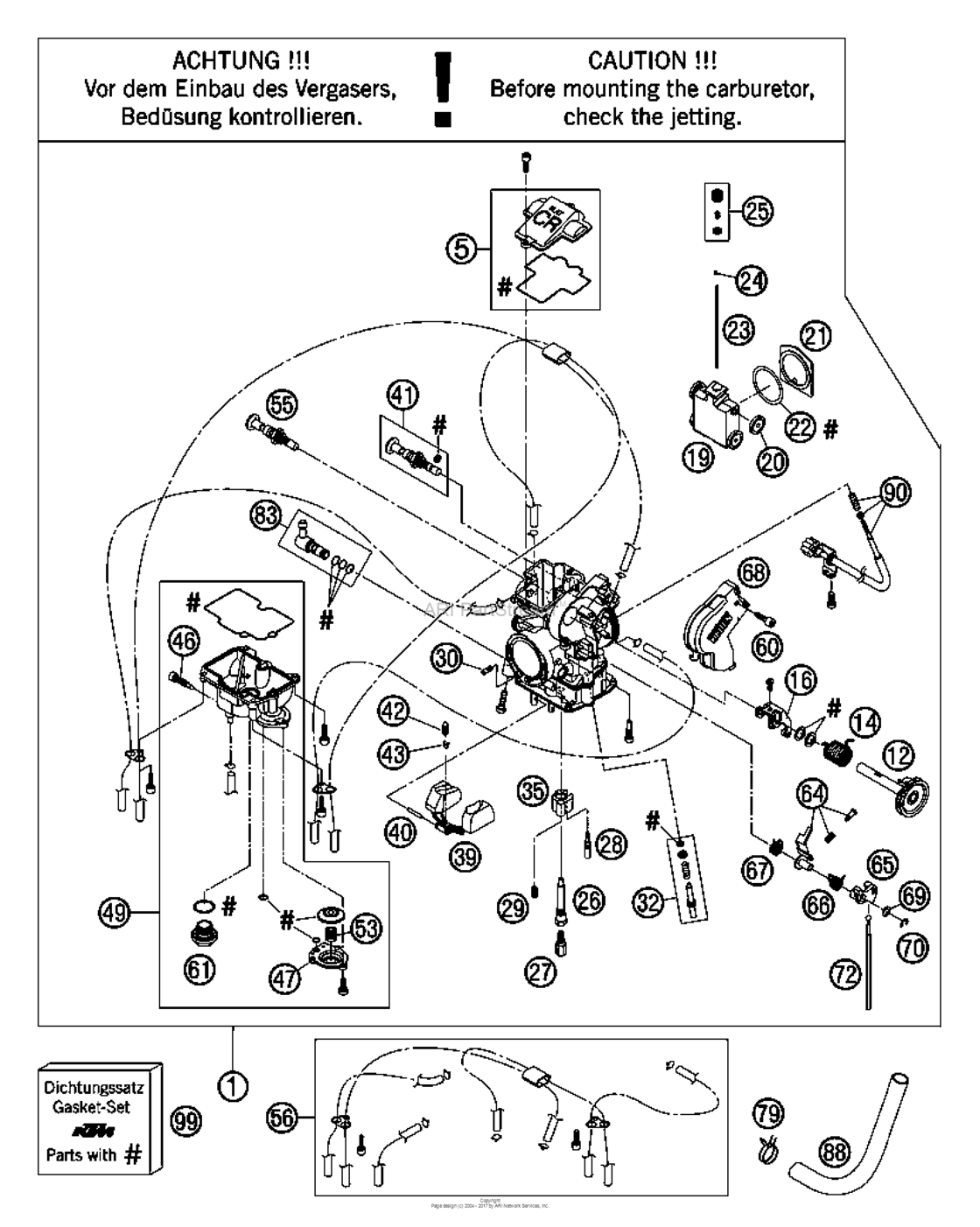

Carburetor Diagram KTM 525 525 SX US/EU 18099600-940379

Carburetor Diagram KTM 525 525 SX US/EU 18099600-940379
