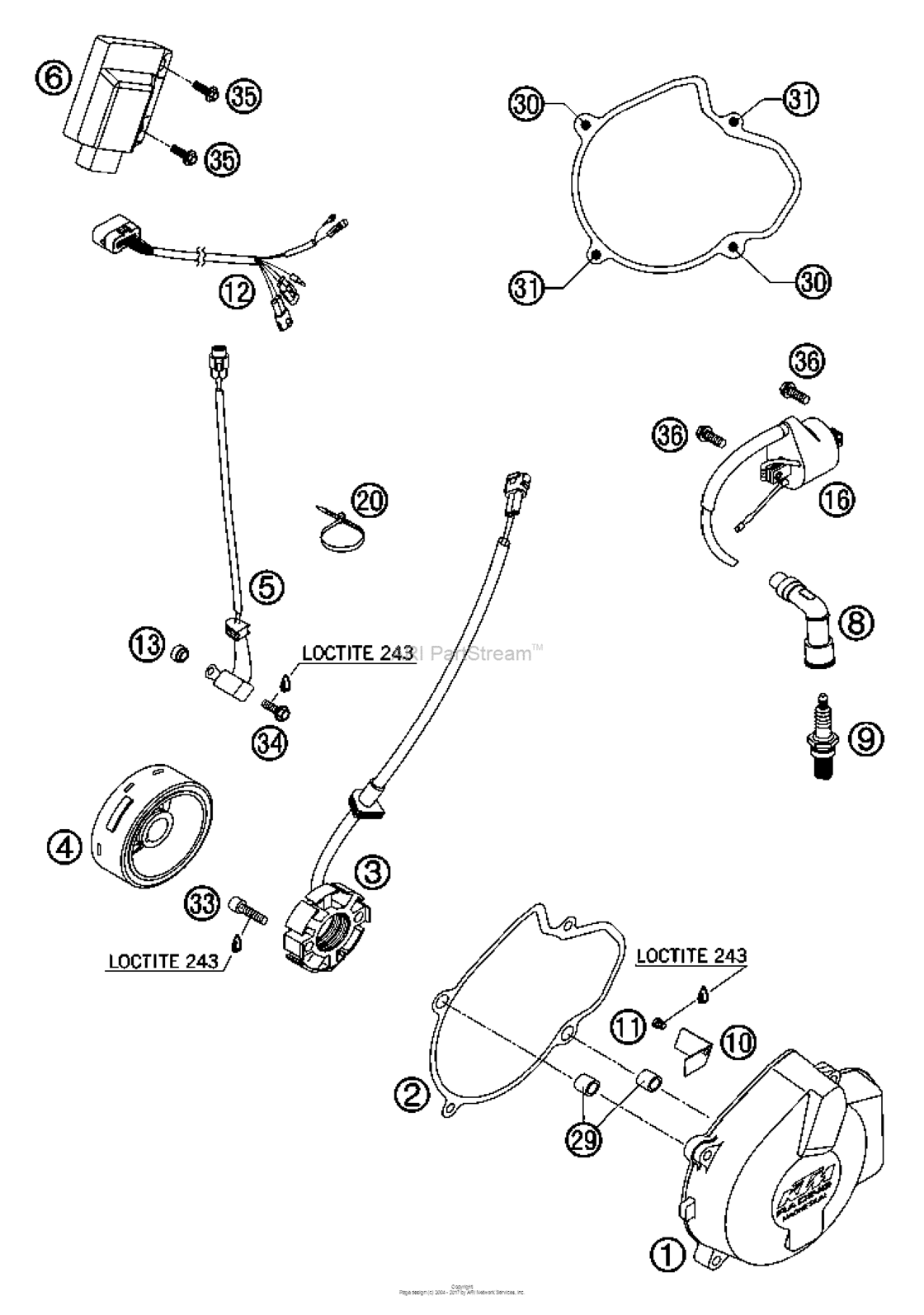

Ignition System Diagram KTM 525 525 SX
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 525
- Model
- 525 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59030002500 Ignition cover 4k3a 2000FOR CLUTCH COVER |
59030002500 |
US $82.35 |
||
|
2
|
2
59030040000 Ignition cover gasket 0,8mmFOR CLUTCH COVER |
59030040000 |
US $17.03 |
||
|
3
|
3
59039004100 Stator cpl. 4k3a racing 2004FOR CLUTCH COVER |
59039004100 |
US $175 |
||
|
4
|
4
59039005100
Flywheel 4k3a racing 2004
FOR CLUTCH COVER |
59039005100 |
— | ||
|
5
|
5
59039034000 Pulser coil kokusan 4k3-a/bFOR CLUTCH COVER |
59039034000 |
US $114.99 |
||
|
6
|
6
59039031600
Cdi unit 525 sx 2005
FOR CLUTCH COVER |
59039031600 |
— | ||
|
8
|
8
59039090100
Spark plug connect. vd05eg 03
FOR CLUTCH COVER |
59039090100 |
— | ||
| replacement | |||||
|
8
|
8
77139090000 Spark Plug ConnectorFOR CLUTCH COVER |
77139090000 |
US $56.17 |
||
|
9
|
9
59039093100 Spark Plug Ngk Dcpr8E 03FOR CLUTCH COVER |
59039093100 |
US $7.48 |
||
|
10
|
10
59030002050 Support for wireFOR WIRE |
59030002050 |
US $4.85 |
||
|
11
|
11
0084040063 Cyl.head screw din0084-m 4x 6aFOR WIRE |
0084040063 |
US $1.62 |
||
|
12
|
12
59439032000
Wiring harness for cdi sx 04
FOR CDI SX04 |
59439032000 |
— | ||
|
13
|
13
59039009000 Spacer bushing 5,2x7x4,8 2000FOR CDI SX04 |
59039009000 |
US $2.69 |
||
|
16
|
16
59039006000 Ignitioncoil "ig5128"FOR CDI SX04 |
59039006000 |
US $132.38 |
||
|
20
|
20
44011076100 Cable tie 100/2,5mm blackFOR CDI SX04 |
44011076100 |
US $0.39 |
||
| replacement | |||||
|
20
|
20
44011076140 Cable tie 140/2,5mm blackFOR CDI SX04 |
44011076140 |
US $0.29 |
||
|
29
|
29
49030090000 Dowel 9,8 x 7 x 10FOR CDI SX04 |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
29
|
29
49030090100 Dowel 9,8 X7X10FOR CDI SX04 |
49030090100 |
US $2.60 |
||
|
30
|
30
0015060353
Hh collar screw m 6x35 ws=8
FOR CDI SX04 |
0015060353 |
— | ||
| replacement | |||||
|
30
|
30
0025060356 Hh collar screw m6x35 tx30FOR CDI SX04 |
0025060356 |
US $6.15 |
||
|
31
|
31
0015060303
Hh Collar Screw M6X30 Tx30
FOR CDI SX04 |
0015060303 |
— | ||
| replacement | |||||
|
31
|
31
0025060306 Hh collar screw m6x30 tx30FOR CDI SX04 |
0025060306 |
US $3.96 |
||
|
33
|
33
0912050253 Ah screw din0912-m 5x25FOR CDI SX04 |
0912050253 |
US $0.61 |
||
|
34
|
34
0015050163 Hh Collar Screw M 5X16 Ws=8FOR CDI SX04 |
0015050163 |
US $1.31 |
||
|
35
|
35
0014060203 Hh Collar Screw M 6X20 Ws=8FOR CDI SX04 |
0014060203 |
US $3.26 |
||
|
36
|
36
0015060163 Hh Collar Screw M 6X16 Ws=8FOR CDI SX04 |
0015060163 |
US $2.23 |
||
