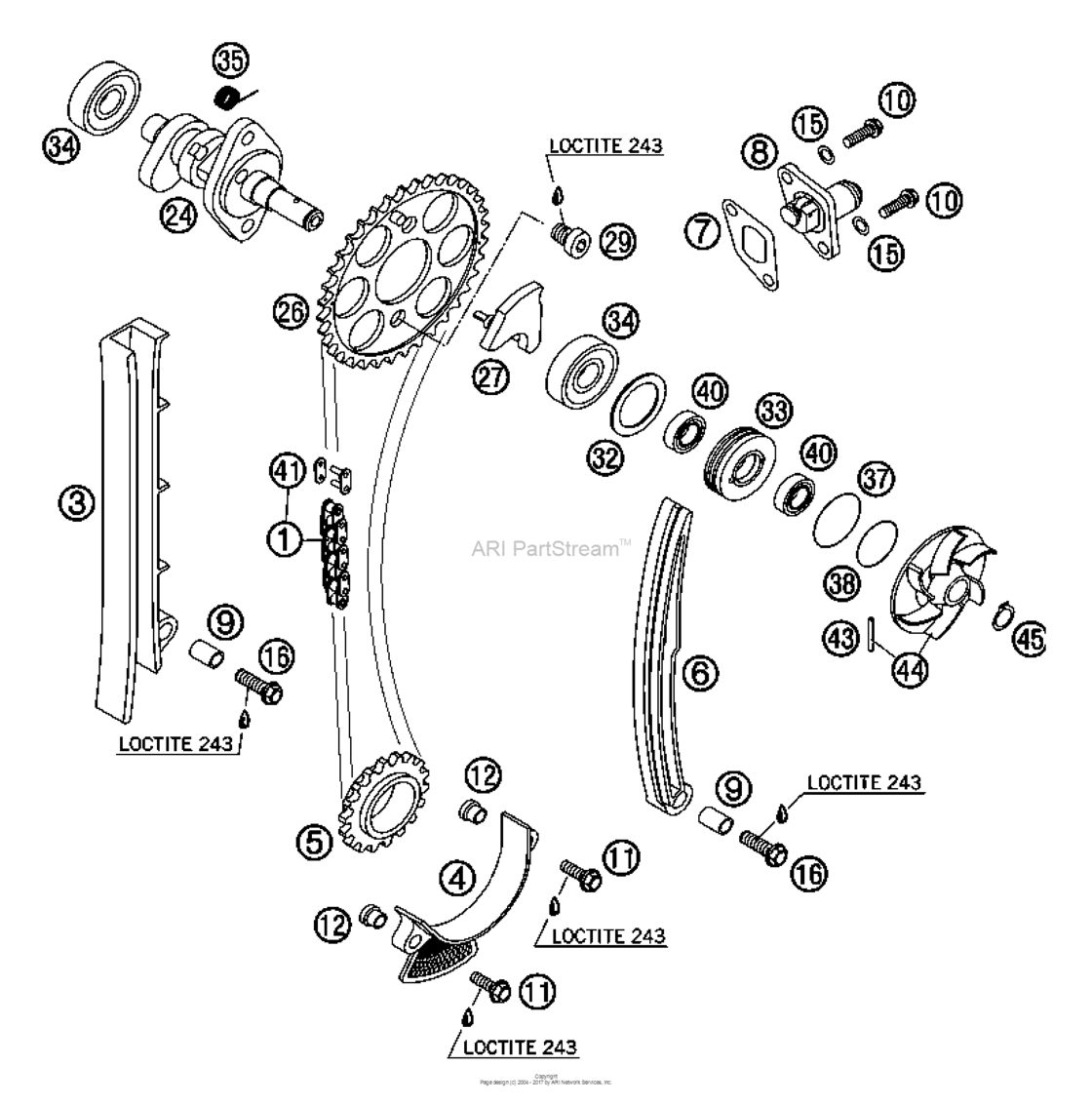

Timing Valve Diagram KTM 525 525 SX
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 525
- Model
- 525 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59036013000 Timing chain 96 rollsFOR CDI SX04 |
59036013000 |
US $93.72 |
||
|
3
|
3
59036001000 Timing Chain Guide RacingFOR CDI SX04 |
59036001000 |
US $14.55 |
||
|
4
|
4
59036018000 Securing guide racingFOR CDI SX04 |
59036018000 |
US $3.88 |
||
|
5
|
5
59036014000 Timing gear 18-tFOR CDI SX04 |
59036014000 |
US $66.66 |
||
|
6
|
6
59036002000 Timing chain tensionerFOR CDI SX04 |
59036002000 |
US $14.99 |
||
|
7
|
7
59036003050 Gasket timing chain tensionerFOR CDI SX04 |
59036003050 |
US $5.85 |
||
|
8
|
8
59036003000 Timingchain Tensioner Cpl.racFOR CDI SX04 |
59036003000 |
US $63.33 |
||
|
9
|
9
59036001050 Spacer bushing 6,1x8,2x13,1FOR CDI SX04 |
59036001050 |
US $2.41 |
||
|
10
|
10
0015060203
Hh Collar Screw M 6X20 Ws=8
FOR CDI SX04 |
0015060203 |
— | ||
| replacement | |||||
|
10
|
10
0025060206 Hh collar screw m6x20 tx30FOR CDI SX04 |
0025060206 |
US $1.97 |
||
|
11
|
11
0015050163 Hh Collar Screw M 5X16 Ws=8FOR CDI SX04 |
0015050163 |
US $1.31 |
||
|
12
|
12
59036018050 Supporting sleeve 5,2x7x10x7,7FOR CDI SX04 |
59036018050 |
US $2.57 |
||
|
15
|
15
0603061001 Cu-Seal Ring Din7603-6X10X1FOR CDI SX04 |
0603061001 |
US $2.64 |
||
|
16
|
16
0015060253
Hh Collar Screw M6X25 Tx30
FOR CDI SX04 |
0015060253 |
— | ||
| replacement | |||||
|
16
|
16
0025060256 Hh collar screw m6x25 tx30FOR CDI SX04 |
0025060256 |
US $2.45 |
||
|
24
|
24
59036010000 Camshaft 590/5521 2000FOR CDI SX04 |
59036010000 |
US $234.26 |
||
|
26
|
26
59036011100 Camshaft gear 2003FOR CDI SX04 |
59036011100 |
US $58.31 |
||
|
27
|
27
59036016000
Auto decompression shaft
FOR CDI SX04 |
59036016000 |
— | ||
|
29
|
29
0984080103 Ah screw din7984-m 8x10FOR CDI SX04 |
0984080103 |
US $1.09 |
||
|
32
|
32
59036082000 Washer 26,7x34x1,3FOR CDI SX04 |
59036082000 |
US $4.64 |
||
|
33
|
33
59036081100 Gasket supportFOR CDI SX04 |
59036081100 |
US $17.77 |
||
|
34
|
34
0625062014 Ball Bearing 6201FOR CDI SX04 |
0625062014 |
US $16.47 |
||
|
35
|
35
59036017000 Spring for autodecompressionFOR AUTODECOMPRESSION |
59036017000 |
US $2.72 |
||
|
37
|
37
0770291016 O-Ring 29,10X1,60 Nbr 70FOR AUTODECOMPRESSION |
0770291016 |
US $1.16 |
||
|
38
|
38
0770020220 O-ring 25,12x1,78 nbr70FOR AUTODECOMPRESSION |
0770020220 |
US $3.89 |
||
|
40
|
40
0760101843
Shaft Seal Ring 10X18X4 Bsl V
FOR AUTODECOMPRESSION |
0760101843 |
— | ||
| replacement | |||||
|
40
|
40
0760101844 Shaft Seal Ring 10X18X4 Bsl VFOR AUTODECOMPRESSION |
0760101844 |
US $9.96 |
||
|
41
|
41
59036013050 Rivet link for timing chainFOR TIMING CHAIN |
59036013050 |
US $10.17 |
||
|
43
|
43
0402031780 Needle rol.din5402 nrb 3x17,8FOR TIMING CHAIN |
0402031780 |
US $1.29 |
||
|
44
|
44
59035055144 Water pump wheel cpl. rac.2001FOR TIMING CHAIN |
59035055144 |
US $6.15 |
||
|
45
|
45
0471100010 CirclipFOR TIMING CHAIN |
0471100010 |
US $1.16 |
||
