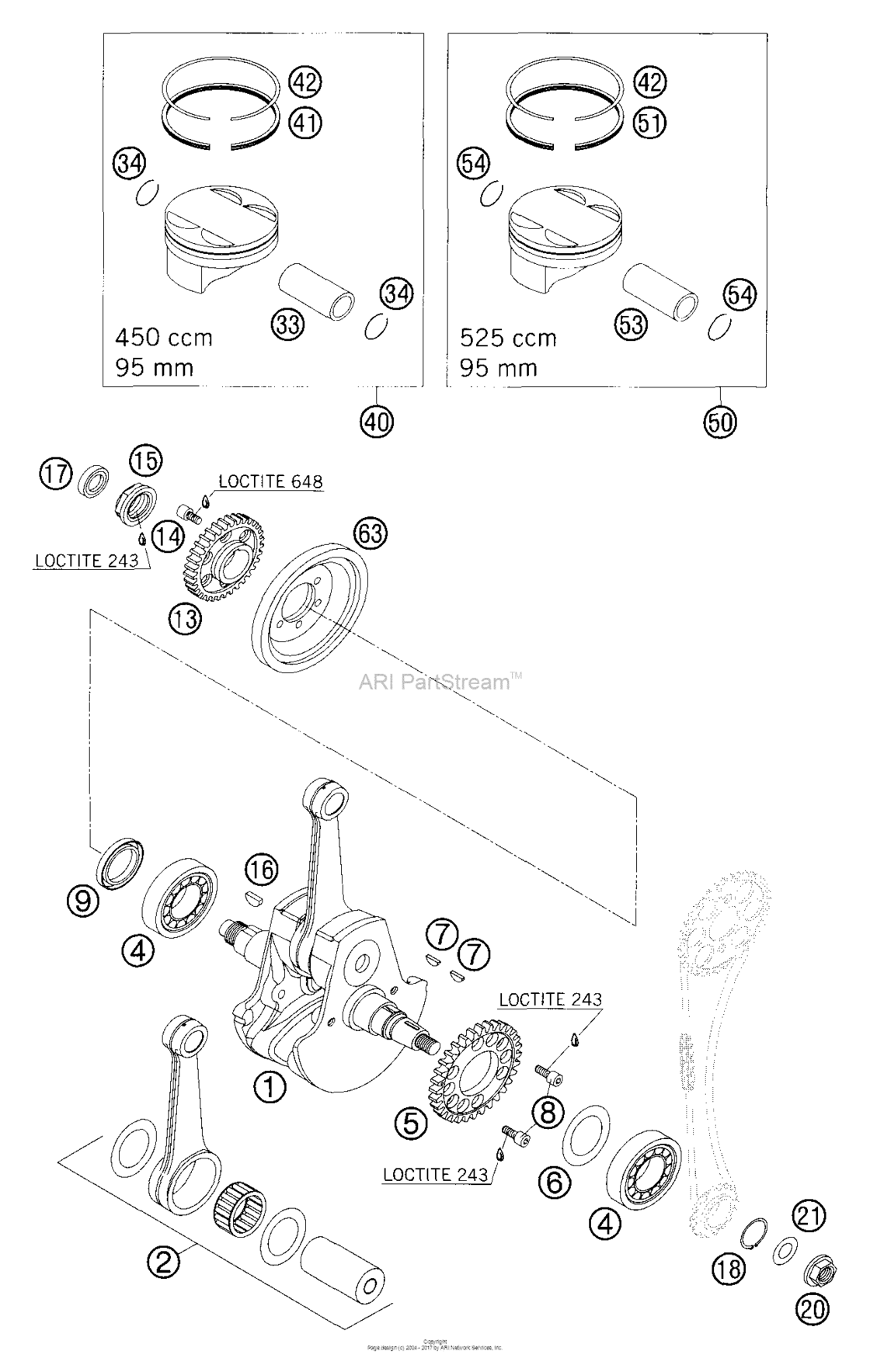

Crankshaft - Piston Diagram KTM 525 525 SX Racing
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 525
- Model
- 525 SX Racing
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59430018000
Crankshaft 06
FOR TIMING CHAIN |
59430018000 |
— | ||
| replacement | |||||
|
1
|
1
59430018100 Crankshaft 06FOR TIMING CHAIN |
59430018100 |
US $830.93 |
||
|
1
|
1
59030018400
Crankshaft 525 Sx 2006
FOR TIMING CHAIN |
59030018400 |
— | ||
| replacement | |||||
|
1
|
1
59030018600 Crankshaft 525 sx 2006FOR TIMING CHAIN |
59030018600 |
US $995.35 |
||
|
2
|
2
59030015044 Con.rod rep.set 250/520 rac.00FOR TIMING CHAIN |
59030015044 |
US $573.12 |
||
|
2
|
2
59430015044 Con.rod rep.set 450 rac. 03FOR TIMING CHAIN |
59430015044 |
US $494.36 |
||
|
4
|
4
50330082000 Cyl.roller Bear.nj206 Et2Xcs46FOR TIMING CHAIN |
50330082000 |
US $91.46 |
||
|
5
|
5
59030055000 Drive gear 32-t f.balanc.shaftFOR TIMING CHAIN |
59030055000 |
US $113.87 |
||
|
6
|
6
56030081000 Thrust washer 30,5x45x0,10FOR TIMING CHAIN |
56030081000 |
US $0.43 |
||
|
6
|
6
56030081100 Thrust washer 30,7x47x0,15FOR TIMING CHAIN |
56030081100 |
US $0.94 |
||
|
6
|
6
56030081200 Thrust washer 30,5x45x0,30FOR TIMING CHAIN |
56030081200 |
US $1.21 |
||
|
7
|
7
0888030050 Woodruff Key Din6888-3X5X13FOR TIMING CHAIN |
0888030050 |
US $2.60 |
||
|
8
|
8
0984060162 Ah screw din7984-m 6x16FOR TIMING CHAIN |
0984060162 |
US $1.05 |
||
|
9
|
9
0760304772 Sh.seal Ring 30X47X7 Bsl VitonFOR TIMING CHAIN |
0760304772 |
US $26.23 |
||
|
13
|
13
59032000033 Primary gear 33-tFOR TIMING CHAIN |
59032000033 |
US $113.22 |
||
|
14
|
14
0912060106 Ah screw din0912-m 6x10 10.9FOR TIMING CHAIN |
0912060106 |
US $0.43 |
||
|
15
|
15
59030029100 Hh nur m20x1,5 ws=27 leftFOR TIMING CHAIN |
59030029100 |
US $6.70 |
||
|
16
|
16
6946005 Woodruff Key 5X6,5 HardedFOR TIMING CHAIN |
6946005 |
US $0.92 |
||
|
17
|
17
0760142460 Shaft seal ring 14x24x6 bFOR TIMING CHAIN |
0760142460 |
US $11.70 |
||
|
18
|
18
0471250120 Circlip Din0471-25X1,2FOR TIMING CHAIN |
0471250120 |
US $1.31 |
||
|
20
|
20
49030021000 Collar nut m12x1 r/sFOR TIMING CHAIN |
49030021000 |
US $10.57 |
||
|
21
|
21
0137120000 Spring washer din0137-b12FOR TIMING CHAIN |
0137120000 |
US $0.39 |
||
|
33
|
33
59430033000 Piston pin bolt 20x12x45,5FOR TIMING CHAIN |
59430033000 |
US $19.65 |
||
|
34
|
34
59430174000 Circlip 20x1,6FOR TIMING CHAIN |
59430174000 |
US $8.59 |
||
|
40
|
40
59430107100I
Piston cpl. 450 d=95mm si.1 05
FOR TIMING CHAIN |
59430107100I |
— | ||
|
40
|
40
59430107100II
Piston cpl. 450 d=95mm si.2 05
FOR TIMING CHAIN |
59430107100II |
— | ||
|
41
|
41
59430031000 Oil scraper ring 95/88,5x2,5FOR TIMING CHAIN |
59430031000 |
US $24.50 |
||
|
42
|
42
59030032000 Rectangular ring 95/87,2x1,25FOR TIMING CHAIN |
59030032000 |
US $40.41 |
||
|
50
|
50
59030007000I
Piston i 95mm cpl. forged 2000
FOR TIMING CHAIN |
59030007000I |
— | ||
|
50
|
50
59030007000II Piston ii 95mm cpl.forged 2000FOR TIMING CHAIN |
59030007000II |
US $484.50 |
||
|
51
|
51
58030631000 Oil scraper ring 95mmFOR TIMING CHAIN |
58030631000 |
US $27.76 |
||
|
53
|
53
59030033000 Piston Pin Bolt 20X15,8/12X50FOR TIMING CHAIN |
59030033000 |
US $22.22 |
||
|
54
|
54
59030074000 Circlip c20x1,5FOR TIMING CHAIN |
59030074000 |
US $1.50 |
||
|
63
|
63
59430070000 Flywheel mass 03FOR TIMING CHAIN |
59430070000 |
US $57.29 |
||
