Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 59032000476 Outer clutch hub 76-z/20-z 01 HARDENED	59032000476	—
2	2 59032002500 Inner Hub - Racing 2007 HARDENED	59032002500	US $89.35
3	3 59032011100 Lining disc 2mm 04 HARDENED	59032011100	US $24.02
	replacement
3	3 79532011000 Lining Disc 1,95Mm HARDENED	79532011000	US $24.02
4	4 59032010100 Intermediate disc 1mm 2002 HARDENED	59032010100	US $8.94
5	5 59032003500 Pressure Cap With Oil Bore 07 HARDENED	59032003500	US $58.74
6	6 59032005000 Clutch Spring 2,5X43Mm HARDENED	59032005000	US $3.30
7	7 59032006050 Spring Retainer 6,2X12X18X5,2 HARDENED	59032006050	US $1.75
8	8 59032010200 Intermediate Disc 1,4Mm 2002 HARDENED	59032010200	US $9.96
10	10 59032054200 Push rod 7x189,6 mm 06 HARDENED	59032054200	—
11	11 59032007000 Half-washer 03 HARDENED	59032007000	US $1.28
12	12 59032017000 Supportwasher 25X35X1 HARDENED	59032017000	US $1.45
13	13 0984060252 Ah screw din6912 m6x25 HARDENED	0984060252	US $1.73
14	14 0405252910 Needle bear k 25x29x10 HARDENED	0405252910	US $9.16
15	15 59032000033 Primary gear 33-t HARDENED	59032000033	US $113.22
16	16 59032061044 Output Cyl. With Bleeder Screw HARDENED	59032061044	—
	replacement
16	16 75032061044 Output Cyl. With Bleeder Screw HARDENED	75032061044	US $230.98
17	17 0770300015 O-ring 30,00x1,50 nbr 70 HARDENED	0770300015	US $3.26
18	18 50329050000 Vent Injektion Hydr. Clutch HARDENED	50329050000	US $50.78
19	19 59032066000 Output Cyl. With Bleeder Screw HARDENED	59032066000	—
	replacement
19	19 75032061044 Output Cyl. With Bleeder Screw HARDENED	75032061044	US $230.98
20	20 54732064000 Bleeder Screw With Cap HARDENED	54732064000	US $22.05
21	21 0015060353 Hh collar screw m 6x35 ws=8 HARDENED	0015060353	—
	replacement
21	21 0025060356 Hh collar screw m6x35 tx30 HARDENED	0025060356	US $6.15
22	22 0015060203 Hh Collar Screw M 6X20 Ws=8 HARDENED	0015060203	—
	replacement
22	22 0025060206 Hh collar screw m6x20 tx30 HARDENED	0025060206	US $1.97
23	23 59032009000 Stepped washer 03 HARDENED	59032009000	US $6.77
24	24 59032065000 Gasket for slave cylinder HARDENED	59032065000	—
	replacement
24	24 59032065100 Gasket For Slave Cylinder HARDENED	59032065100	US $7.21
26	26 59032004300 Driving sleeve d=8, l=33 06 HARDENED	59032004300	US $3.64
27	27 0993012000 Circlip Din7993-Rw12 HARDENED	0993012000	US $2.11
28	28 54637098200 Axial washer as1226 12x26x1 HARDENED	54637098200	US $5.02
29	29 54637097200 Axial Needle Bearing Axk 1226 HARDENED	54637097200	US $10.06
30	30 50332054051 Pressure piece 125-380 '98 HARDENED	50332054051	—
	replacement
30	30 50332154051 Pressure Piece Cpl HARDENED	50332154051	US $22.83
31	31 0936181505 Hexagon Nut Din0936-M18X1,5 R HARDENED	0936181505	US $7.60
32	32 56532018000 Lock Washer HARDENED	56532018000	US $4.73
33	33 59032062000 Hollow Screw + Copper Gasket HARDENED	59032062000	US $25.42

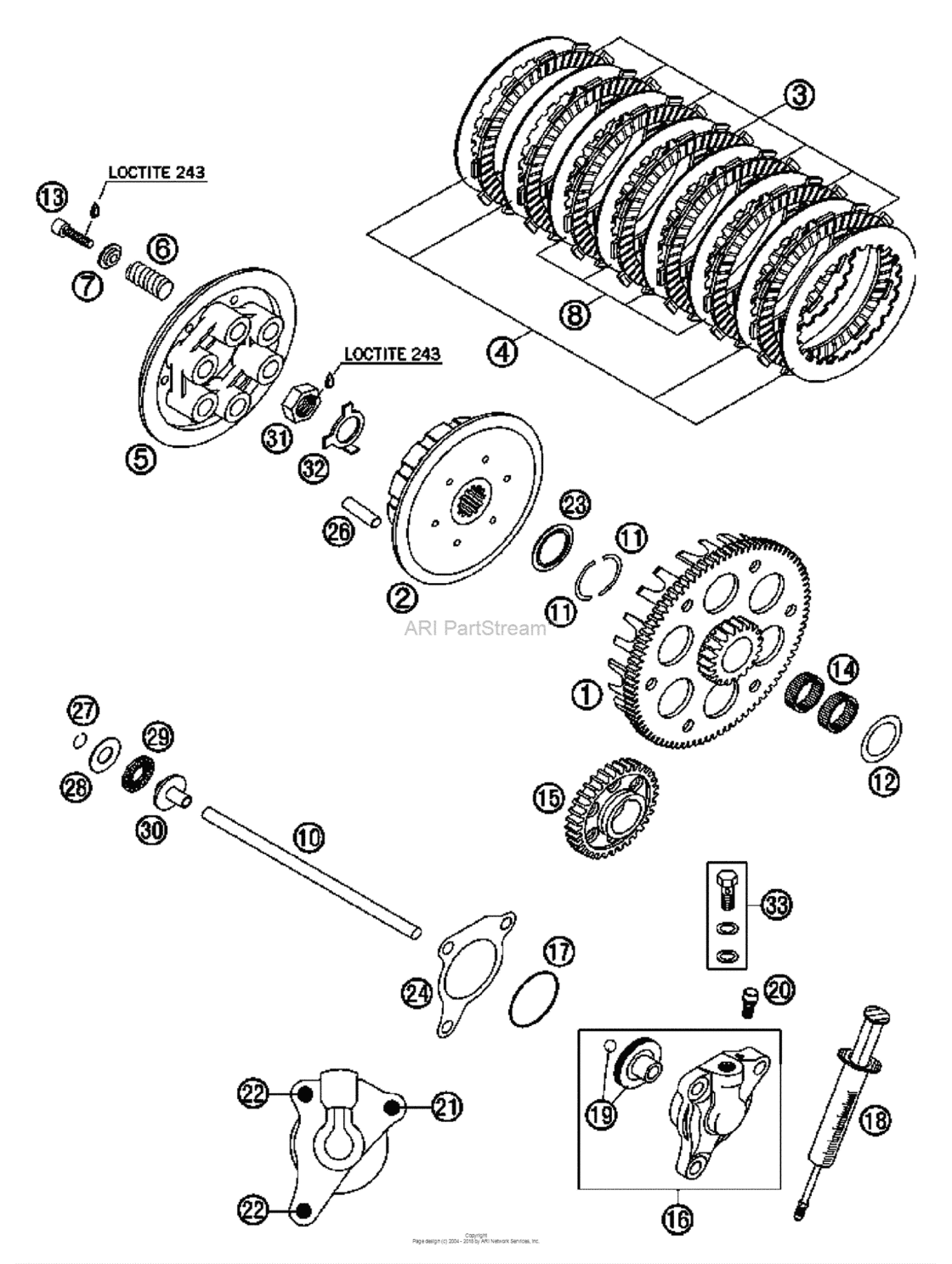

Clutch Diagram KTM 525 525 XC-W US/EU 18099892-940393

Clutch Diagram KTM 525 525 XC-W US/EU 18099892-940393
