Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 59030118000 Crankshaft cpl. 07 1 STROKE 72MM, WITHOUT WASHER	59030118000	US $756.91
2	2 59030015044 Con.rod rep.set 250/520 rac.00 WITH WASHER	59030015044	US $573.12
4	4 50330082000 Cyl.roller Bear.nj206 Et2Xcs46 WITH WASHER	50330082000	US $91.46
5	5 59030055000 Drive gear 32-t f.balanc.shaft WITH WASHER	59030055000	US $113.87
6	6 56030081000 Thrust washer 30,5x45x0,10 WITH WASHER	56030081000	US $0.43
6	6 56030081100 Thrust washer 30,7x47x0,15 WITH WASHER	56030081100	US $0.94
6	6 56030081200 Thrust washer 30,5x45x0,30 WITH WASHER	56030081200	US $1.21
7	7 0888030050 Woodruff Key Din6888-3X5X13 WITH WASHER	0888030050	US $2.60
8	8 0984060162 Ah screw din7984-m 6x16 WITH WASHER	0984060162	US $1.05
9	9 0760304772 Sh.seal Ring 30X47X7 Bsl Viton WITH WASHER	0760304772	US $26.23
13	13 59032000033 Primary gear 33-t WITH WASHER	59032000033	US $113.22
15	15 59030029100 Hh nur m20x1,5 ws=27 left WITH WASHER	59030029100	US $6.70
16	16 6946005 Woodruff Key 5X6,5 Harded WITH WASHER	6946005	US $0.92
17	17 0760142460 Shaft seal ring 14x24x6 b WITH WASHER	0760142460	US $11.70
18	18 0471250120 Circlip Din0471-25X1,2 WITH WASHER	0471250120	US $1.31
20	20 49030021000 Collar nut m12x1 r/s WITH WASHER	49030021000	US $10.57
21	21 0137120000 Spring washer din0137-b12 WITH WASHER	0137120000	US $0.39
33	33 59030033000 Piston Pin Bolt 20X15,8/12X50 WITH WASHER	59030033000	US $22.22
34	34 59030074000 Circlip c20x1,5 WITH WASHER	59030074000	US $1.50
50	50 59030007000I Piston i 95mm cpl. forged 2000 WITH WASHER	59030007000I	—
50	50 59030007000II Piston ii 95mm cpl.forged 2000 WITH WASHER	59030007000II	US $484.50
51	51 58030631000 Oil scraper ring 95mm WITH WASHER	58030631000	US $27.76
52	52 59030032000 Rectangular ring 95/87,2x1,25 WITH WASHER	59030032000	US $40.41

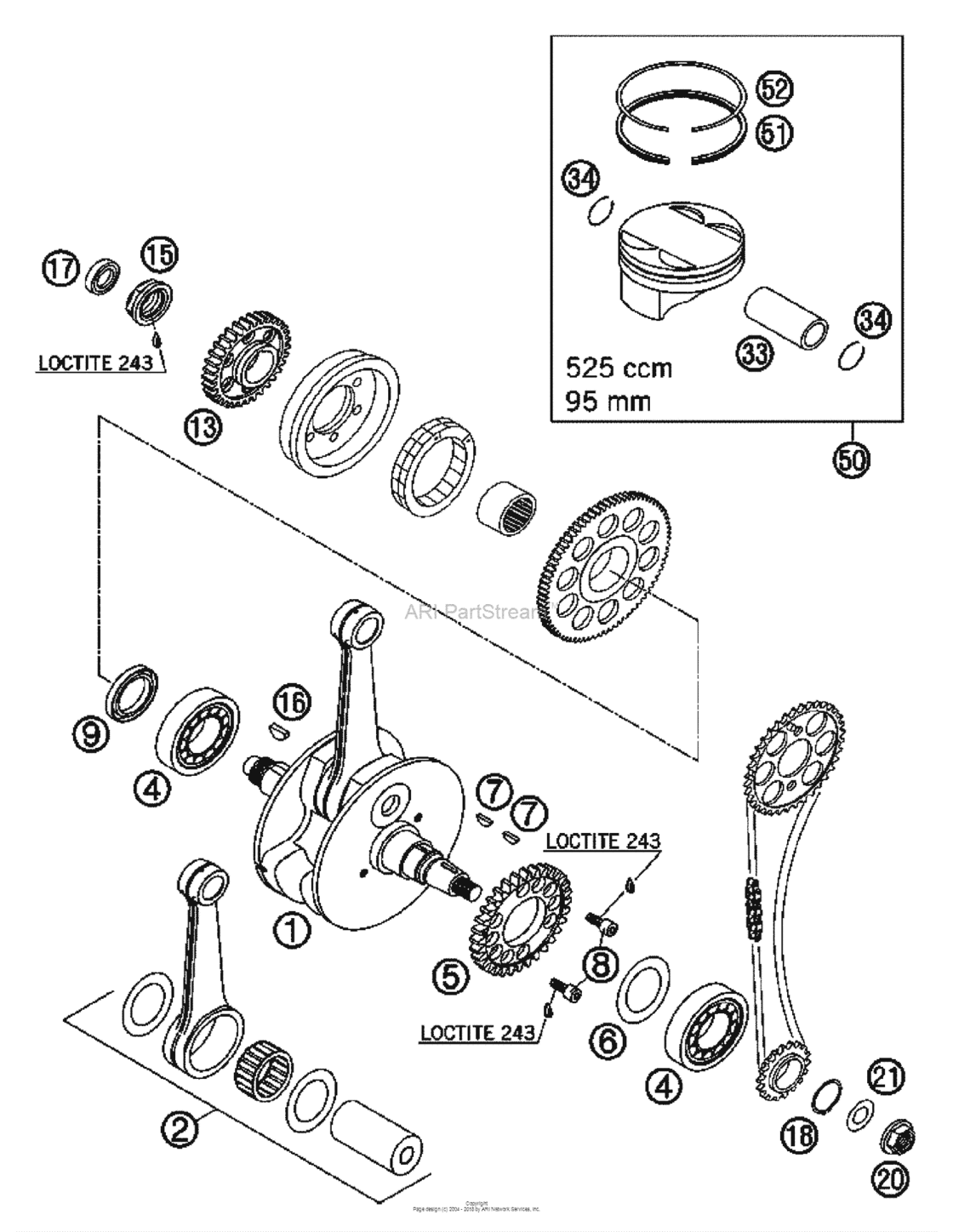

Crankshaft, Piston Diagram KTM 525 525 XC-W US/EU 18099894-940393

Crankshaft, Piston Diagram KTM 525 525 XC-W US/EU 18099894-940393
