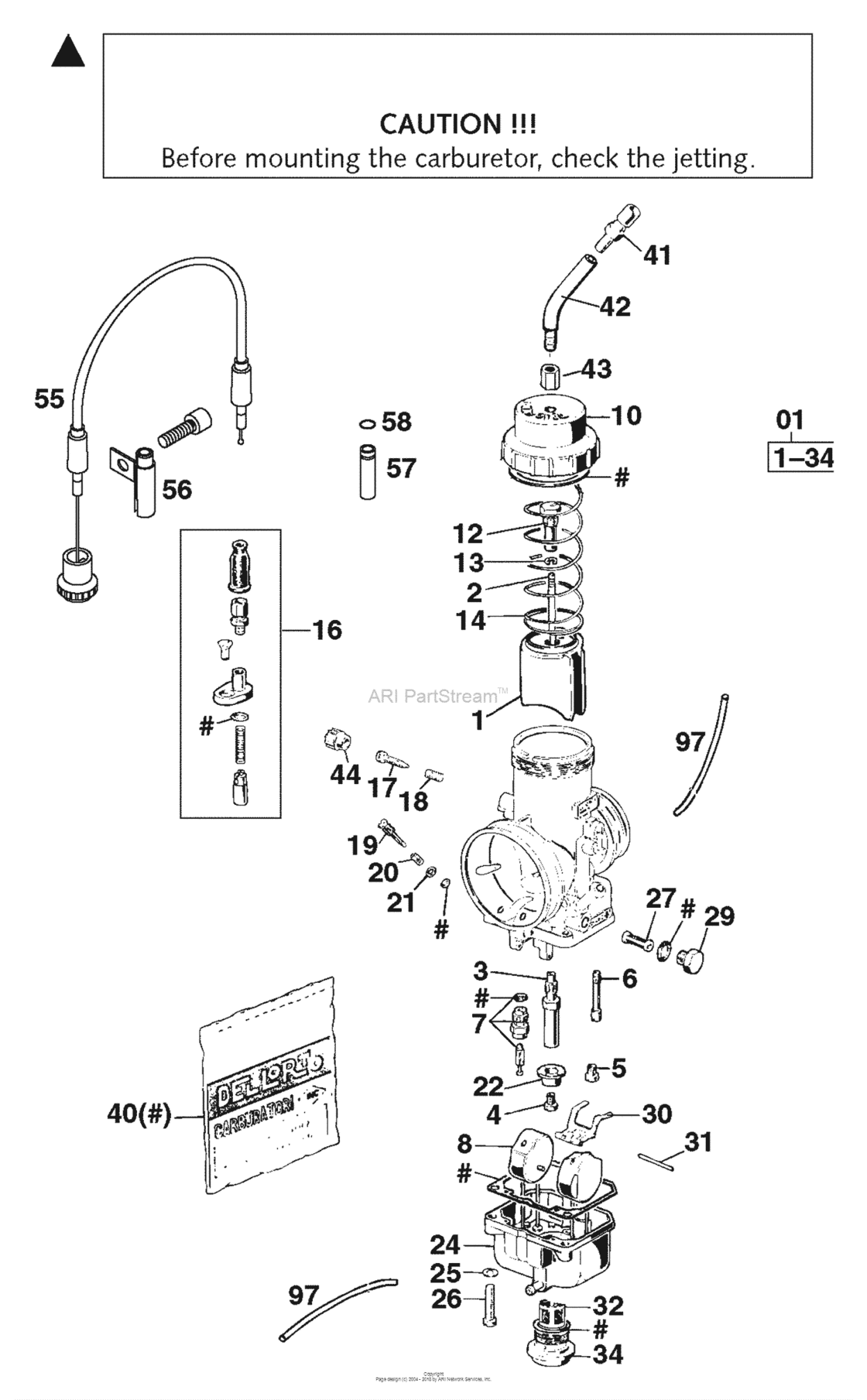

Carburetor Diagram KTM 540 540 LC4 SXC
- Year
- 1999
- Sales region
- US/EU
- Engine Capacity
- 540
- Model
- 540 LC4 SXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
58031401000
Carburetor Vhsb38Qs 081297'98
WS=8 |
58031401000 |
— | ||
|
1
|
1
58331035050 Throttle valve no.50WS=8 |
58331035050 |
US $164.76 |
||
|
2
|
2
49031134032 Jet needle k32WS=8 |
49031134032 |
US $21.22 |
||
|
3
|
3
58331021258
Needle Jet Fn 258
WS=8 |
58331021258 |
— | ||
|
3
|
3
58331021260
Needle jet fn 260
WS=8 |
58331021260 |
— | ||
|
3
|
3
58331021262 Needle jet fn 262WS=8 |
58331021262 |
US $25.02 |
||
|
4
|
4
57031523200 Main Jet 200WS=8 |
57031523200 |
US $7.34 |
||
|
4
|
4
57031523195
Main Jet
WS=8 |
57031523195 |
— | ||
|
4
|
4
57031523192
Main jet 192
WS=8 |
57031523192 |
— | ||
|
4
|
4
57031523190
Main Jet
WS=8 |
57031523190 |
— | ||
|
4
|
4
57031523188 Main jet 188WS=8 |
57031523188 |
US $6.27 |
||
|
4
|
4
57031523185 Main Jet 185WS=8 |
57031523185 |
US $5.81 |
||
|
4
|
4
57031523182 Main jet 182WS=8 |
57031523182 |
US $9.57 |
||
|
4
|
4
57031523180 Main Jet 180WS=8 |
57031523180 |
US $5.95 |
||
|
4
|
4
57031523178 Main jet 178WS=8 |
57031523178 |
US $6.02 |
||
|
4
|
4
57031523175 Main Jet 175WS=8 |
57031523175 |
US $6.56 |
||
|
4
|
4
57031523170
Main jet 170
WS=8 |
57031523170 |
— | ||
|
4
|
4
57031523168 Main jet 168WS=8 |
57031523168 |
US $5.87 |
||
|
4
|
4
57031523165
Main jet 165
WS=8 |
57031523165 |
— | ||
|
4
|
4
57031523162 Main jet 162WS=8 |
57031523162 |
US $5.03 |
||
|
4
|
4
57031523160
Main jet 160
WS=8 |
57031523160 |
— | ||
|
4
|
4
57031523155 Main jet 155WS=8 |
57031523155 |
US $5.87 |
||
|
4
|
4
57031523150 Main jet 150WS=8 |
57031523150 |
US $5.17 |
||
|
4
|
4
57031523148
Main jet 148
WS=8 |
57031523148 |
— | ||
|
4
|
4
57031523145 Main jet 145WS=8 |
57031523145 |
US $6.63 |
||
|
4
|
4
57031523142
Main Jet 142
WS=8 |
57031523142 |
— | ||
|
4
|
4
57031523140 Main jet 140WS=8 |
57031523140 |
US $5.73 |
||
|
4
|
4
57031523135
Main jet 135
WS=8 |
57031523135 |
— | ||
|
4
|
4
57031523132
Main Jet 132
WS=8 |
57031523132 |
— | ||
|
4
|
4
57031523130
Main Jet 130
WS=8 |
57031523130 |
— | ||
|
5
|
5
15131123033 Jet 33WS=8 |
15131123033 |
US $4.27 |
||
|
5
|
5
15131123035
Idle Jet
WS=8 |
15131123035 |
— | ||
|
5
|
5
15131123038
Jet 38
WS=8 |
15131123038 |
— | ||
|
5
|
5
15131123040 Jet 40WS=8 |
15131123040 |
US $7.16 |
||
|
6
|
6
49031151040
Starting jet 40
WS=8 |
49031151040 |
— | ||
|
6
|
6
49031151050
Starting Jet 50
WS=8 |
49031151050 |
— | ||
|
7
|
7
57231120350
Needle Valve
WS=8 |
57231120350 |
— | ||
|
8
|
8
49031109000
Float 3 3,5gramm
WS=8 |
49031109000 |
— | ||
|
10
|
10
50231127000
Cover for carburetor dell orto
WS=8 |
50231127000 |
— | ||
|
12
|
12
49031131000 Nipple For Throttle ValveWS=8 |
49031131000 |
US $38.23 |
||
|
13
|
13
0799025055 Tab Washer Din6799-Rs 2,5WS=8 |
0799025055 |
US $2.24 |
||
|
14
|
14
49031130000 Sliding Spring 1,25X230WS=8 |
49031130000 |
US $10.85 |
||
|
16
|
16
58331050044
Starting System Cpl. Vhsb
WS=8 |
58331050044 |
— | ||
|
17
|
17
50231120000
Adjusting screw m6
WS=8 |
50231120000 |
— | ||
|
18
|
18
50231150000
Spring for adjust.screw
WS=8 |
50231150000 |
— | ||
|
19
|
19
49031117000 Air adjustment screw m7x0,75WS=8 |
49031117000 |
US $4.71 |
||
|
20
|
20
57031515000
Spring Air Adjust.screw
WS=8 |
57031515000 |
— | ||
|
21
|
21
57031572000 Washer 3,3 x 5,8 x 0,5WS=8 |
57031572000 |
US $1.63 |
||
|
22
|
22
54531574000
Buffle
WS=8 |
54531574000 |
— | ||
|
24
|
24
58331011000
Float Chamber Vhsb38Qs
WS=8 |
58331011000 |
— | ||
|
25
|
25
0127050003
Lock Washer
WS=8 |
0127050003 |
— | ||
|
26
|
26
0084050203
Cyl.hd screw din0084-m 5x20a
WS=8 |
0084050203 |
— | ||
|
27
|
27
49031212100
Fuel filter pvc
WS=8 |
49031212100 |
— | ||
|
29
|
29
49031513100
Plug m8 ws=12
WS=8 |
49031513100 |
— | ||
|
30
|
30
49031106000
Float Arm
WS=8 |
49031106000 |
— | ||
|
31
|
31
49031108000
Float pin 2 x 27
WS=8 |
49031108000 |
— | ||
|
32
|
32
49031112000 Fuel filterWS=8 |
49031112000 |
US $4.23 |
||
|
34
|
34
50231114000
Plug m20x1 ws=19
WS=8 |
50231114000 |
— | ||
|
40
|
40
58331099000
Gasket Set Vhsb38Qs 540'98
WS=8 |
58331099000 |
— | ||
|
41
|
41
57031525100 Adjustment screw m6x0,75WS=8 |
57031525100 |
US $19.81 |
||
|
42
|
42
58031160000
Tube With Thread
WS=8 |
58031160000 |
— | ||
| replacement | |||||
|
42
|
42
58031160100 Tube for carburetor cpl. '99WS=8 |
58031160100 |
US $29.05 |
||
|
43
|
43
58031528000
Support bushing m6x0,75 ws=10
WS=8 |
58031528000 |
— | ||
|
44
|
44
57031519100
Knurled Cap
WS=8 |
57031519100 |
— | ||
|
55
|
55
58302095200
Choke Cable Cpl. Sx,sxc,sc'97
WS=8 |
58302095200 |
— | ||
|
56
|
56
58302095251 Sleeve For Choke CableWS=8 |
58302095251 |
US $15.67 |
||
|
57
|
57
50331029036 Slide stop l=36mmWS=8 |
50331029036 |
US $11.37 |
||
|
58
|
58
0770060020 O-ring 6,00x2,00 nbr 70WS=8 |
0770060020 |
US $1.60 |
||
|
97
|
97
52031137001 Pvc-hose 3x5mmWS=8 |
52031137001 |
US $6 |
||
