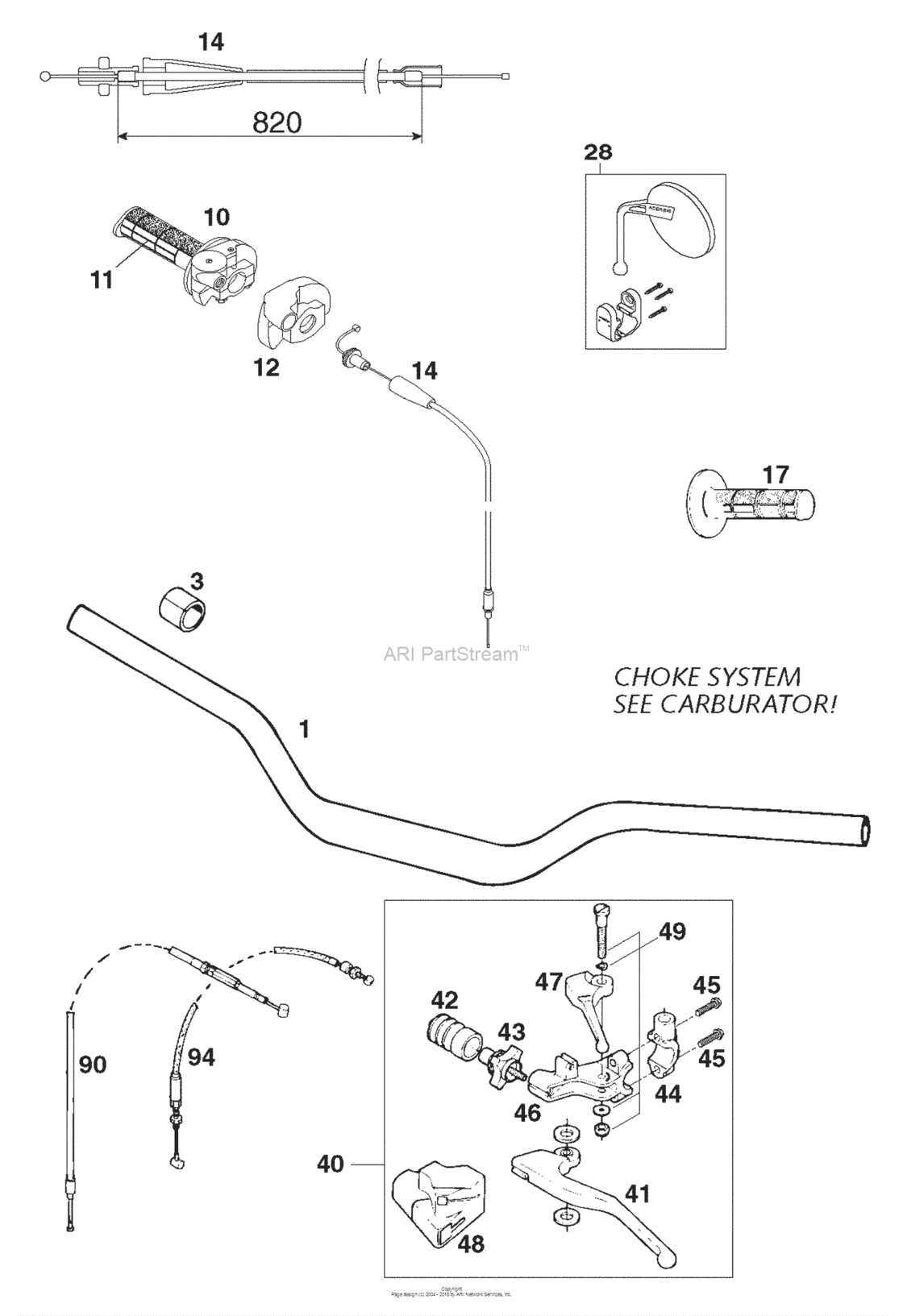

Handlebar, Controls Diagram KTM 540 540 SXC
- Year
- 1998
- Sales region
- US/EU
- Engine Capacity
- 540
- Model
- 540 SXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58302001300 Alu-handlebar sx,sc,advent.'97WS=8 |
58302001300 |
US $167.13 |
||
|
3
|
3
50202010000
Spacer bushing 22x28x22pvc
WS=8 |
50202010000 |
— | ||
|
10
|
10
58302010300 Throttle grip domino sxc'98WS=8 |
58302010300 |
US $111.33 |
||
|
11
|
11
50202003000
Gripp Set Half Waffle
WS=8 |
50202003000 |
— | ||
| replacement | |||||
|
11
|
11
50202021000 Gripp Set Half WaffleWS=8 |
50202021000 |
US $23.31 |
||
|
12
|
12
50302020000 Protection Cover '97WS=8 |
50302020000 |
US $16.75 |
||
|
14
|
14
58302091400
Throt.cable dom. 960mm sxc'98
WS=8 |
58302091400 |
— | ||
|
17
|
17
50202052000
Gripp Set Half Waffle
WS=8 |
50202052000 |
— | ||
| replacement | |||||
|
17
|
17
50202021000 Gripp Set Half WaffleWS=8 |
50202021000 |
US $23.31 |
||
|
28
|
28
5021204000030 Mirror l/s black acerbis '97WS=8 |
5021204000030 |
US $27.08 |
||
|
40
|
40
58302040100 Clutch lever assy cpl.dominoWS=8 |
58302040100 |
US $112.85 |
||
|
41
|
41
58302055000 Clutch Lever Loose Silver '97WS=8 |
58302055000 |
US $49.42 |
||
| replacement | |||||
|
41
|
41
58402042000 Clutch lever loose silver '97WS=8 |
58402042000 |
US $45.36 |
||
|
42
|
42
58302126000 Clutch lever boot '95WS=8 |
58302126000 |
US $3.91 |
||
|
43
|
43
58302043000 Adjustment Screw Cpl.m7WS=8 |
58302043000 |
US $22.42 |
||
|
44
|
44
58302044000 Clamp mirrow m10x1,25WS=8 |
58302044000 |
US $11.41 |
||
|
45
|
45
0015060253
Hh Collar Screw M6X25 Tx30
WS=8 |
0015060253 |
— | ||
| replacement | |||||
|
45
|
45
0025060256 Hh collar screw m6x25 tx30WS=8 |
0025060256 |
US $2.45 |
||
|
46
|
46
58302023000 Joint dominoWS=8 |
58302023000 |
US $51.48 |
||
|
47
|
47
58302047000 Decompression lever looseWS=8 |
58302047000 |
US $12.19 |
||
|
48
|
48
58302048000 Protecting coverWS=8 |
58302048000 |
US $8.30 |
||
|
49
|
49
58302049000 Lever screw cpl.WS=8 |
58302049000 |
US $6 |
||
|
90
|
90
50202090200 Clutch CableWS=8 |
50202090200 |
US $40.48 |
||
| replacement | |||||
|
90
|
90
58402090000 Clutch cable 4t l=1115mm '99WS=8 |
58402090000 |
US $36.65 |
||
|
94
|
94
58302094000 Decompression cable lc4 '93WS=8 |
58302094000 |
US $37.81 |
||
