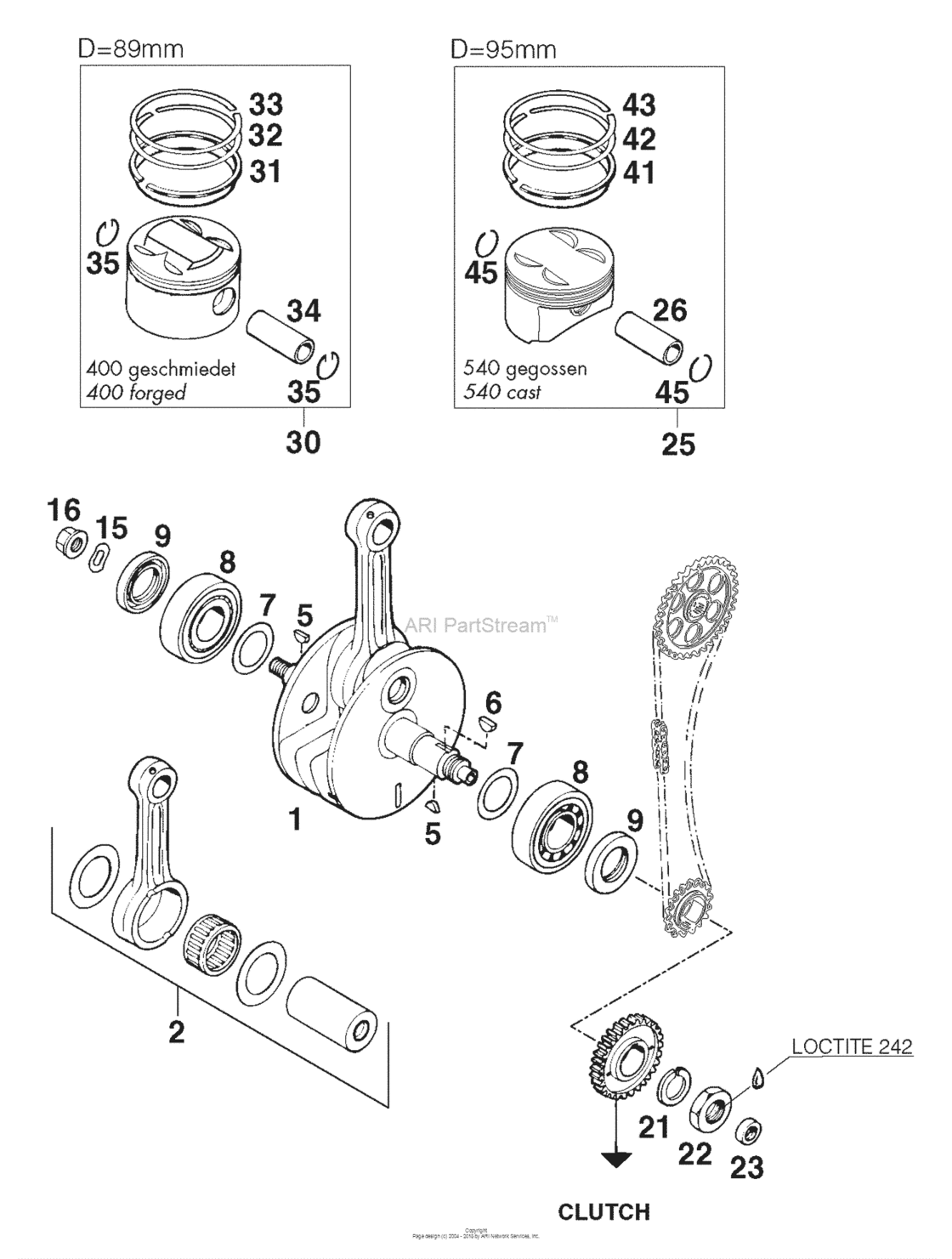

Crankshaft, Piston Diagram KTM 540 540 SXC
- Year
- 1998
- Sales region
- US/EU
- Engine Capacity
- 540
- Model
- 540 SXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57630018000
Crankshaft cpl. 400 lc4 '97
WS=8 |
57630018000 |
— | ||
|
1
|
1
58330018000
Crankshaft Cpl, 620 Lc4
WS=8 |
58330018000 |
— | ||
| replacement | |||||
|
1
|
1
58330018100 Crankshaft cpl. 540/620 lc4'99WS=8 |
58330018100 |
US $1,017.20 |
||
|
2
|
2
58030015044 Connecting rod repair set lc4WS=8 |
58030015044 |
US $521.12 |
||
|
2
|
2
58330015044 Con.rod Repair KitWS=8 |
58330015044 |
US $447.80 |
||
| replacement | |||||
|
2
|
2
58430015044 Con.rod repair kitWS=8 |
58430015044 |
US $369.73 |
||
|
5
|
5
0888030050 Woodruff Key Din6888-3X5X13WS=8 |
0888030050 |
US $2.60 |
||
|
6
|
6
6946005 Woodruff Key 5X6,5 HardedWS=8 |
6946005 |
US $0.92 |
||
|
7
|
7
56030081000 Thrust washer 30,5x45x0,10WS=8 |
56030081000 |
US $0.43 |
||
|
7
|
7
56030081100 Thrust washer 30,7x47x0,15WS=8 |
56030081100 |
US $0.94 |
||
|
7
|
7
56030081200 Thrust washer 30,5x45x0,30WS=8 |
56030081200 |
US $1.21 |
||
|
8
|
8
58030082000 Cyl.roller bearing nj 306 c3WS=8 |
58030082000 |
US $118.75 |
||
|
9
|
9
0760304771 Sh.seal Ring 30X47X7 Bsl VitonWS=8 |
0760304771 |
US $27.30 |
||
| replacement | |||||
|
9
|
9
0760304772 Sh.seal Ring 30X47X7 Bsl VitonWS=8 |
0760304772 |
US $26.23 |
||
|
15
|
15
0137120000 Spring washer din0137-b12WS=8 |
0137120000 |
US $0.39 |
||
|
16
|
16
51030028100 Collar Nut M12X1 Left Ws=17WS=8 |
51030028100 |
US $10.35 |
||
|
21
|
21
58030019000 Locking ring vsk 20WS=8 |
58030019000 |
US $1.70 |
||
|
22
|
22
0936200155 Hexagon nut din0936-m20x1,5WS=8 |
0936200155 |
US $8.52 |
||
|
23
|
23
0760122270 Shaft Seal Ring 12 X 22 X 7 BWS=8 |
0760122270 |
US $15.86 |
||
|
25
|
25
57630007100I
Piston i 95mm cpl. cast '96
WS=8 |
57630007100I |
— | ||
|
25
|
25
57630007100II
Piston ii 95mm cpl. cast '96
WS=8 |
57630007100II |
— | ||
|
26
|
26
57630033100 Piston bolt 22 x 13 x 56,3WS=8 |
57630033100 |
US $48.40 |
||
|
30
|
30
57530007000I
Piston I 89 Mm Cpl. Forged
WS=8 |
57530007000I |
— | ||
|
30
|
30
57530007000II
Piston Ii 89Mm Cpl. Forged
WS=8 |
57530007000II |
— | ||
|
31
|
31
57530031000 Oil scraper ring 89mmWS=8 |
57530031000 |
US $24.31 |
||
|
32
|
32
57530132000
Tapered compr.piston ring 89mm
WS=8 |
57530132000 |
— | ||
|
33
|
33
57530032000 Rectangular ring 89mmWS=8 |
57530032000 |
US $46.75 |
||
|
34
|
34
58030033000 Piston pin 22 x 13 x 54,2WS=8 |
58030033000 |
US $55.98 |
||
|
35
|
35
58030074000
Circlip a 22 x 1,5
WS=8 |
58030074000 |
— | ||
|
41
|
41
58030631000 Oil scraper ring 95mmWS=8 |
58030631000 |
US $27.76 |
||
|
42
|
42
58030732000 Tapered compr.piston ring 95mmWS=8 |
58030732000 |
US $25.62 |
||
|
43
|
43
58030632000 Rectangular ring 95mmWS=8 |
58030632000 |
US $62.66 |
||
|
45
|
45
58030074100 Circlip c 22 x 1,5WS=8 |
58030074100 |
US $2.14 |
||
